Baldor Reliance Super-E 100HP 230/460V 1785RPM 3PH 405T TEFC AC Motor NEW
Baldor Reliance Super-E 100HP 230/460V 1785RPM 3PH 405T TEFC AC Motor NEW
Baldor Reliance Super-E EM2553T-CI 100 HP 230/460V 1785 RPM 3-Phase Industrial Electric Motor – New Open Box
For sale is a Baldor Reliance Super-E EM2553T-CI premium-efficiency industrial AC motor. This unit is new, unused, and out of the original box. It has been stored in an industrial/warehouse environment and may show minor cosmetic marks, dust, scuffs, or handling wear from storage and transportation. Please review all photos for the exact condition of the motor you will receive.
The motor's original manufacturer nameplate is intact and clearly identifies the unit as Catalog No. EM2553T-CI, Spec No. P40G297.
Nameplate Specifications:
- Manufacturer: Baldor Reliance
- Series: Super-E
- Catalog / MPN: EM2553T-CI
- Spec No.: P40G297
- Horsepower: 100 HP
- Voltage: 230/460 VAC
- Phase: 3 Phase
- Frequency: 60 Hz
- Speed: 1785 RPM
- Full Load Amps: 230/115 A
- NEMA Frame: 404T
- Enclosure: DP / Open Drip Proof
- Duty Rating: Continuous
- Service Factor: 1.15
- NEMA Design: B
- NEMA Code: G
- Insulation Class: F
- Ambient Rating: 40°C
- Power Factor: 85%
- NEMA Nominal Efficiency: 95.4%
- Guaranteed Efficiency: 95.0%
- Drive-End Bearing: 80BC03J30X
- Opposite Drive-End Bearing: 80BC03J30X
- Nameplate Motor Weight: 1,038 lbs.
- Serial No.: A2411132027
- Made in USA
Rated Load (HP): 100 HP
NEMA Design Letter: Design B (General Purpose)
Special Motor Construction: Premium Efficiency
AC Frequency Rating: 60 Hz
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Base RPM: 1785 RPM

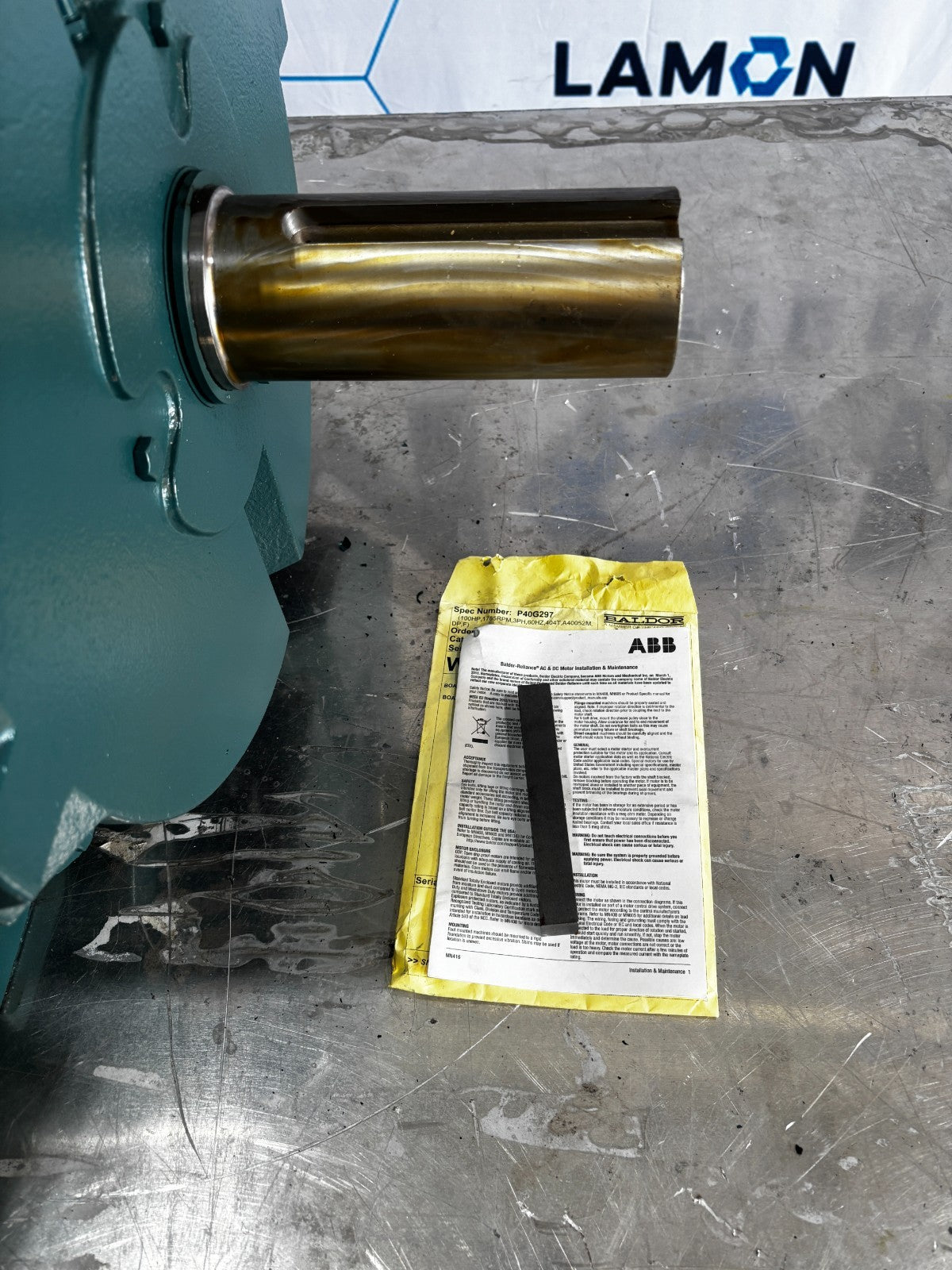

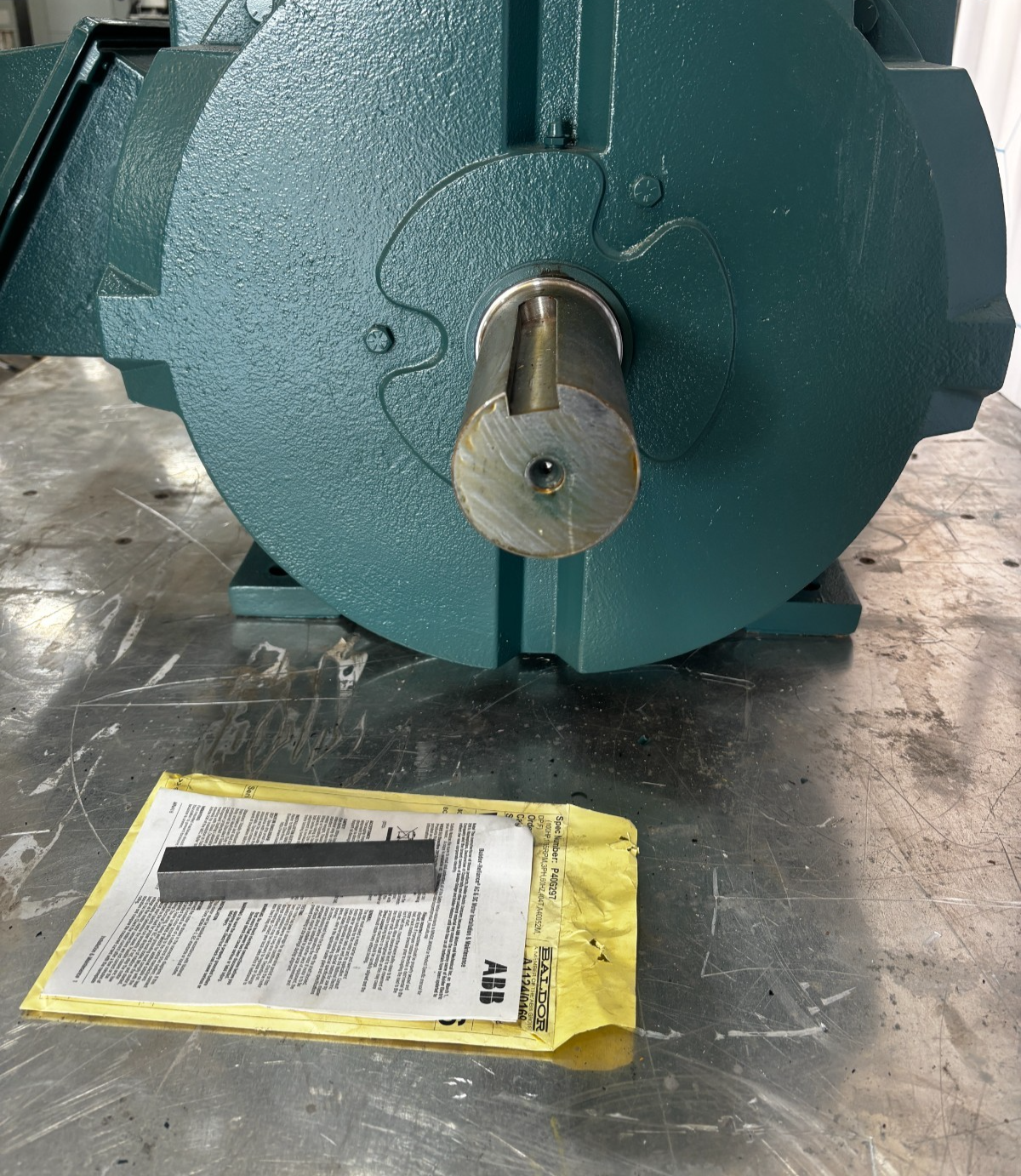

Shaft Type: Keyed
AC Motor Type: Induction/Asynchronous
Shaft Diameter: 2 7/8 in
MPN: EM2553T-CI
Insulation Class: F (Max 311°F)
Mounting Type: Base-Mounted
Brand: Baldor
Reversible/Non-Reversible: Reversible
Current Type: AC
Unit Type: Unit
Service Factor: 1.15
Nominal Rated Input Voltage: 460 V
Model: EM2553T-CI
AC Phase: Three Phase
NEMA Frame Suffix: T
Unit Quantity: 1
