Bell & Gossett C176602-U2K31 1510 BF 8.75 10HP 330 GPM Centrifugal Pump

Bell & Gossett Series 1510 Base-Mounted Centrifugal Pump Assembly – 10 HP – Unused

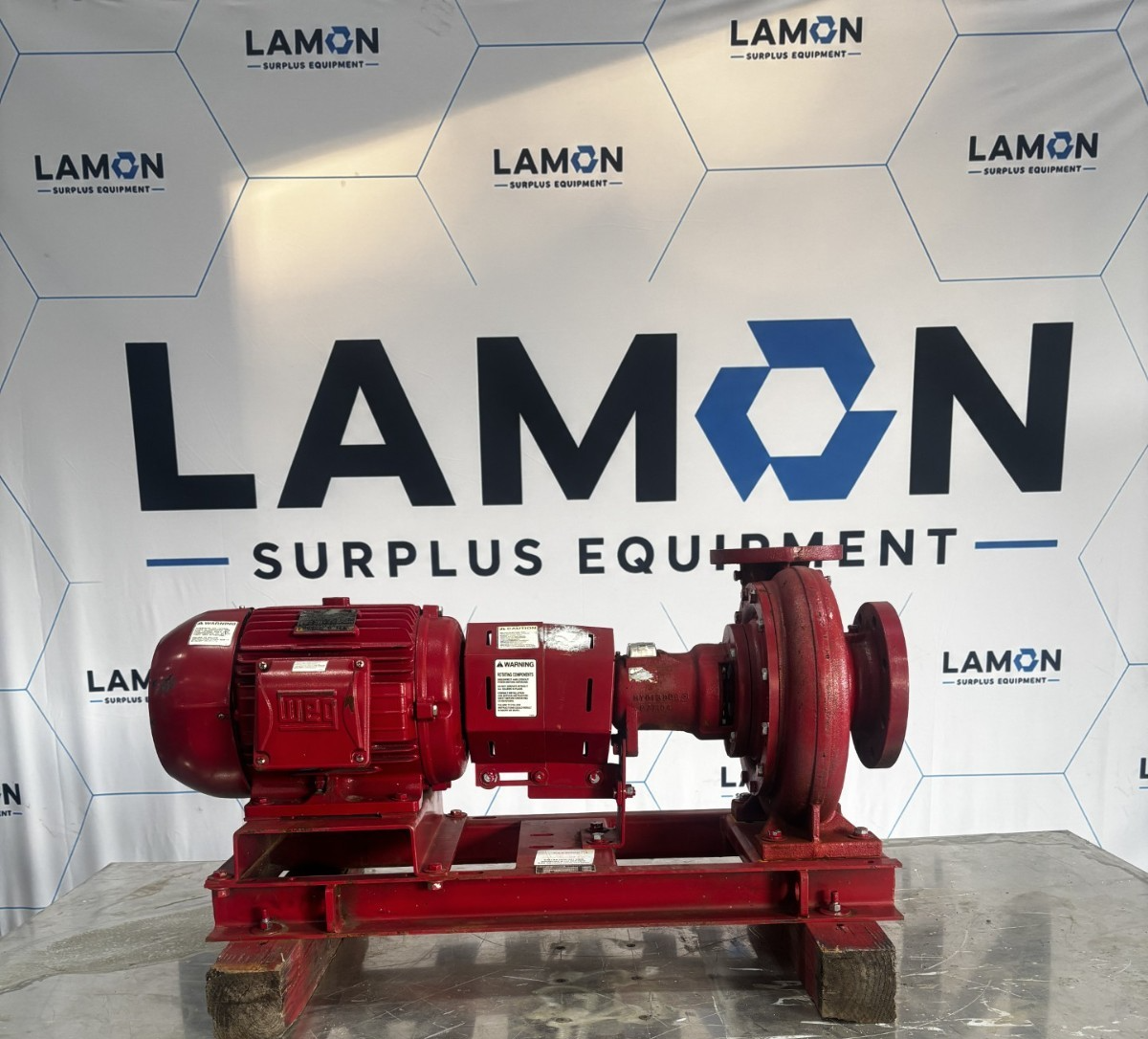

New unused Bell & Gossett industrial centrifugal pump assembly equipped with a WEG W22 NEMA Premium three-phase electric motor.

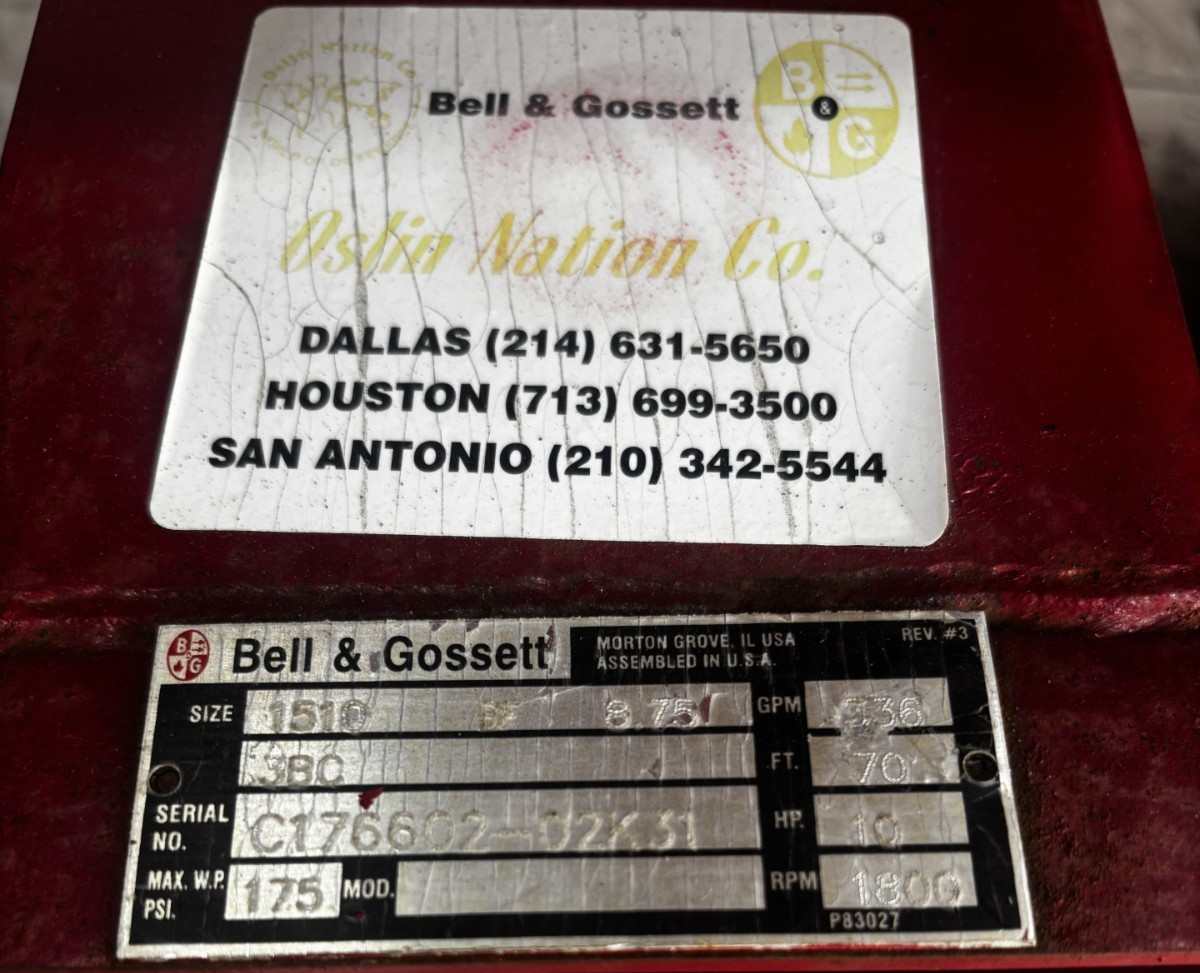

The Bell & Gossett nameplate identifies the pump as Series 1510, BF 8.75, MPN C176602-U2K31. Nameplate ratings show 330 GPM, 70 ft. head, 10 HP, 1800 RPM, and 175 PSI maximum working pressure.

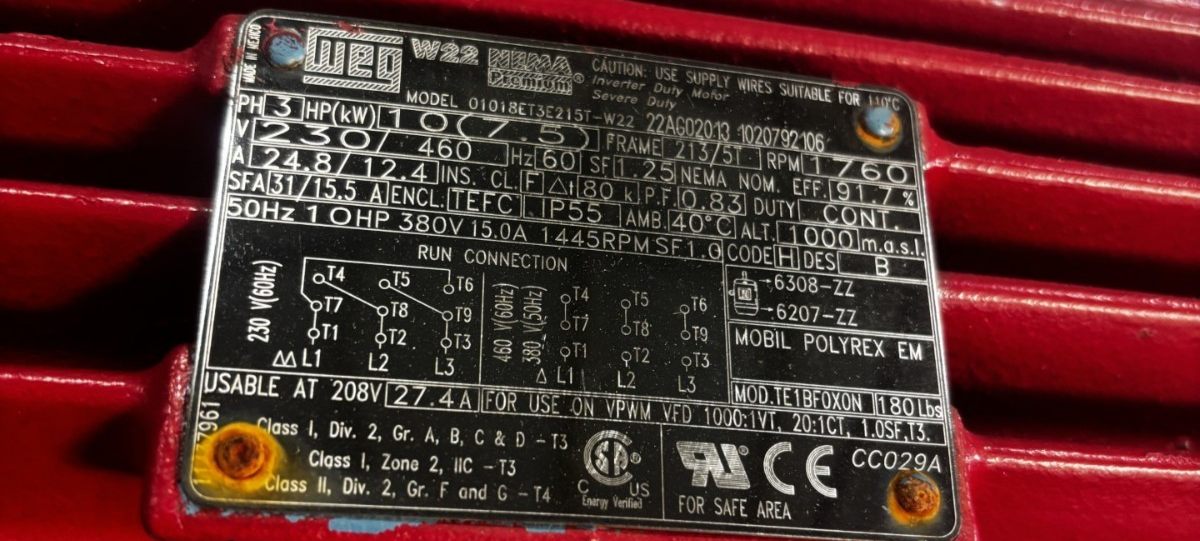

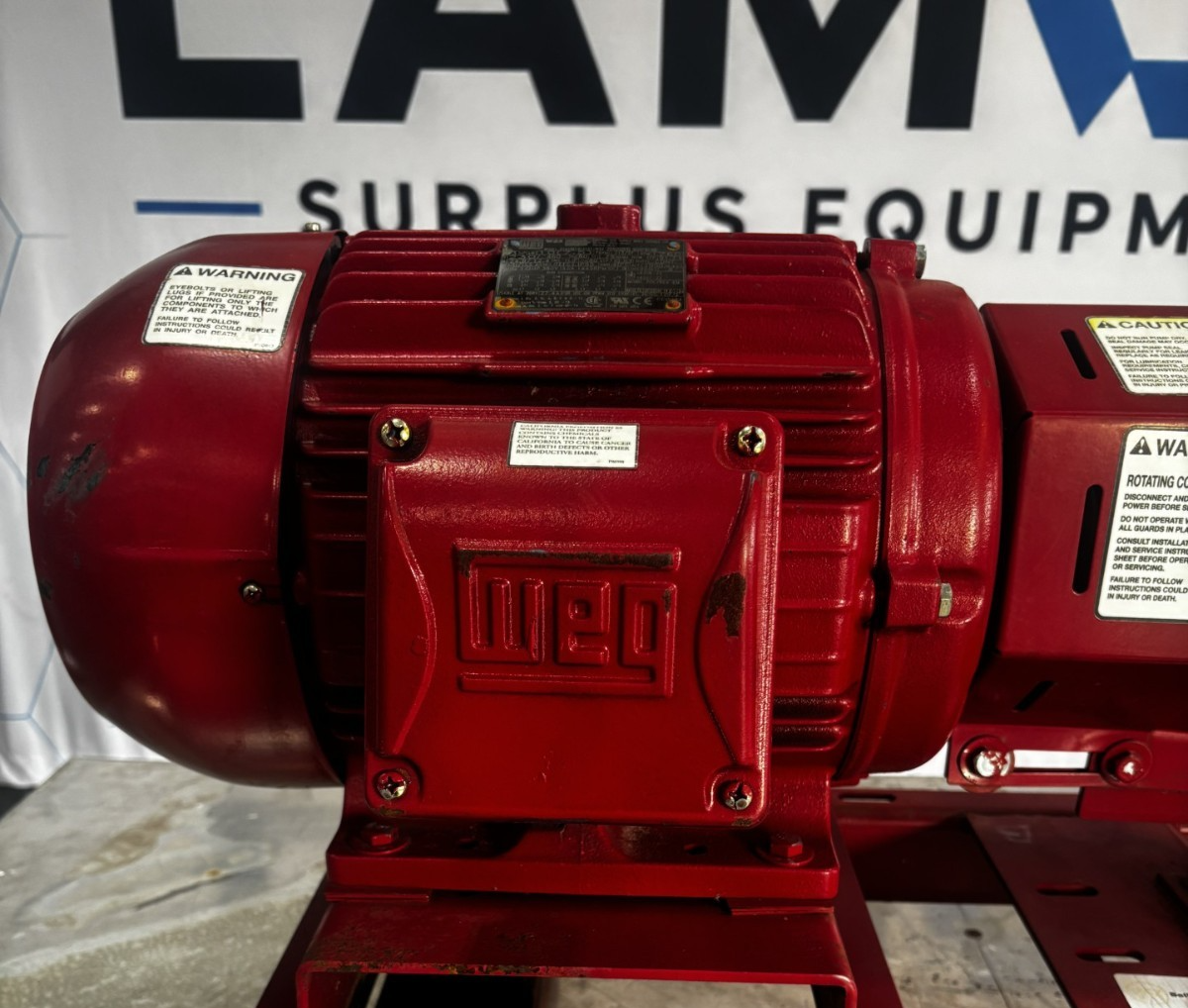

The installed WEG W22 motor is rated at 10 HP / 7.5 kW, 230/460 VAC, 3 phase, 60 Hz, and 1760 RPM. The motor is a continuous-duty TEFC industrial motor with a 1.25 service factor.

Pump Specifications

• Brand: Bell & Gossett
• MPN: C176602-U2K31
• Series: 1510
• Size: BF 8.75
• Pump Type: End-Suction Centrifugal Pump
• Rated Flow: 330 GPM
• Rated Head: 70 ft
• Rated Power: 10 HP
• Pump Speed: 1800 RPM
• Maximum Working Pressure: 175 PSI
• Mounting: Base Mounted
• Housing Construction: Cast Iron
• Assembly Location: USA

Motor Specifications

• Motor Brand: WEG
• Motor Series: W22
• Motor Model: 01018ET3E215T-W22
• Rated Power: 10 HP / 7.5 kW
• Voltage: 230/460 V
• Phase: 3 Phase
• Frequency: 60 Hz
• Motor Speed: 1760 RPM
• Full Load Amps: 24.8/12.4 A
• Frame: 215T
• Service Factor: 1.25
• Enclosure: TEFC
• IP Rating: IP55
• Insulation Class: F
• Duty: Continuous
• Power Factor: 0.83
• NEMA Nominal Efficiency: 91.7%

Included

• Bell & Gossett Series 1510 centrifugal pump
• WEG W22 10 HP motor
• Shaft coupling
• Coupling guard
• Steel mounting base

This is an unused surplus industrial pump assembly. Cosmetic wear from storage and handling is visible but does not indicate previous operational use. Item pictured is the actual unit being sold.
