Benshaw RB2-1-S-240A-15C RediStart 240A Solid State Soft Starter 600V
Benshaw RB2-1-S-240A-15C RediStart 240A Solid State Soft Starter 600V
Benshaw / Curtiss-Wright RediStart solid state motor starter with MX² control.
This unit is identified by the factory nameplate as Model RB2-1-S-240A-15C and is rated for 240 amps full-load continuous duty, 3-phase, up to 600 VAC, 50/60 Hz.

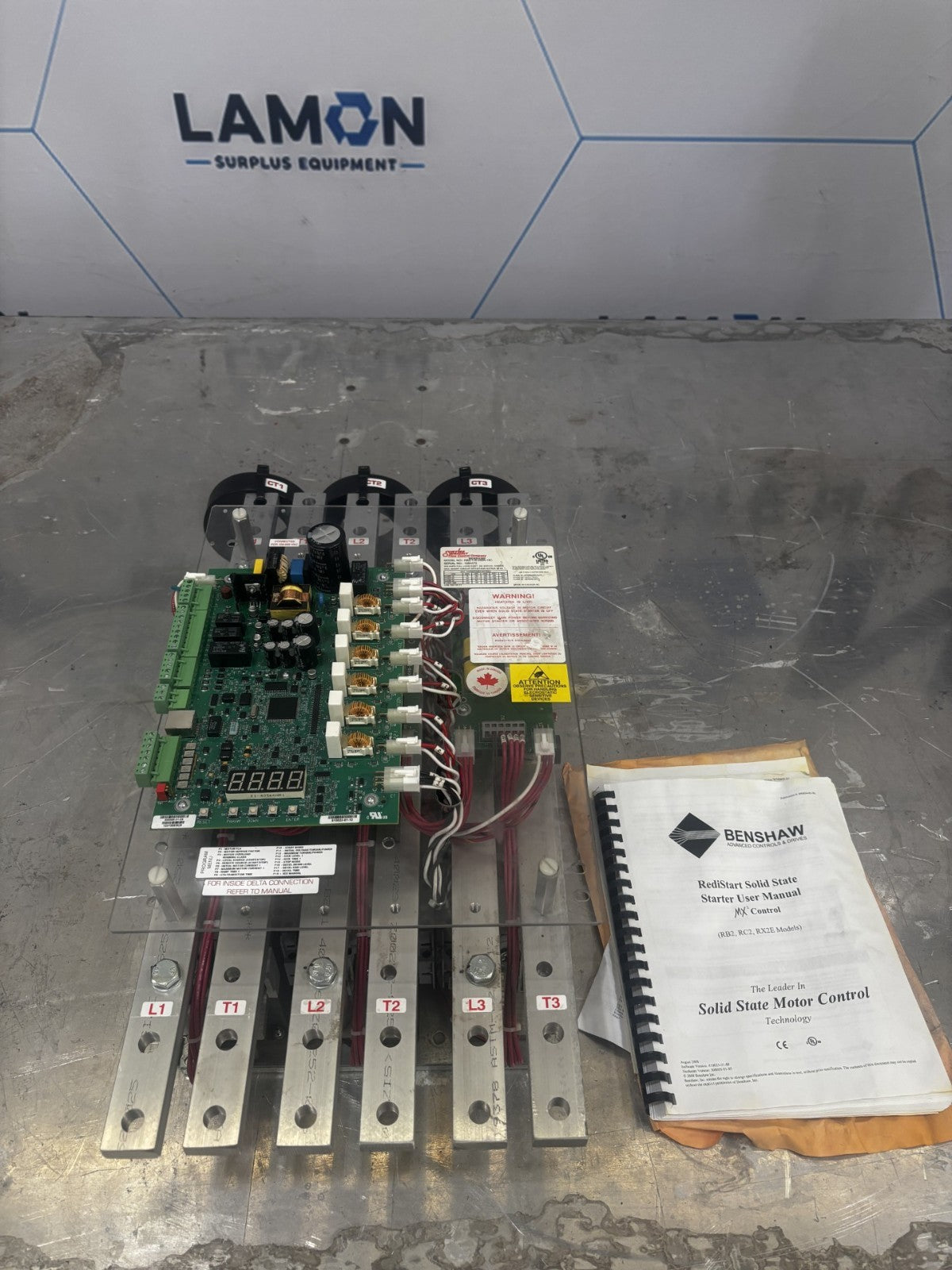

The starter is supplied as the complete assembly shown in the photos, including control electronics, power components, current transformers, heatsink assembly, contactor, bus connections, and Benshaw RediStart MX² Control user manual.
Specifications
- Manufacturer: Benshaw
- Product Line: RediStart
- Type: Solid State Motor Starter / Soft Starter
- Model: RB2-1-S-240A-15C
- MPN: RB2-1-S-240A-15C
- Serial Number: 1301472
- Full Load Current: 240 Amps Continuous
- Phase: 3-Phase
- Maximum Voltage: 600 VAC
- Frequency: 50/60 Hz
- Maximum Short Circuit Withstand Rating: 30 kA
- Control: Benshaw MX²

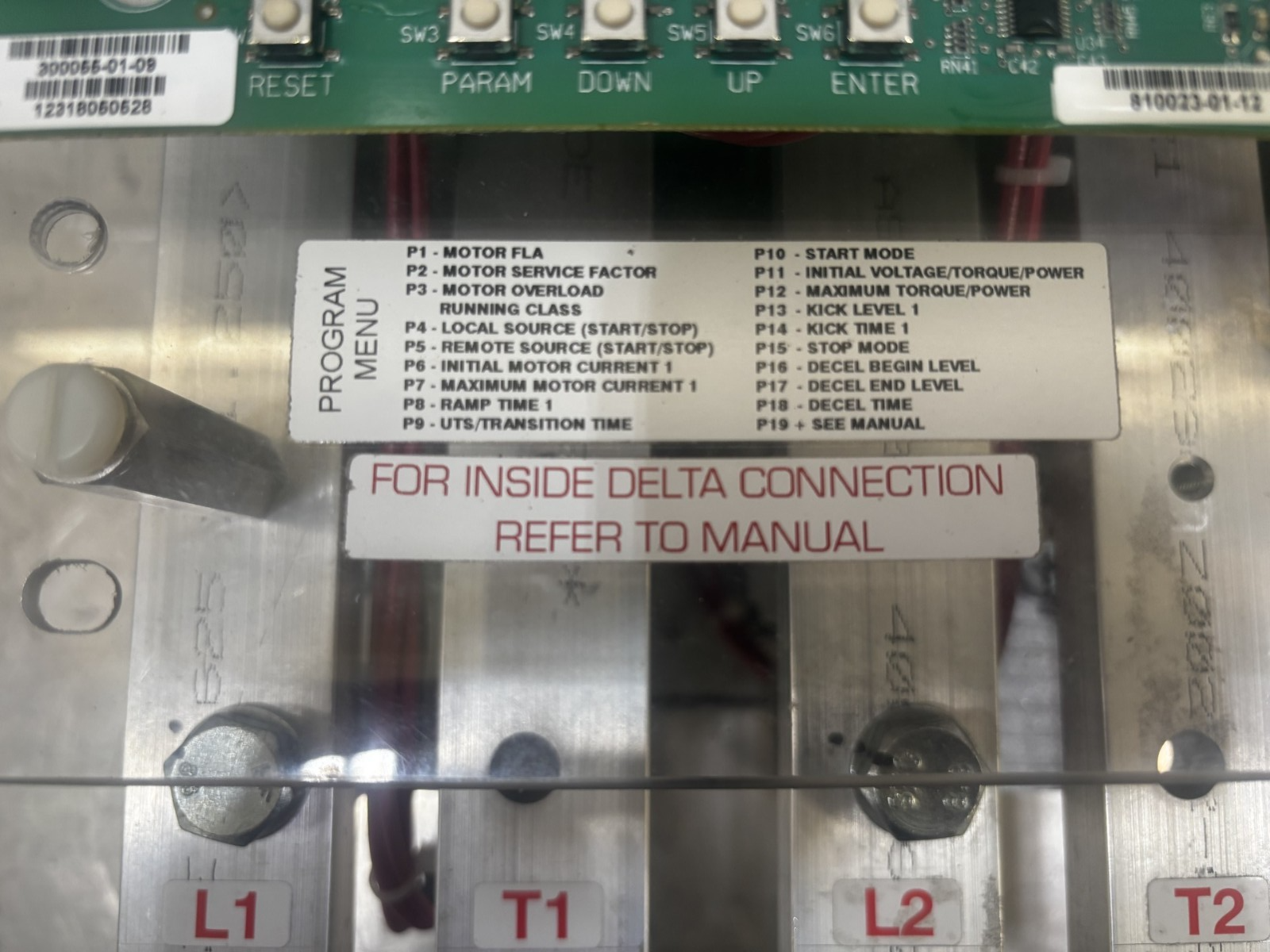

- Connection: Inside Delta configuration indicated on unit
- Country of Manufacture: Canada
- Certification: UL Listed

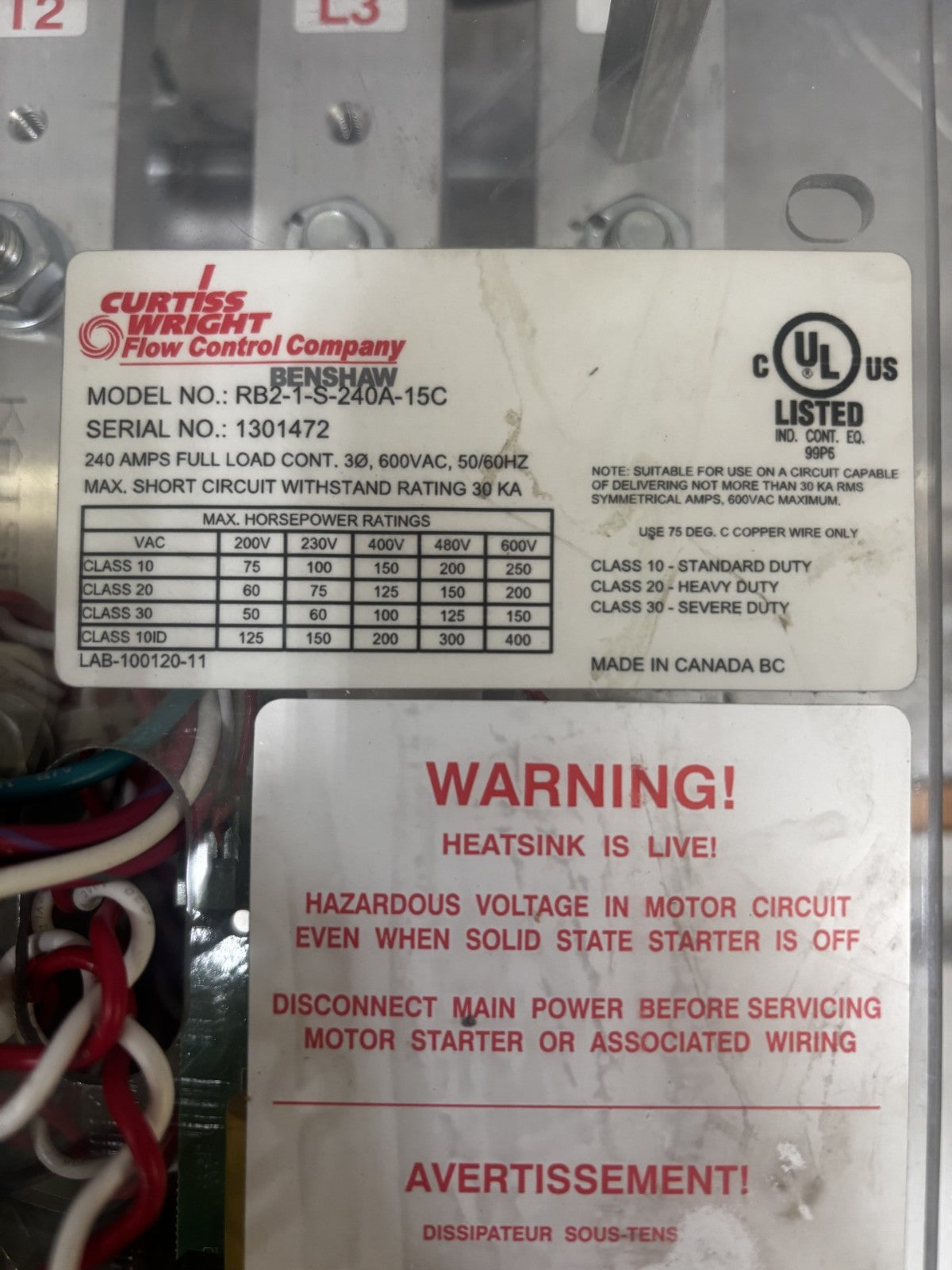

Maximum Horsepower Ratings Shown on Nameplate
| Duty Class | 200V | 230V | 400V | 480V | 600V |
|---|---|---|---|---|---|
| Class 10 | 75 HP | 100 HP | 150 HP | 200 HP | 250 HP |
| Class 20 | 60 HP | 75 HP | 125 HP | 150 HP | 200 HP |
| Class 30 | 50 HP | 60 HP | 100 HP | 125 HP | 150 HP |
| Class 10ID | 125 HP | 150 HP | 200 HP | 300 HP | 400 HP |
Duty classifications shown on the factory label:
- Class 10 – Standard Duty
- Class 20 – Heavy Duty
- Class 30 – Severe Duty
Included
- Benshaw RB2-1-S-240A-15C solid state starter assembly

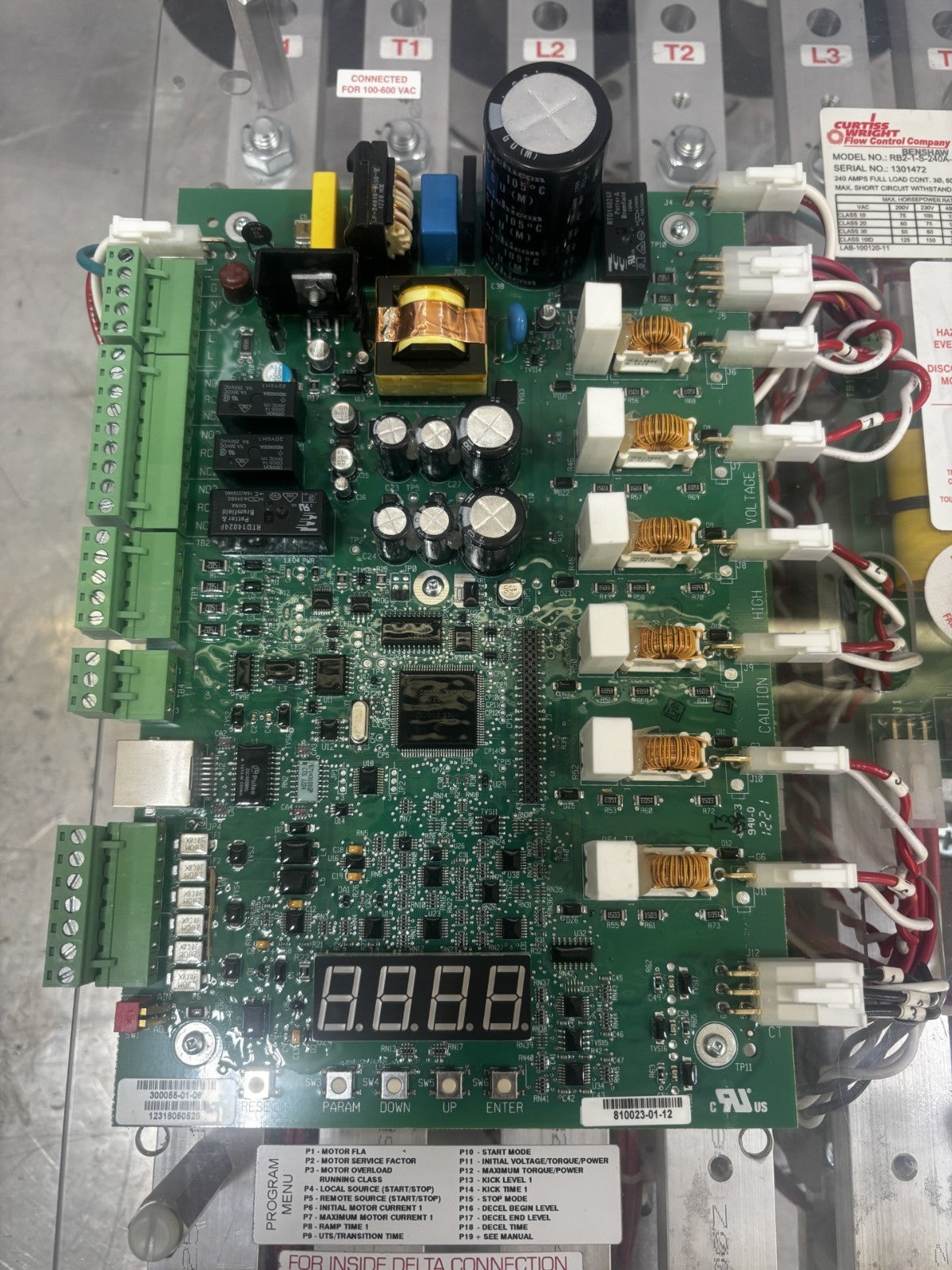

- Benshaw MX² control board

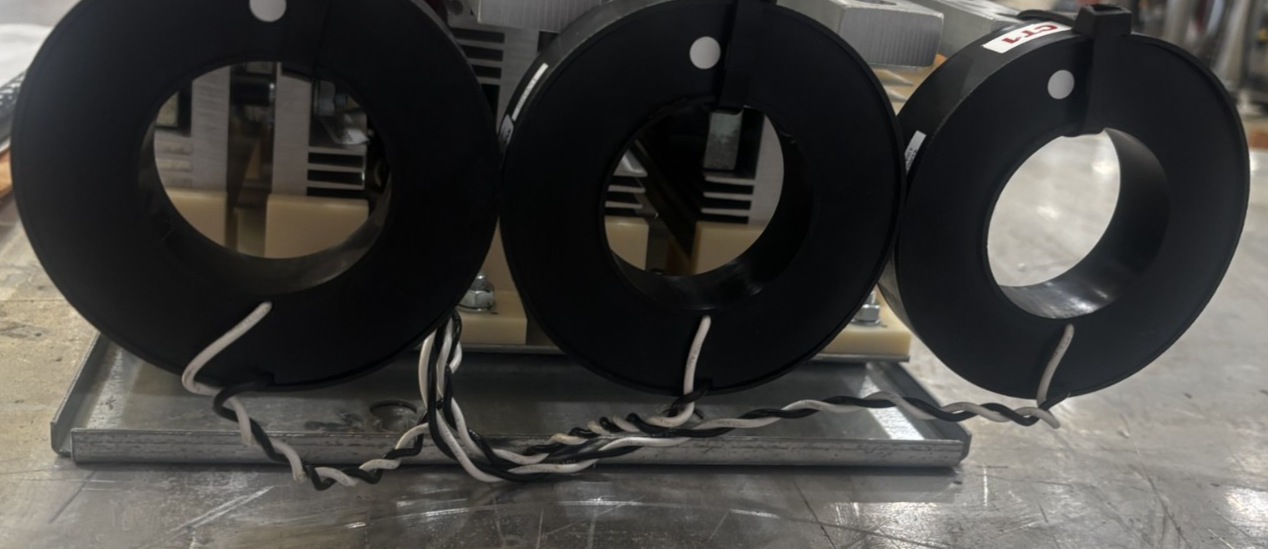

- Current transformers

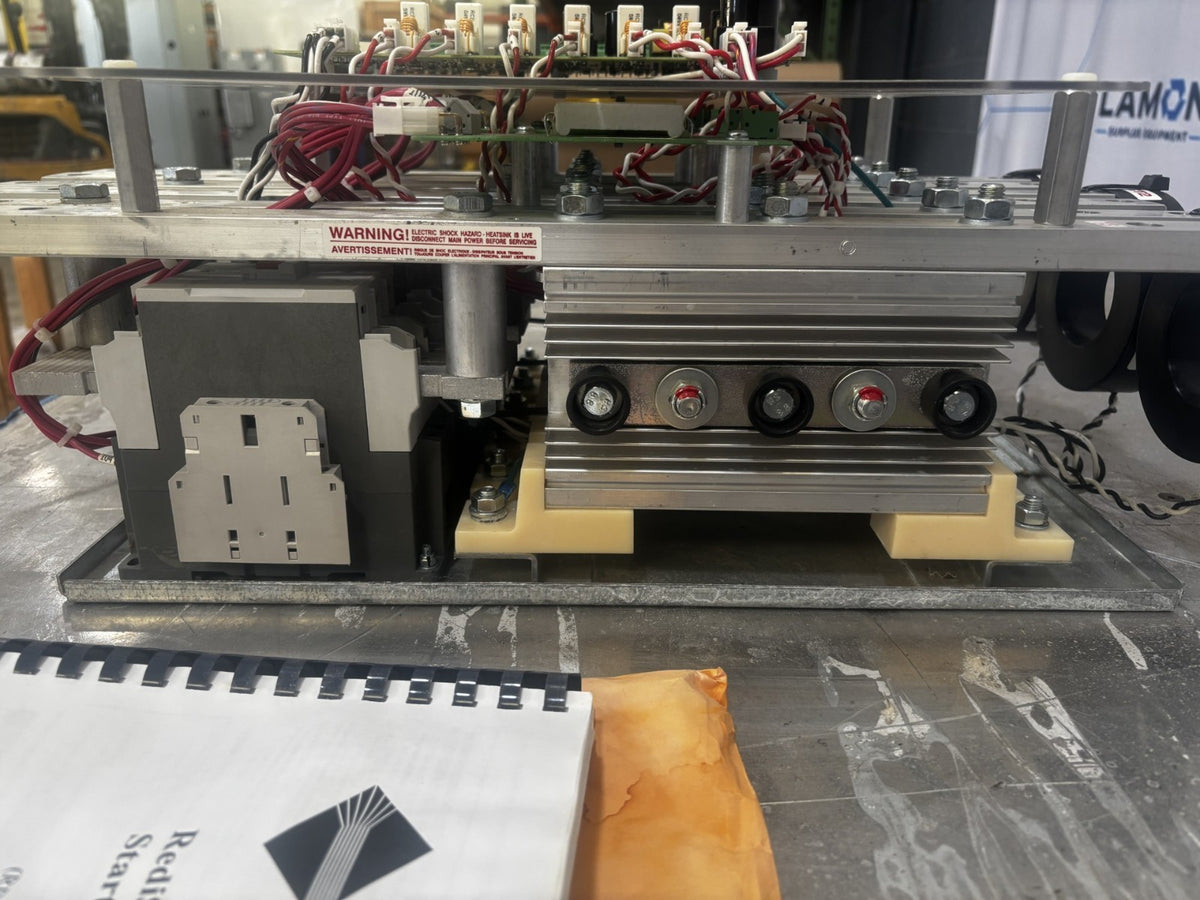

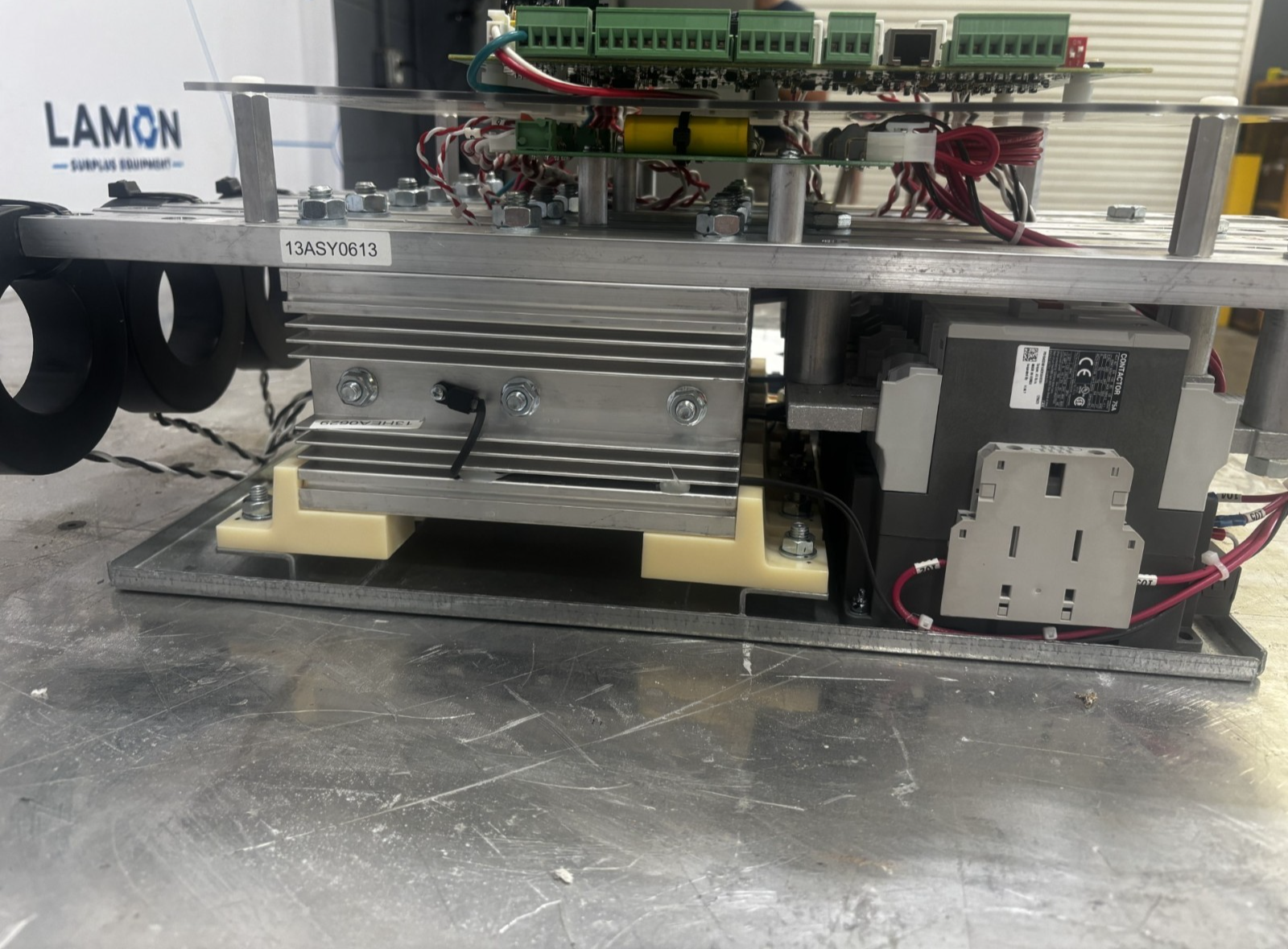

- Power/heatsink assembly

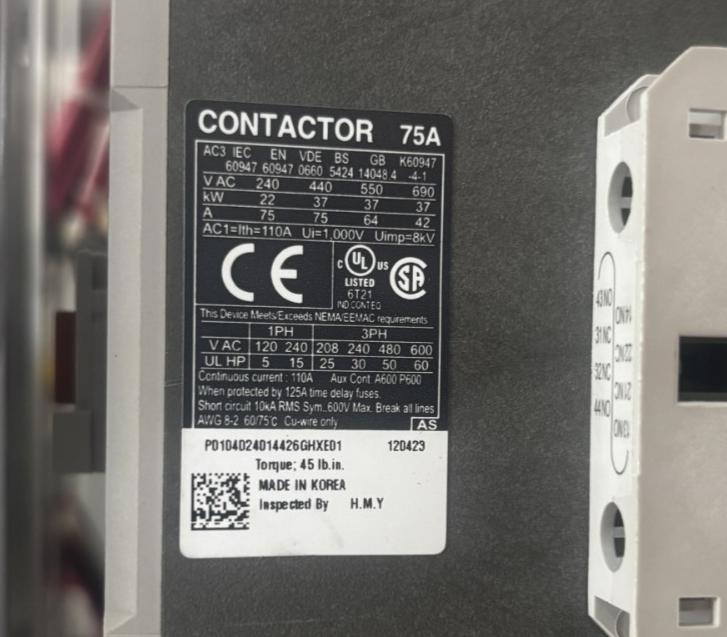

- Contactor and associated wiring/components

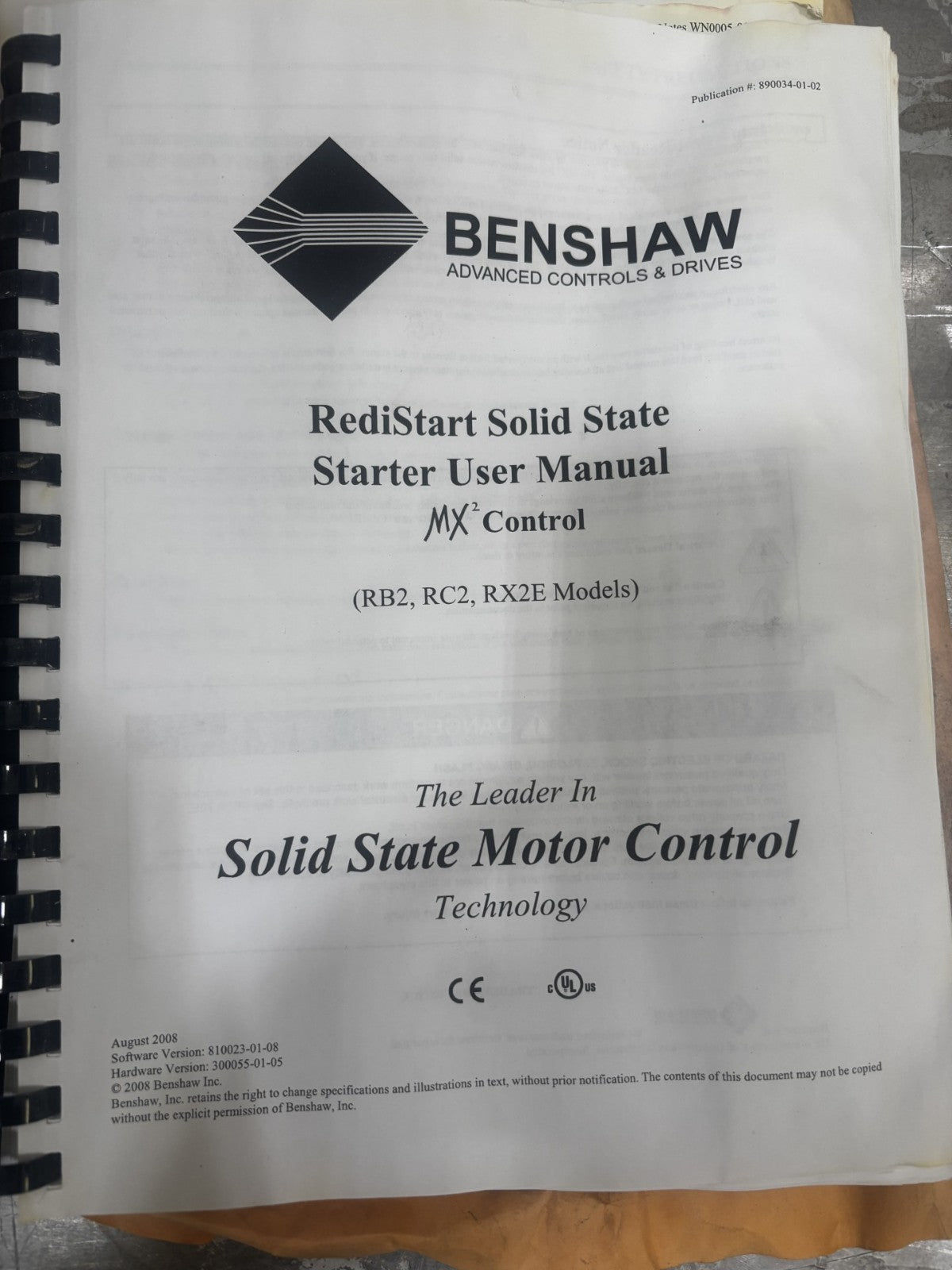

- Benshaw RediStart Solid State Starter MX² Control User Manual
- Everything shown in the photos
Brand: Benshaw
Unit Type: Unit
Model: RB2-1-S-240A-15C
Input Voltage: 600 V
MPN: RB2-1-S-240A-15C
Unit Quantity: 1
Country of Origin: United States
Rated Load: 240 A
