Flowserve Durco MK3 Lo-Flo Centrifugal Pump 5HP WEG 460V 3PH 3500 RPM

Flowserve Durco Mark 3 Lo-Flo (MK3 LO-FLO) centrifugal process pump assembly powered by a WEG W22 NEMA Premium 5 HP electric motor.

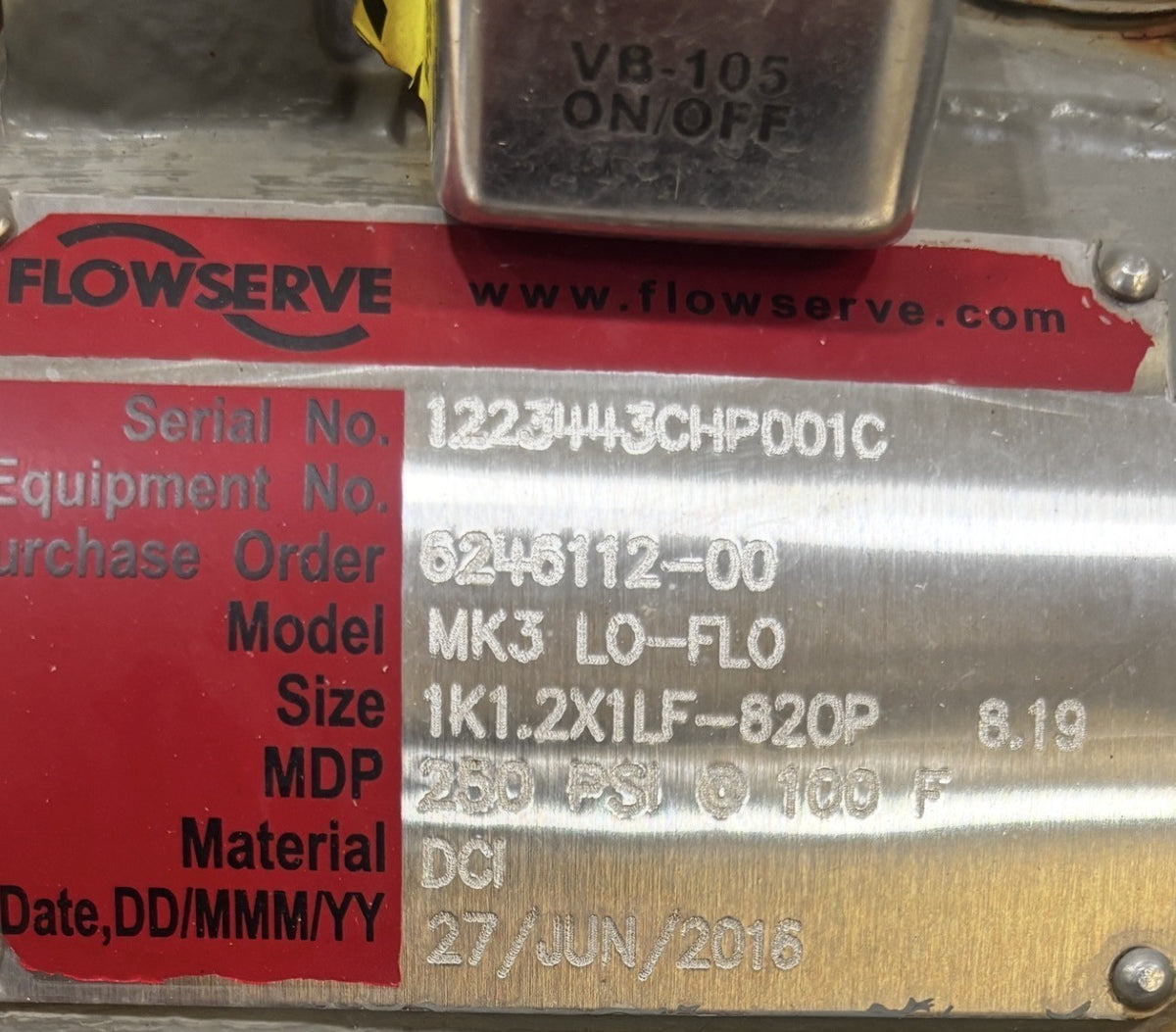

The Flowserve pump identification plate is clearly marked MK3 LO-FLO with size 1K1.2X1LF-820P and a maximum design pressure of 250 PSI @ 100°F. The pump material is identified on the nameplate as DCI.

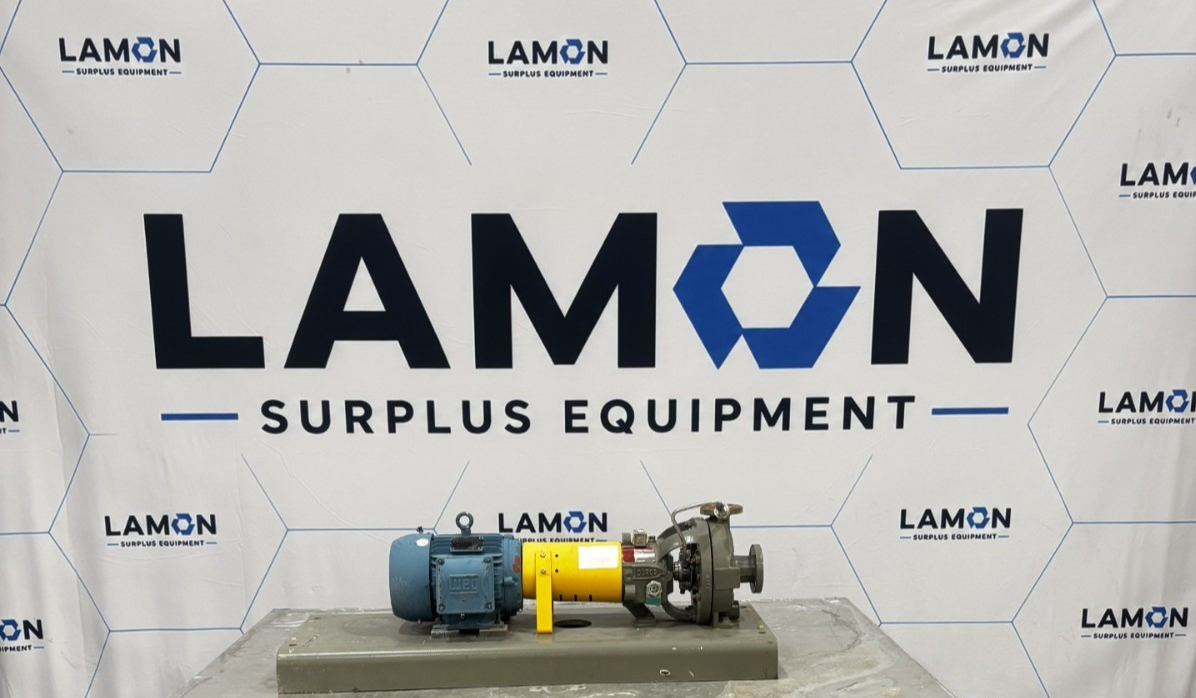

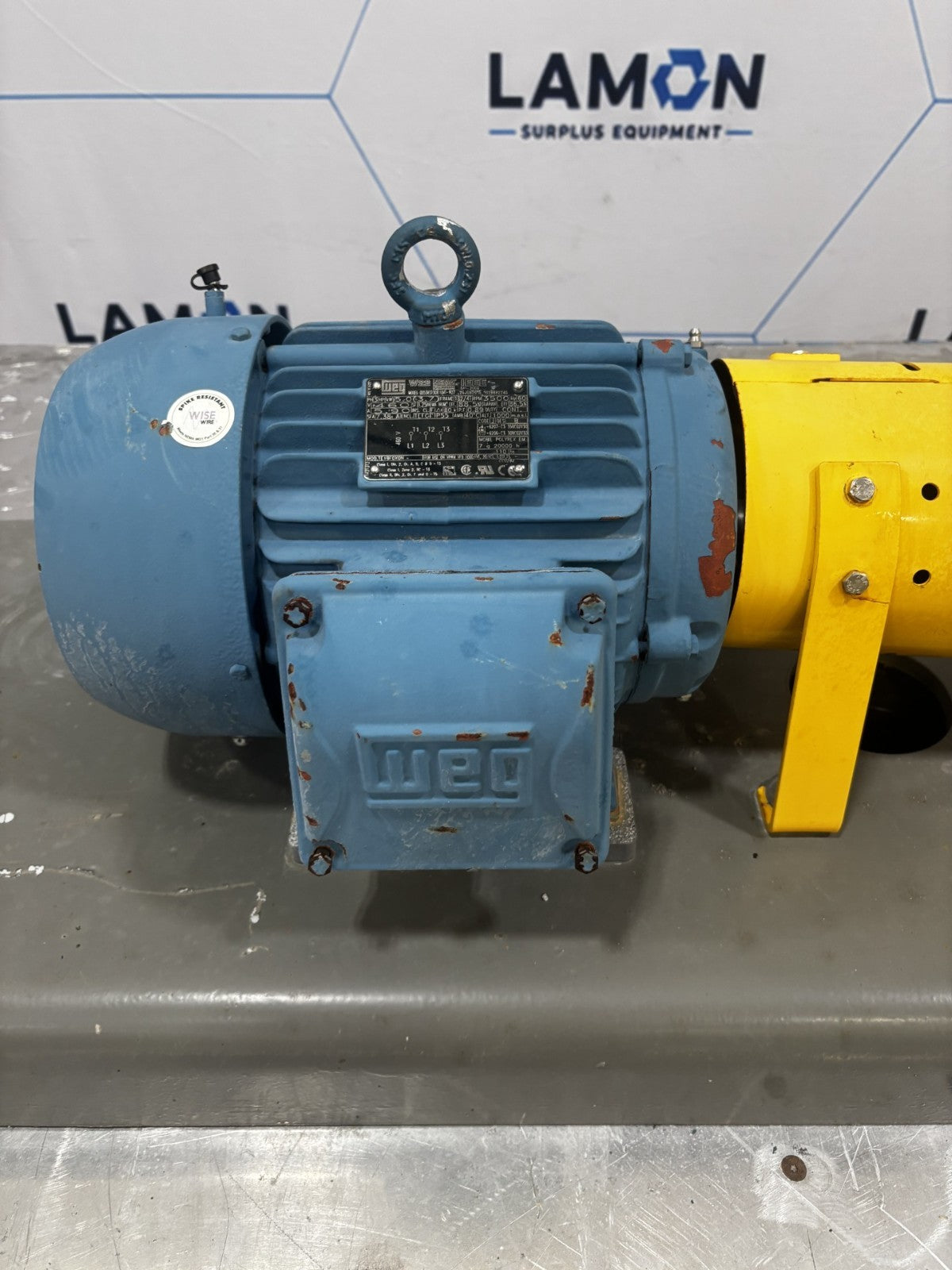

The WEG motor is a 3-phase, 460V, 3500 RPM, TEFC industrial motor rated at 5 HP. The complete assembly is mounted on a common steel base with coupling guard and associated tubing/fittings as pictured.

Pump Information:

• Manufacturer: Flowserve / Durco
• Model: MK3 LO-FLO
• Pump Series: Mark 3 Lo-Flo
• Size: 1K1.2X1LF-820P
• Serial No.: 12234W3CHP001C
• Purchase Order: 6246112-00
• Maximum Design Pressure: 250 PSI @ 100°F
• Material: DCI
• Date: 27/JUN/2016
• Type: Centrifugal Process Pump

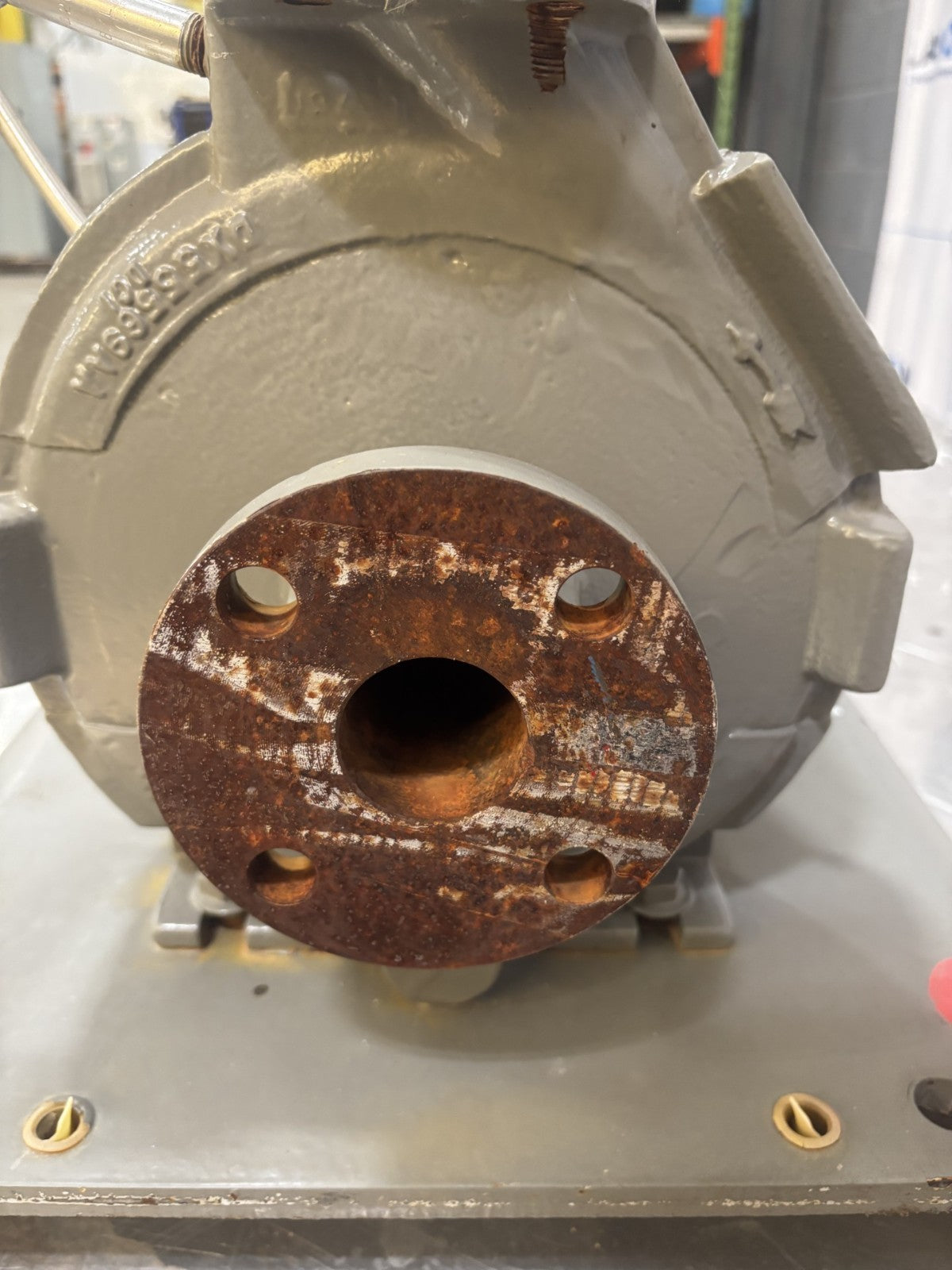

• Flanged Connections

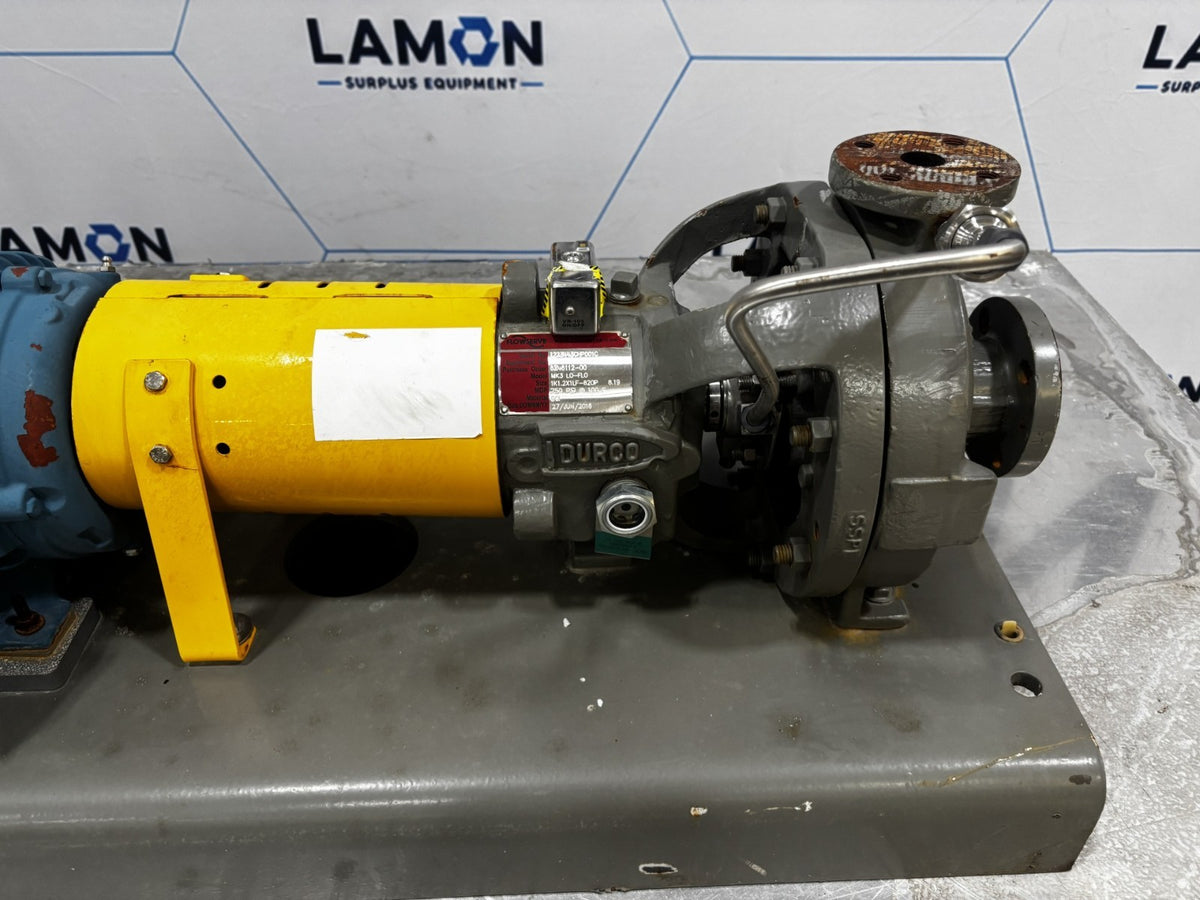

• DURCO marking cast into pump assembly

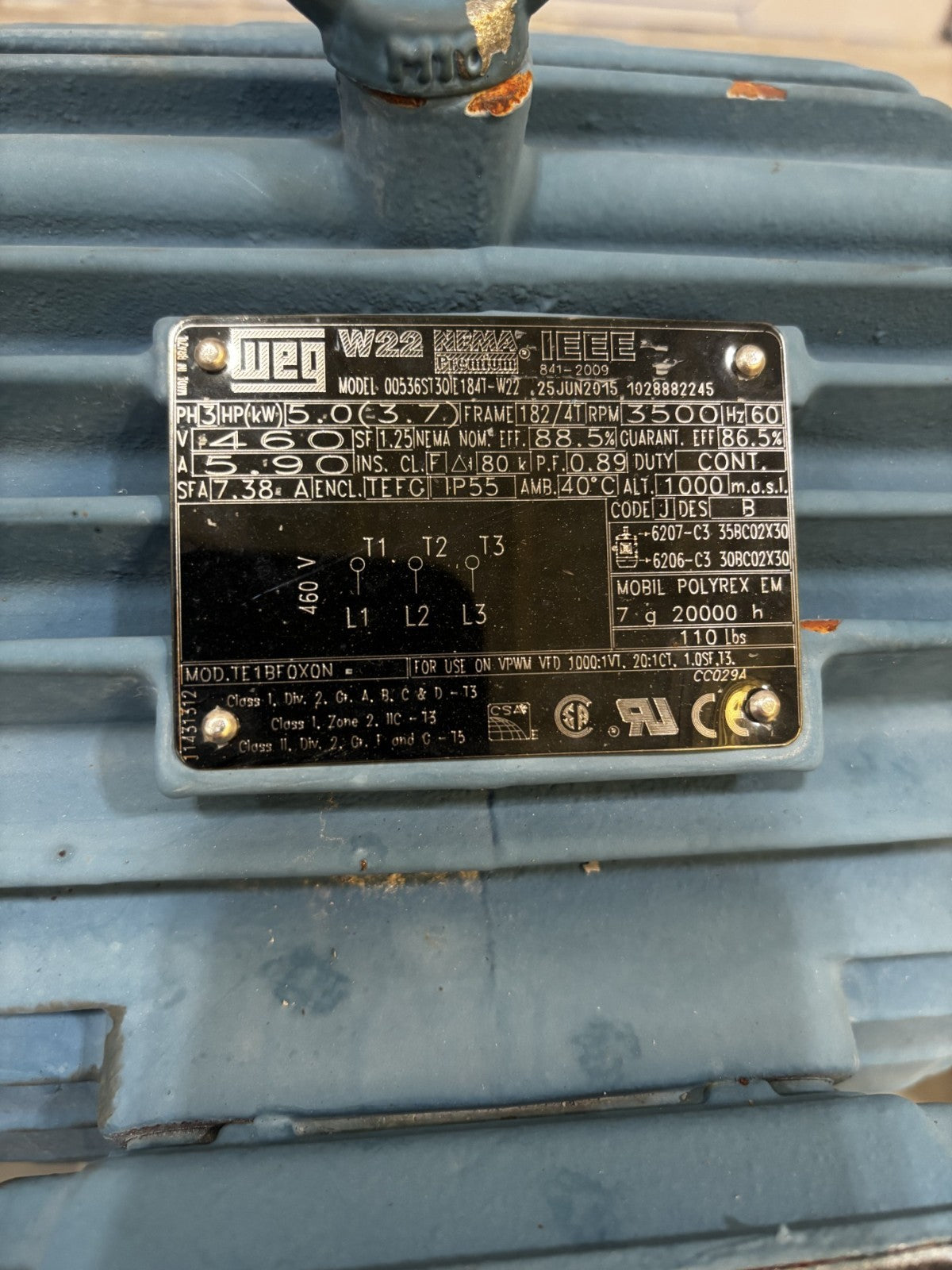

Motor Information:

• Manufacturer: WEG
• Series: W22 NEMA Premium
• Rated Power: 5 HP / 3.7 kW
• Voltage: 460 V
• Phase: 3 Phase
• Frequency: 60 Hz
• Speed: 3500 RPM
• Current: 5.90 A
• Frame: 182/4T
• Service Factor: 1.25
• Service Factor Amps: 7.38 A
• NEMA Nominal Efficiency: 88.5%
• Power Factor: 0.89
• Insulation Class: F
• Enclosure: TEFC
• Protection Rating: IP55
• Duty: Continuous
• Ambient Rating: 40°C
• Design: B
• Motor Date: 25/JUN/2015

Included:

• Flowserve Durco MK3 Lo-Flo pump
• WEG W22 5 HP motor
• Coupling
• Yellow coupling guard
• Stainless tubing/fittings shown
• Common steel mounting base
