Foxboro IGP10-TS3D1F-M2L1 Pressure Transmitter 0-150 PSI 2" 150LB 316SS Seal
$500.00
Skip to product information
Request a Freight Quote
Foxboro IGP10-TS3D1F-M2L1 Pressure Transmitter 0-150 PSI 2" 150LB 316SS Seal
$500.00
Unit appears exceptionally clean and retains protective shipping components. There may be minor scratches, marks, or cosmetic wear from storage and handling.No original factory box or documentation is included unless pictured.Please carefully review all photographs for exact configuration, connections, condition, and included components.

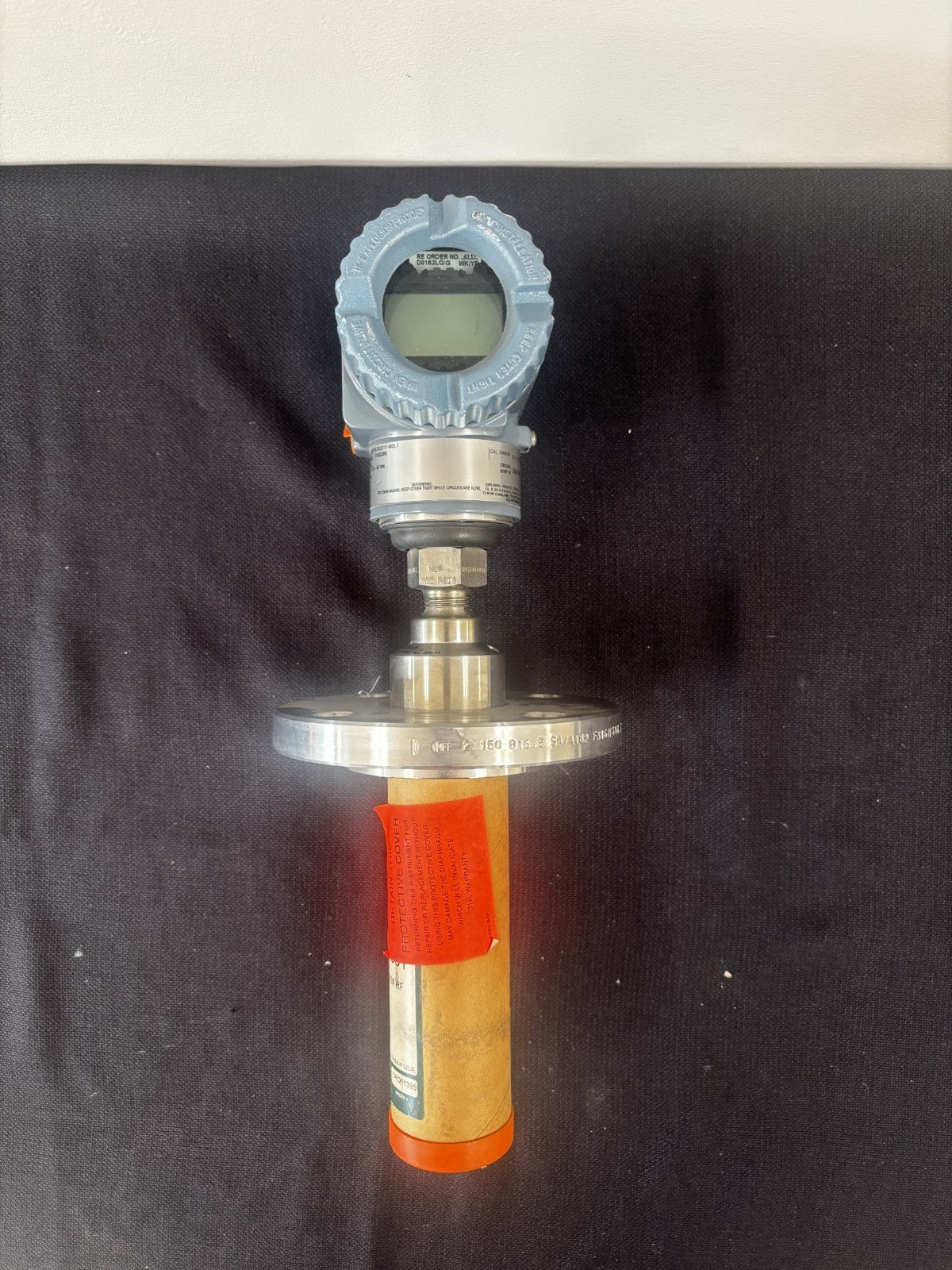

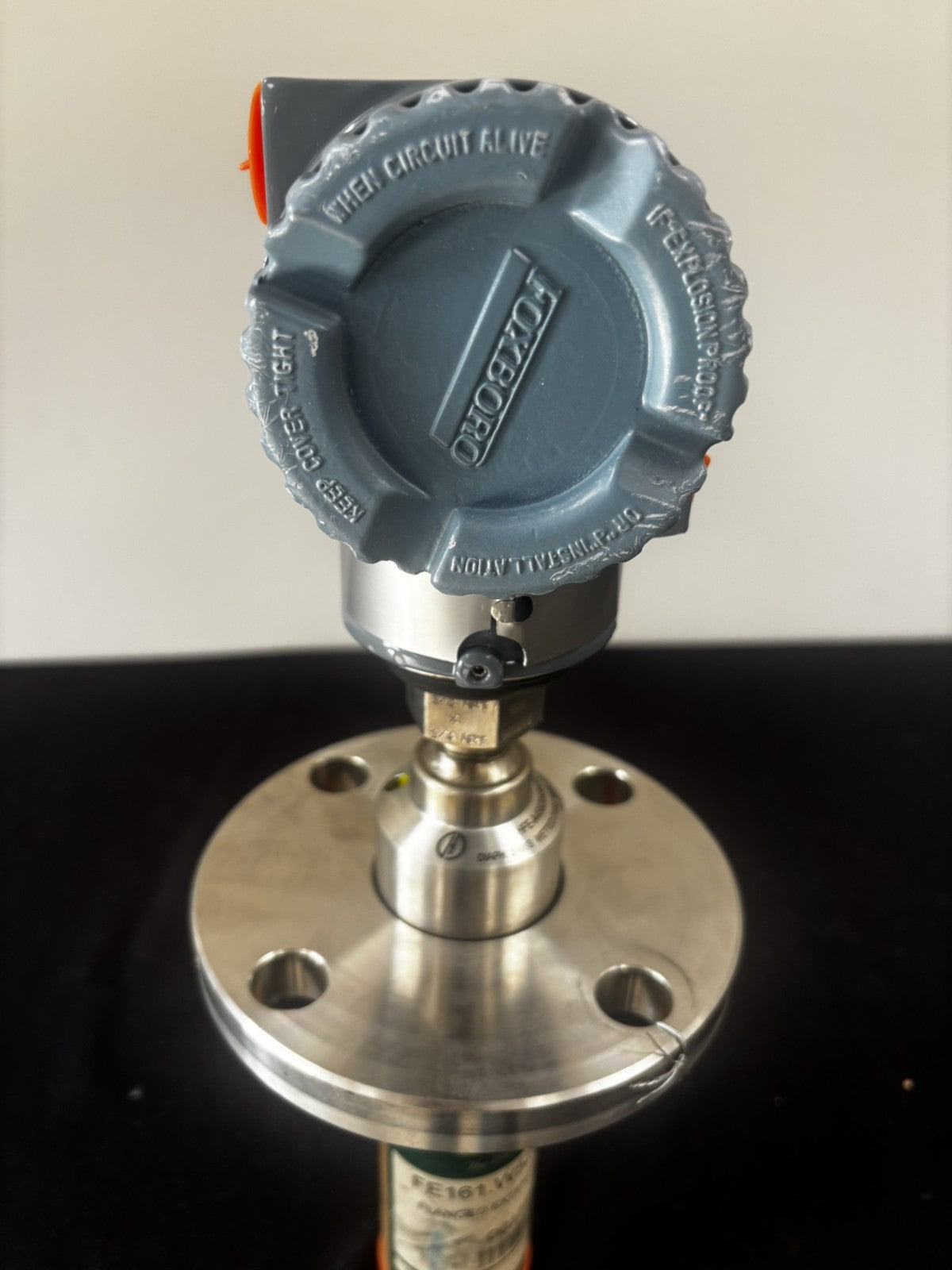

For sale is a Foxboro I/A Series IGP10 pressure transmitter equipped with a stainless steel diaphragm seal and flanged process connection.
Transmitter Information
- Brand: Foxboro
- Series: I/A Series

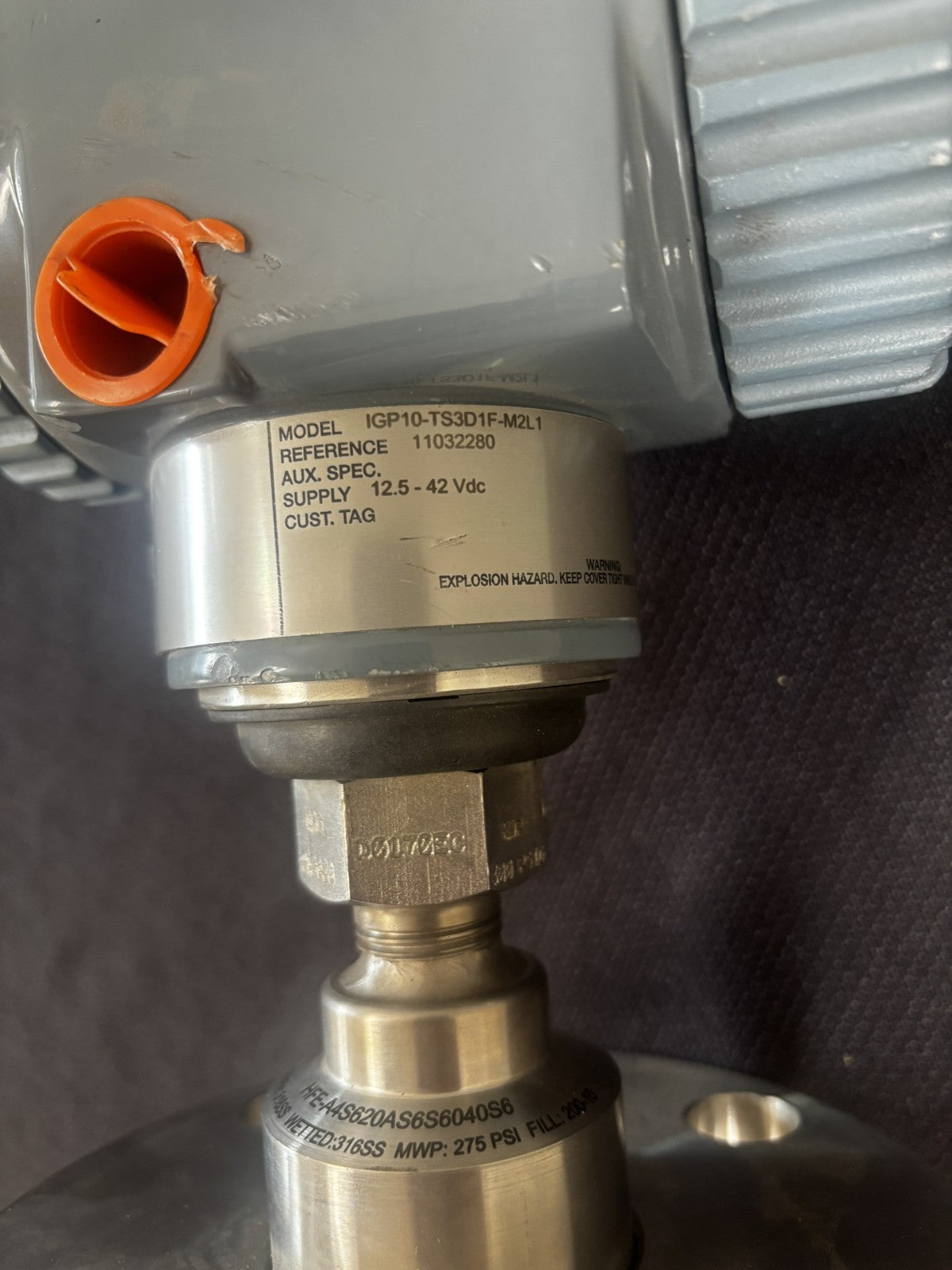

- Model / MPN: IGP10-TS3D1F-M2L1
- Reference: 11032280

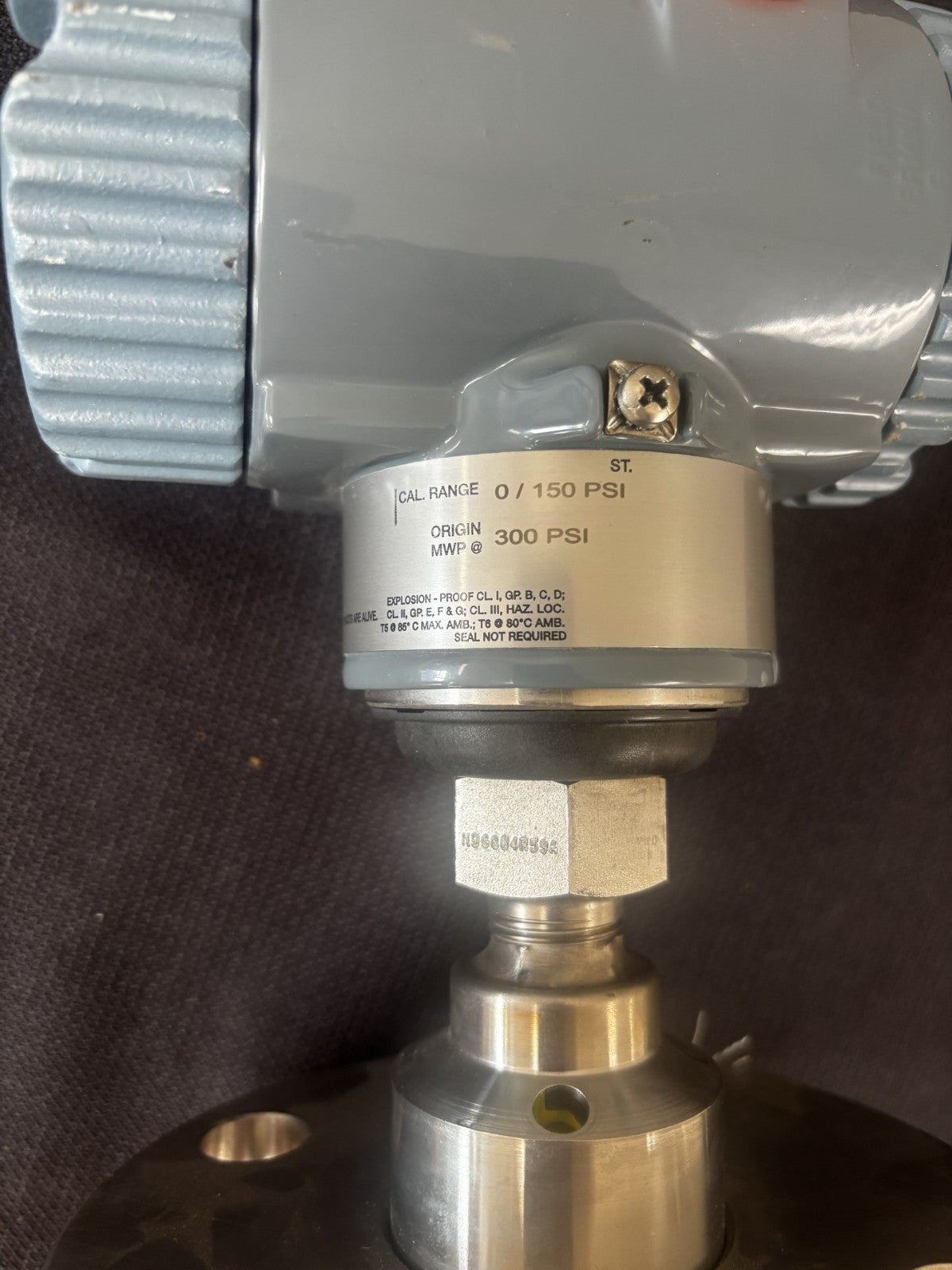

- Calibrated Range: 0–150 PSI
- Supply Voltage: 12.5–42 VDC
- Original MWP: 300 PSI
- Digital/local LCD display
- Explosion-proof transmitter housing
- Industrial process pressure measurement application
- Number of Phases: N/A
Process / Diaphragm Seal
The transmitter is fitted with a stainless steel diaphragm seal and flange assembly.

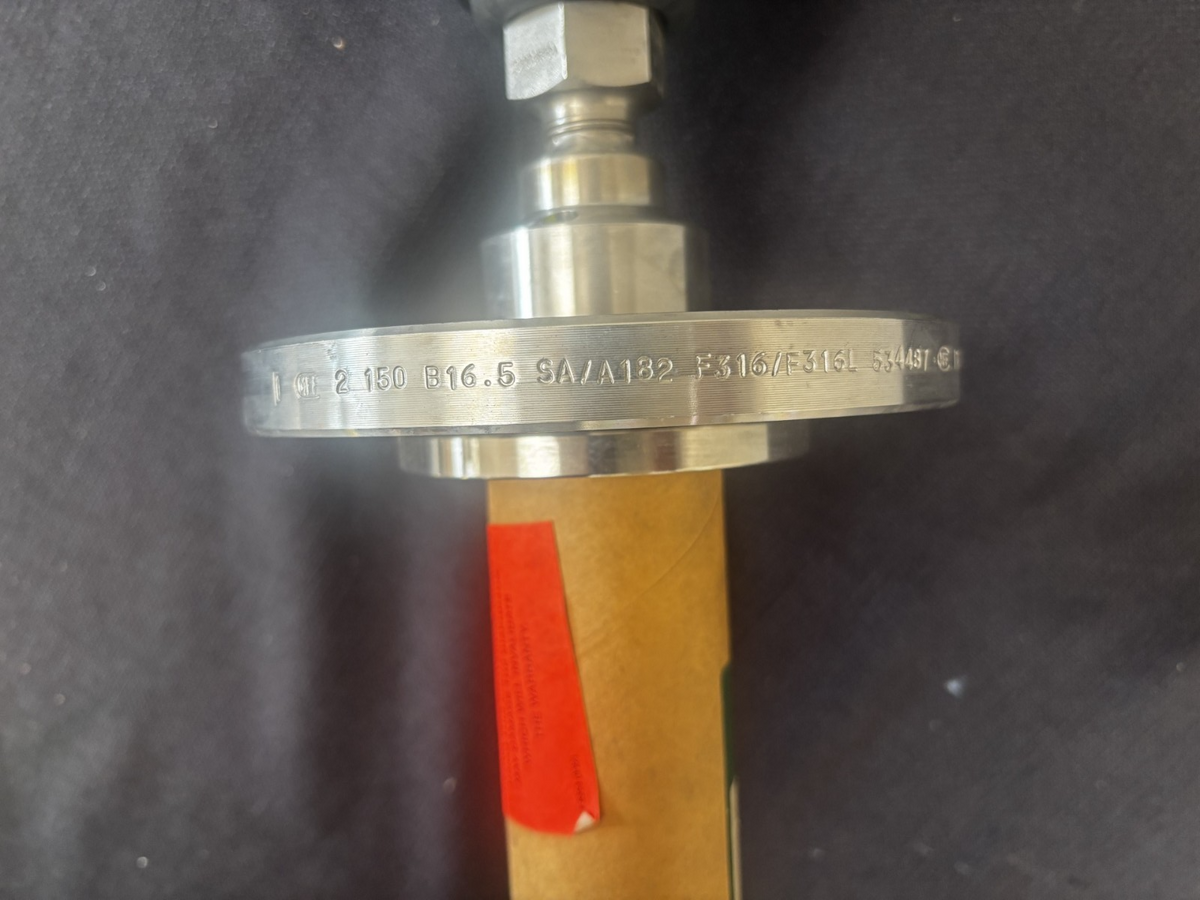

Visible flange markings include:
- 2" flange
- Class 150
- ASME B16.5
- SA/A182
- F316 / F316L stainless steel
- Seal assembly MWP marking: 275 PSI
The diaphragm seal allows the transmitter to measure process pressure while isolating the transmitter sensing element from the actual process media.
Brand: Foxboro
Current Type: DC
Unit Type: Unit
Output Type: Analog
MPN: IGP10-TS3D1F-M2L1
Unit Quantity: 1
Pressure Type: Gauge Pressure
Country of Origin: United States
