Littelfuse FLSR600ID Indicator Class RK5 Dual Element Fuse 600A 600VAC
Littelfuse FLSR600ID Indicator Class RK5 Dual Element Fuse 600A 600VAC
Littelfuse FLSR600ID Indicator Class RK5 Current-Limiting Fuse
This listing is for one genuine Littelfuse FLSR600ID industrial fuse. This is a heavy-duty Class RK5 dual-element, time-delay fuse designed for motor circuits, transformers, feeders, and other industrial electrical applications requiring current limitation and overload protection.

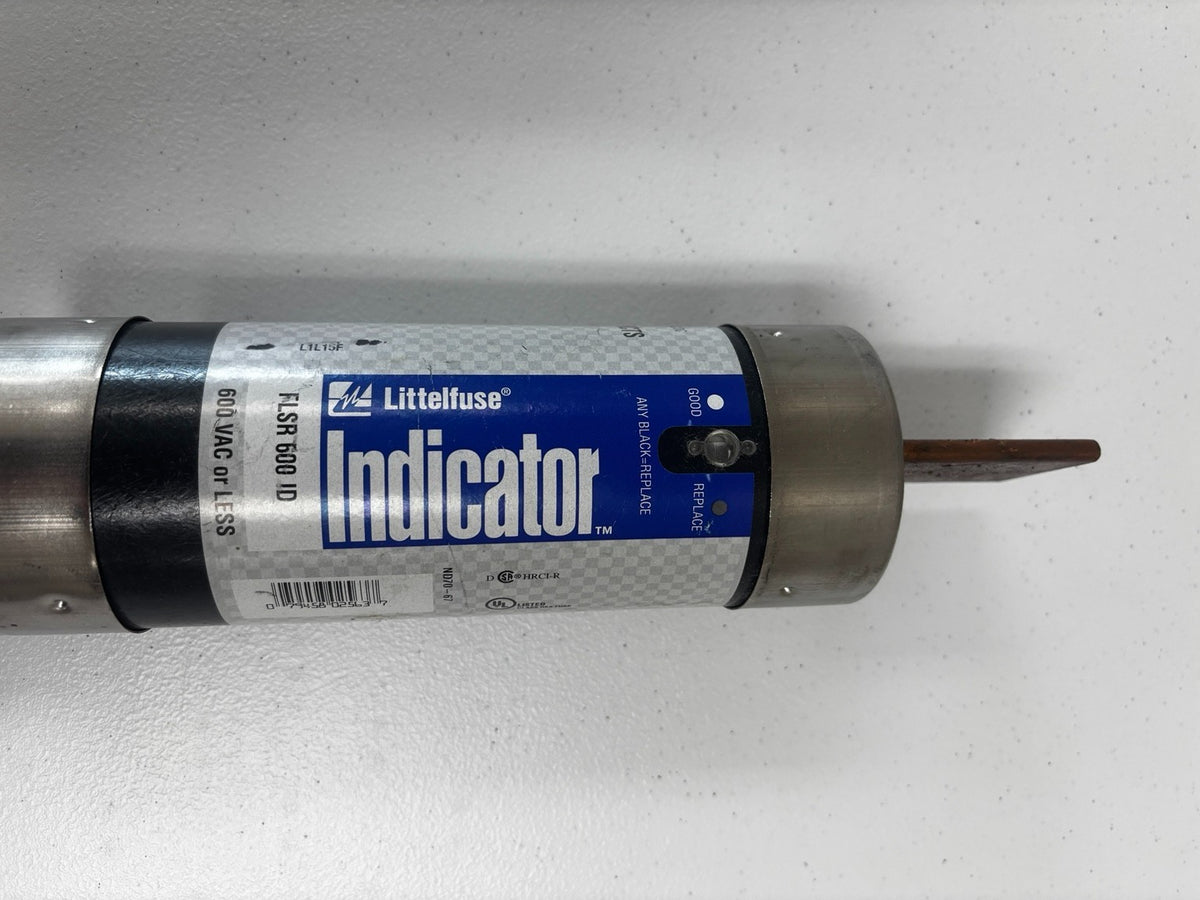

The built-in visual indicator allows quick identification of an opened fuse, reducing troubleshooting time and maintenance costs.
Specifications
- Manufacturer: Littelfuse
- Part Number: FLSR600ID
- Series: POWR-GARD
- Fuse Class: RK5
- Type: Dual Element Time Delay
- Current Rating: 600 Amps
- Voltage Rating: 600 VAC or Less
-
Interrupt Rating:
- 200kA RMS Symmetrical
- 20kA DC @ 300VDC
- Current Limiting
- Visual Indicator Window
- UL Listed
- Assembled in Mexico
Applications
- Motor protection
- Switchgear
- Industrial control panels
- Distribution equipment
- MCCs
- Transformers
- Heavy industrial electrical systems

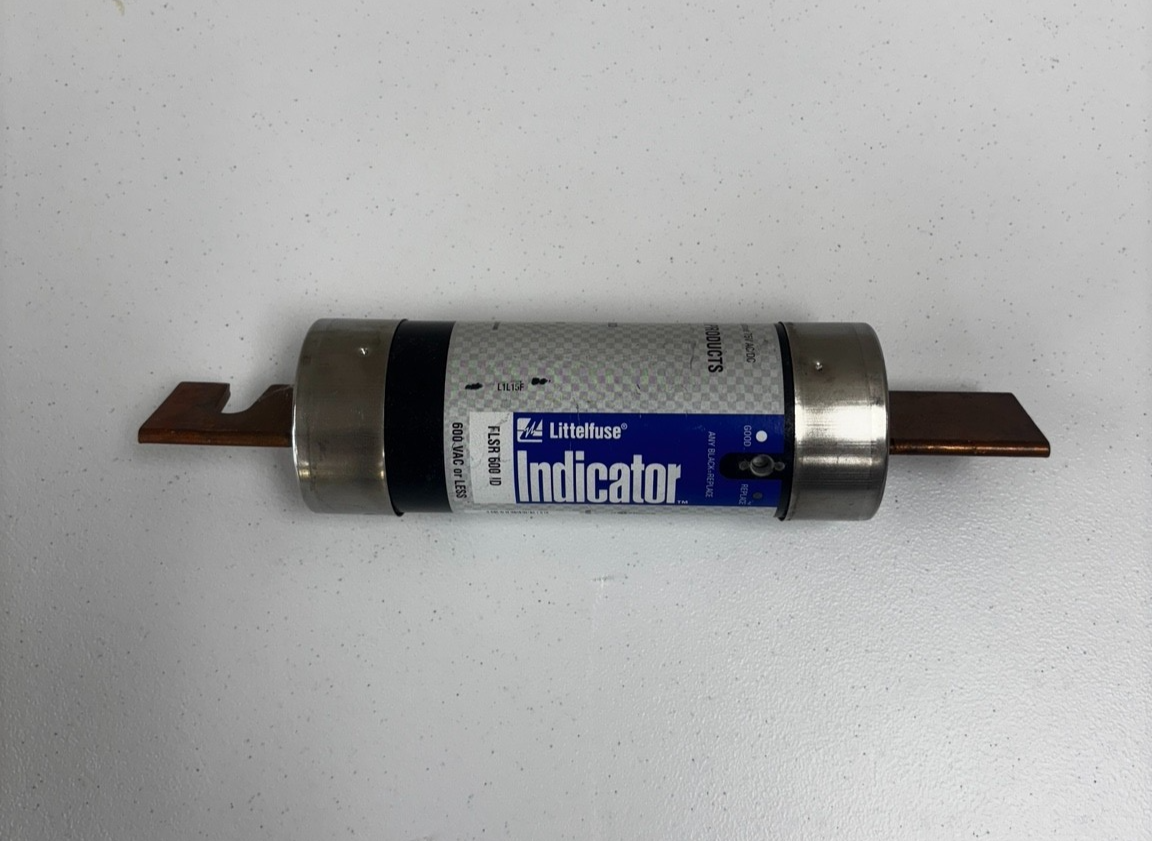

Includes only the fuse shown in the photographs.
Fuse Body Type: Blade
MPN: FLSR600ID
Current Type: AC
Unit Type: Unit
Number in Pack: 1
Voltage: 600 V
Unit Quantity: 3
Finish: Copper
Room: Any Room
Mounting Style: Bolt-On
Operating Temperature: -40°C to +125°C
Maximum Amperage: 600 A
Color: Blue
Number of Phases: 1
Current Rating: 600 A
Material: Copper
Orientation: Horizontal/Vertical
Brand: Littelfuse
Fuse Speed: Time-Delay/Slow-Blow (T)
Type: Electrical Fuse
Model: FLSR600ID
Number of Poles: 1
Number of Circuits: 1-10
Application: Branch Circuit, Motor Protection, Industrial Electrical Distribut
Number of Ways: 1
Country of Origin: Mexico
