Siemens 3VA5225-5EC31 250A 3 Pole 600V TM230 MCCB w/ Cable & Connector

Siemens SENTRON 3VA5 Molded Case Circuit Breaker

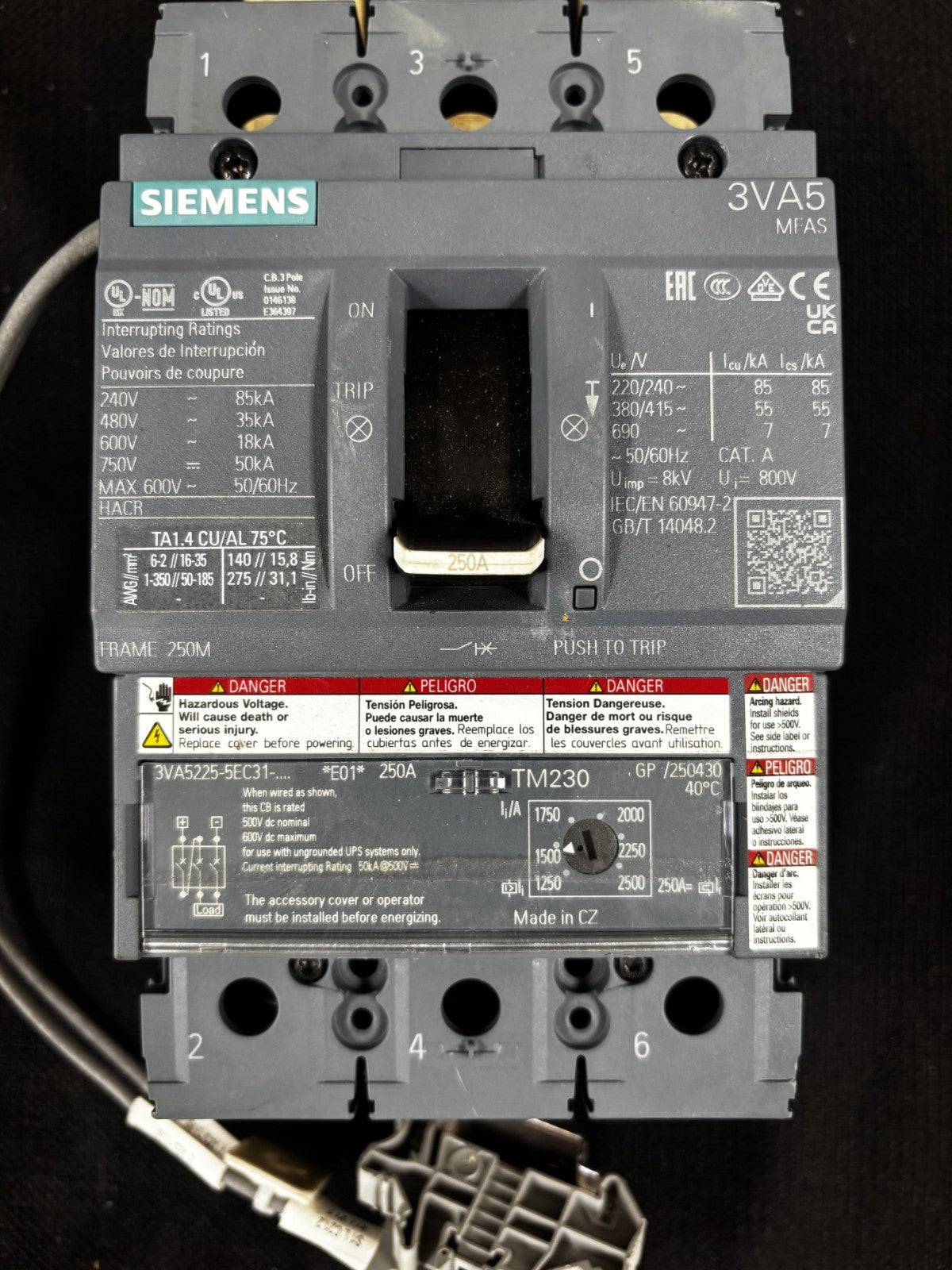

For sale is a Siemens 3VA5 Series molded case circuit breaker, catalog number 3VA5225-5EC31, featuring a 250 Amp TM230 thermal magnetic trip unit and an attached factory wiring harness/connector assembly.

The breaker is designed for industrial power distribution, switchgear, OEM machinery, UPS systems, and motor control applications. It features fixed thermal overload protection with an adjustable instantaneous magnetic trip setting of 5–10× rated current.

Specifications

• Manufacturer: Siemens
• Series: SENTRON 3VA5
• Catalog Number: 3VA5225-5EC31
• Frame Size: 250M
• Trip Unit: TM230
• Current Rating: 250 Amps
• Number of Poles: 3
• Voltage Rating:
  • 600 VAC Maximum
  • 500 VDC Nominal (600 VDC Maximum for ungrounded UPS applications)
• Frequency: 50/60 Hz
• Interrupting Capacity:
  • 85kA @ 240VAC
  • 35kA @ 480VAC
  • 18kA @ 600VAC
  • 50kA @ 500VDC
• Adjustable Instantaneous Trip:
  • 1,250–2,500 Amps
• UL Listed
• HACR Rated
• IEC/EN 60947-2
• Made in Czech Republic

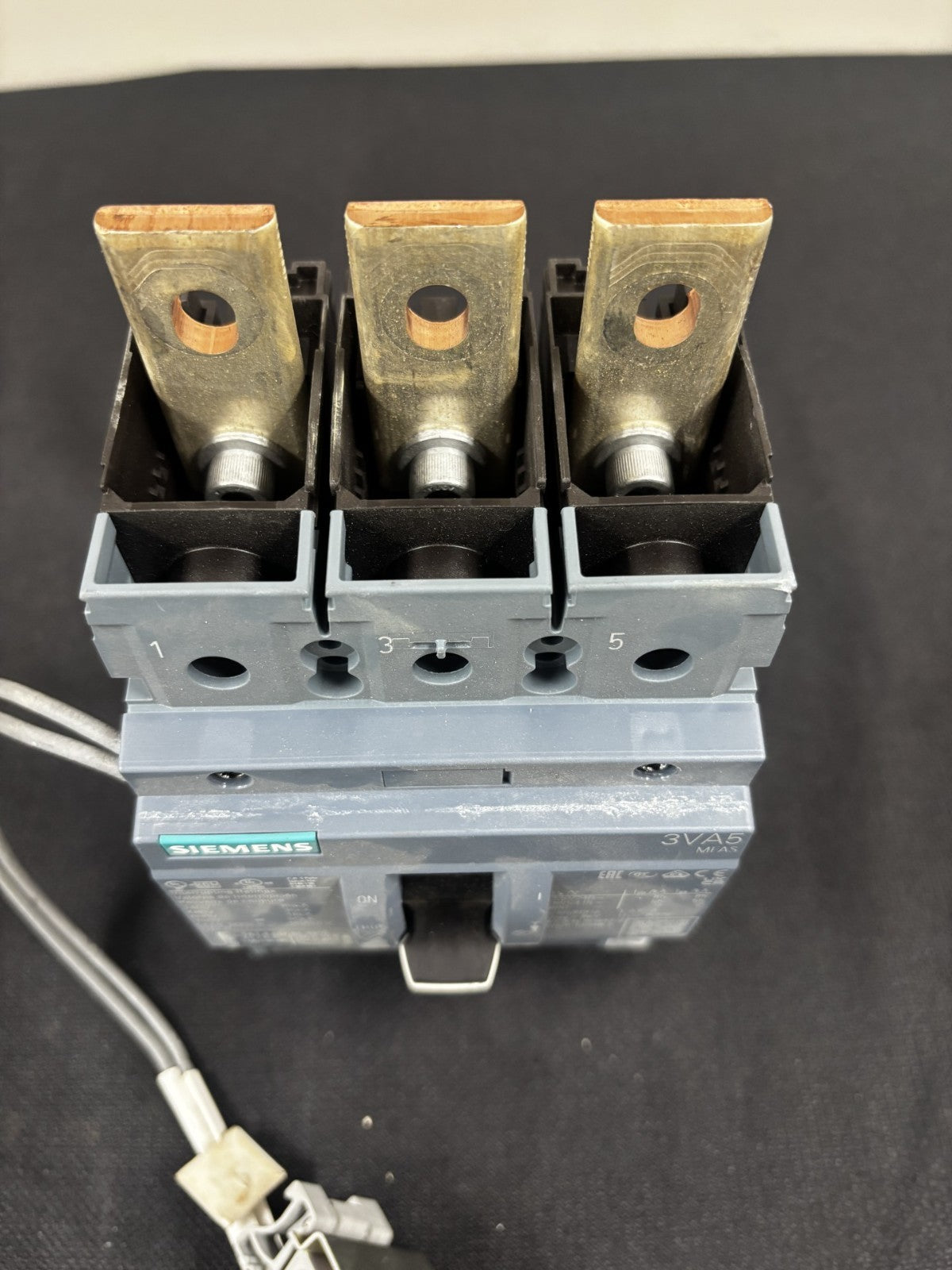

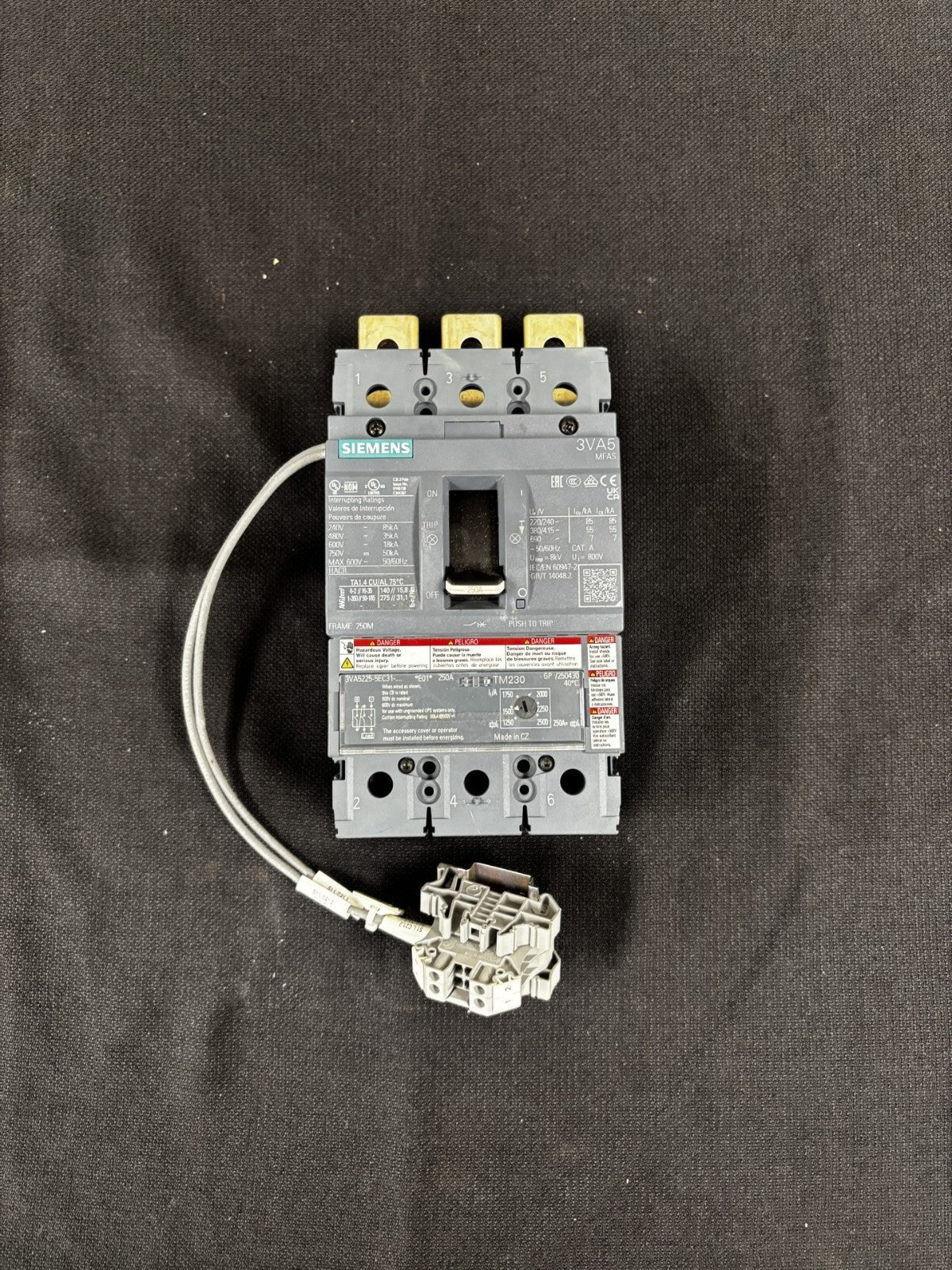

• Includes attached Siemens cable and connector assembly as pictured.

Includes

• Siemens 3VA5225-5EC31 Circuit Breaker
• Factory attached cable
• Connector plug assembly
• Exactly as shown in photos
