Siemens 3VA5225-5EC31 250A 3 Pole 600V TM230 MCCB w/ Factory Harness

Siemens SENTRON 3VA5 Molded Case Circuit Breaker with Factory Wiring Harness

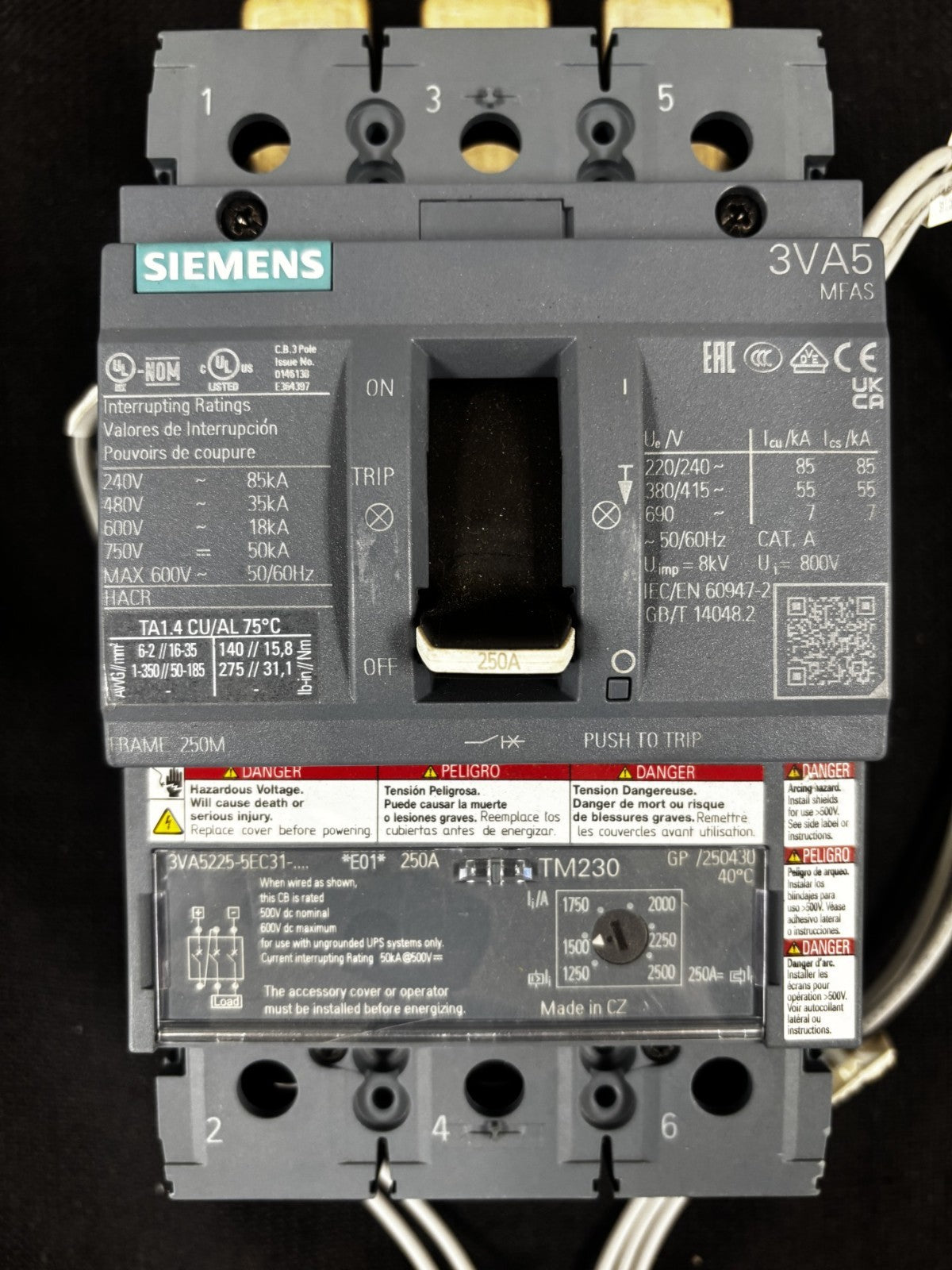

Offered for sale is a Siemens SENTRON 3VA5 Series Molded Case Circuit Breaker, catalog number 3VA5225-5EC31, rated at 250 Amps with a TM230 thermal-magnetic trip unit. This breaker includes the original Siemens factory wiring harness and connector assembly, making it ideal for replacement or OEM applications.

The 3VA5 series is designed for industrial power distribution, switchgear, motor control centers, UPS equipment, and OEM machinery. This model features fixed thermal overload protection with an adjustable instantaneous magnetic trip setting of 5–10× rated current. It is UL Listed, HACR rated, and suitable for AC and DC applications.

Specifications

• Manufacturer: Siemens
• Product Line: SENTRON 3VA5
• Catalog Number: 3VA5225-5EC31
• Frame Size: 250M
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Trip Unit: TM230 Thermal Magnetic
• Current Rating: 250 Amps
• Number of Poles: 3
• Maximum Voltage:
  • 600 VAC
  • 500 VDC Nominal (600 VDC Max)
• Frequency: 50/60 Hz
• Interrupting Ratings:
  • 85kA @ 240VAC
  • 35kA @ 480VAC
  • 18kA @ 600VAC
  • 50kA @ 500VDC
• Adjustable Instantaneous Trip:
  • 1,250–2,500 Amps
• UL Listed
• HACR Rated
• IEC/EN 60947-2
• Made in Czech Republic

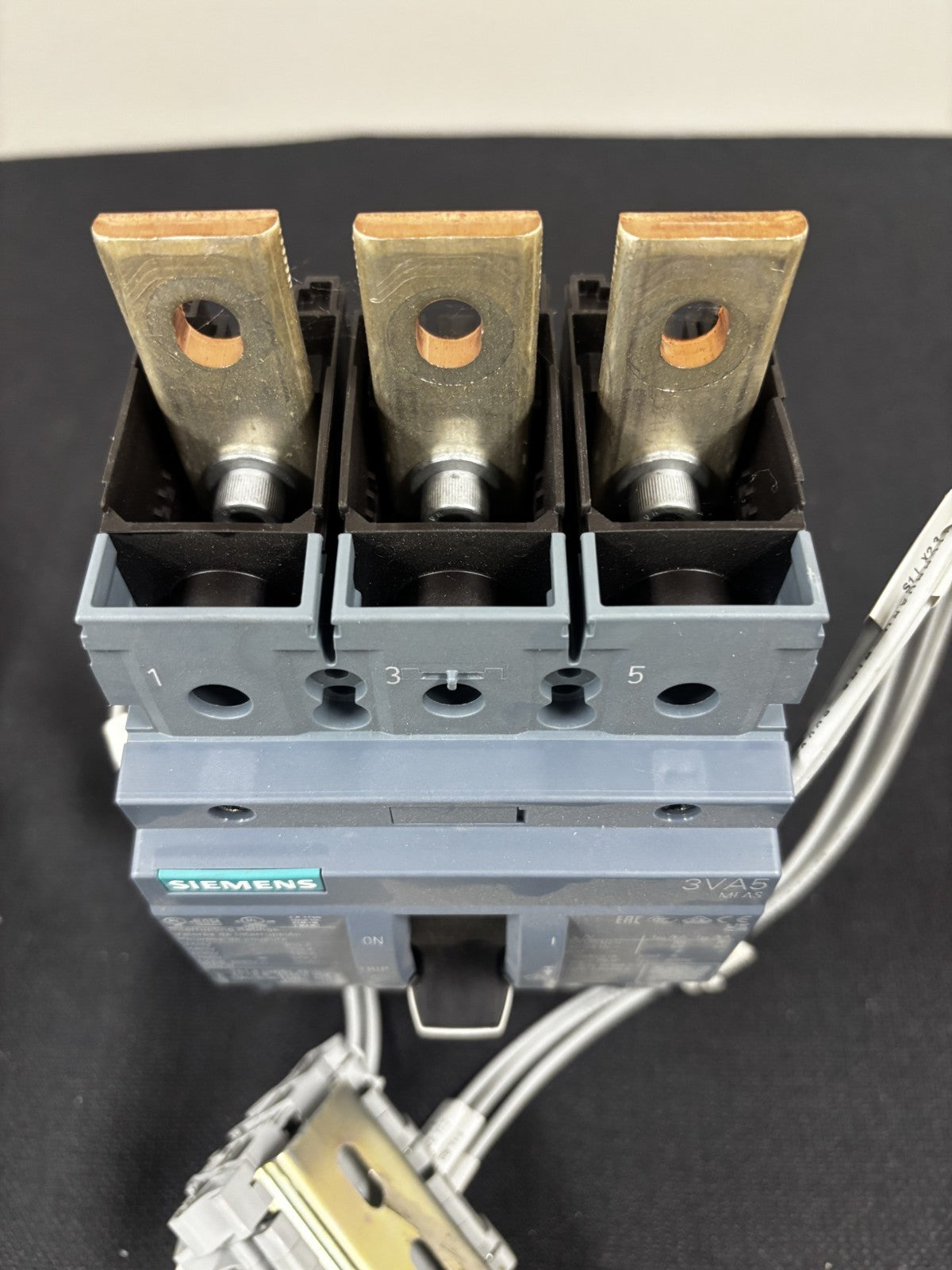

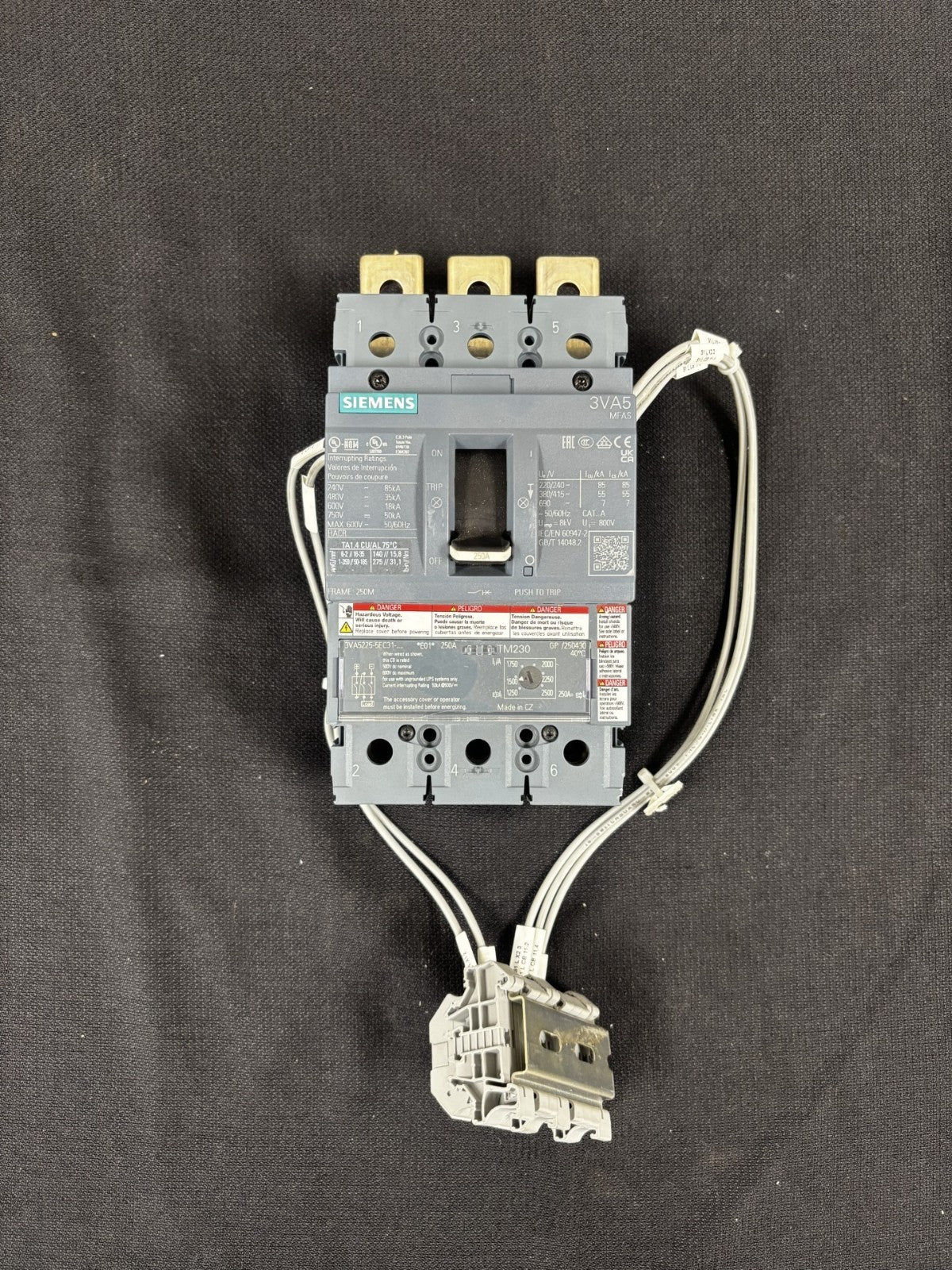

• Includes attached Siemens factory wiring harness and connector as shown.

Includes

• Siemens 3VA5225-5EC31 Circuit Breaker
• Factory wiring harness
• Factory connector assembly
• Exactly as pictured
