Siemens 3VA5 Molded Case Circuit Breaker
For sale is a Siemens 3VA5 Series molded case circuit breaker, rated at 400 Amps with 2 poles. This breaker features a TM230 thermal magnetic trip unit with adjustable instantaneous magnetic trip settings from 2,000–4,000 Amps. It is designed for commercial and industrial power distribution, switchgear, UPS systems, and OEM equipment.

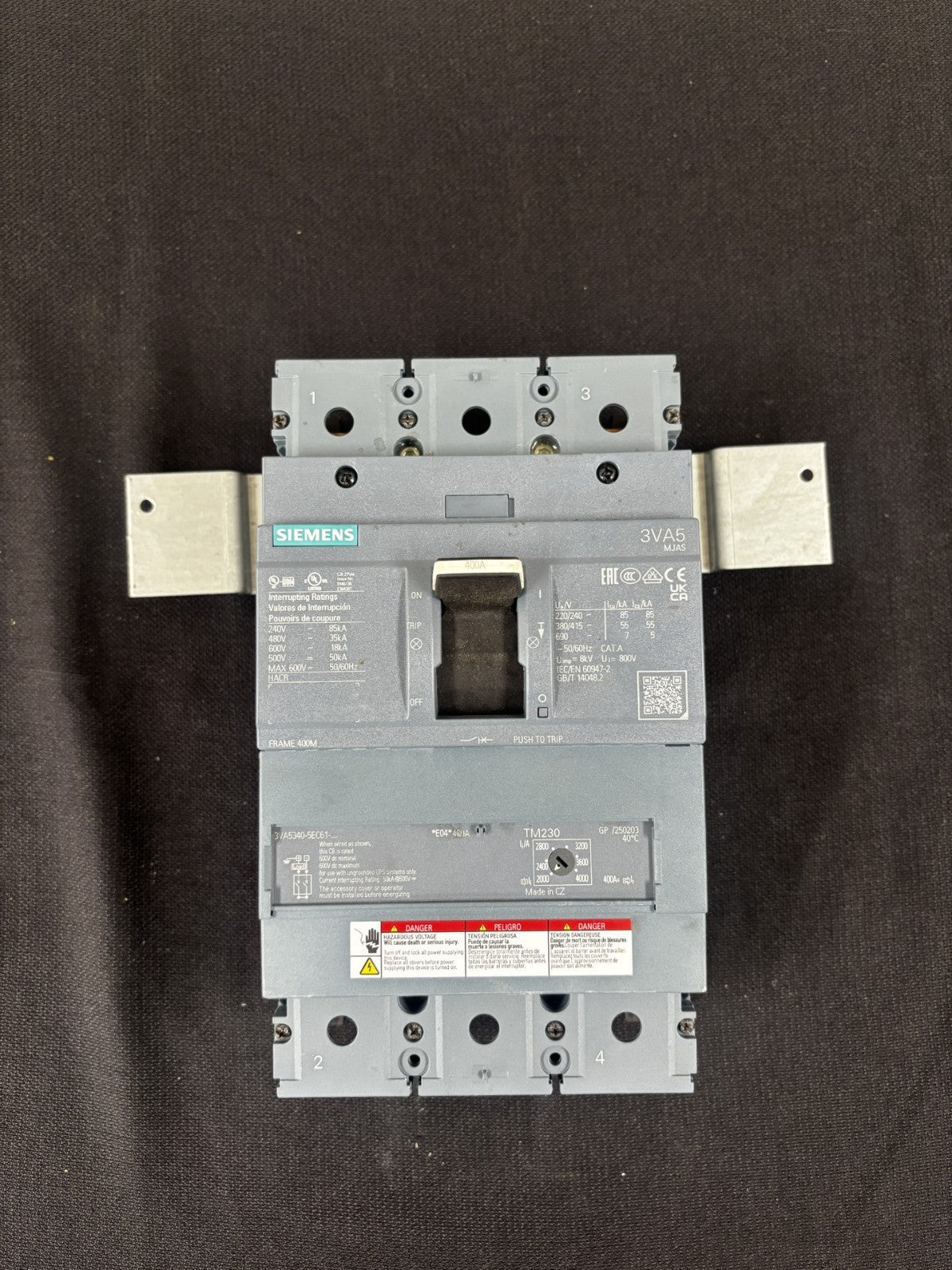

The breaker includes the factory mounting brackets shown in the photos.
Specifications
- Manufacturer: Siemens
- Series: 3VA5
- Catalog Number: 3VA5340-5EC61
- Frame Size: 400M

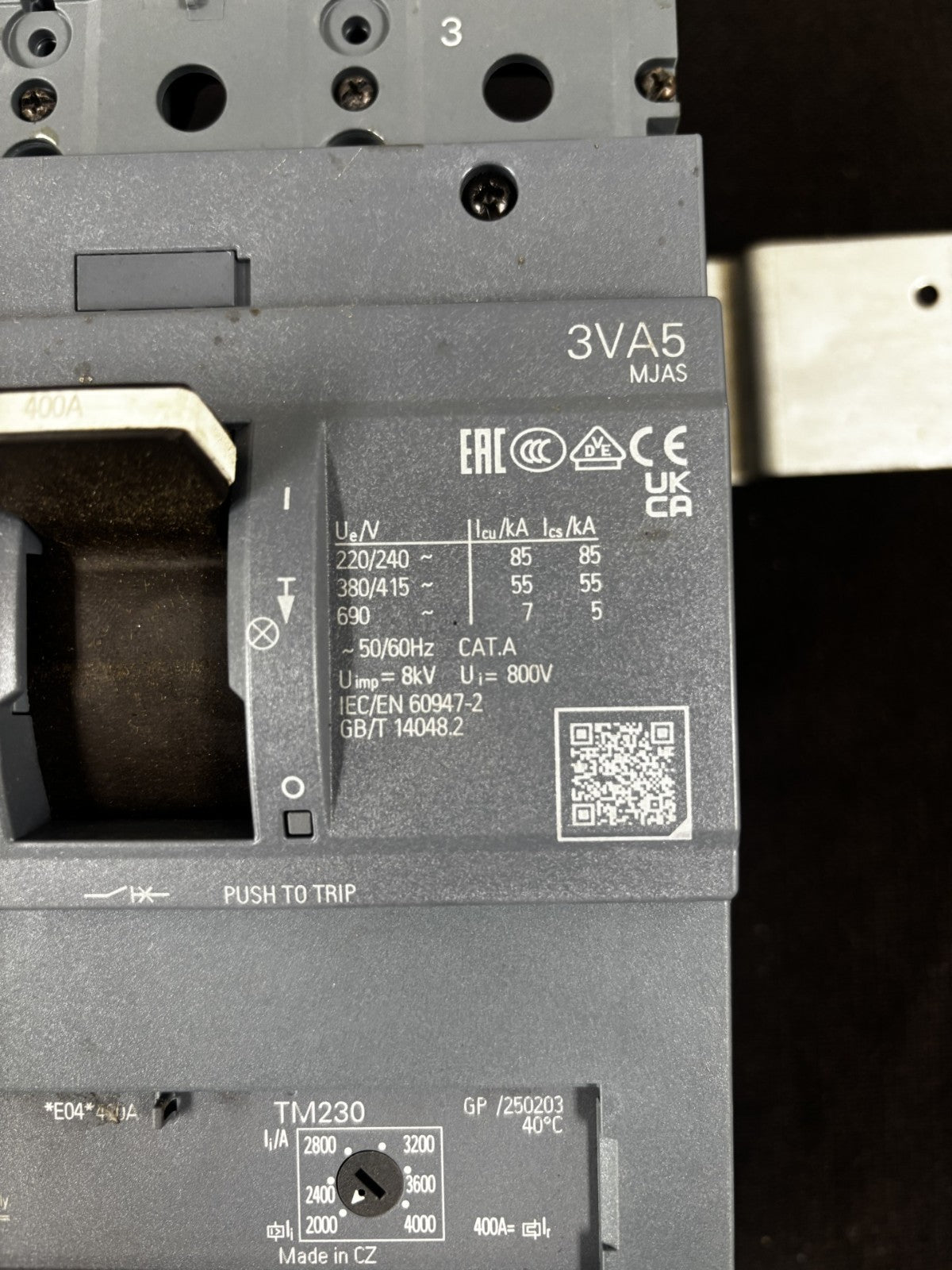

- Trip Unit: TM230
- Amperage: 400A
- Poles: 2
-
Voltage Rating:
- 600 VAC Max
- 500 VDC
- Frequency: 50/60 Hz
-
Adjustable Instantaneous Trip:
- 2,000–4,000 Amps
-

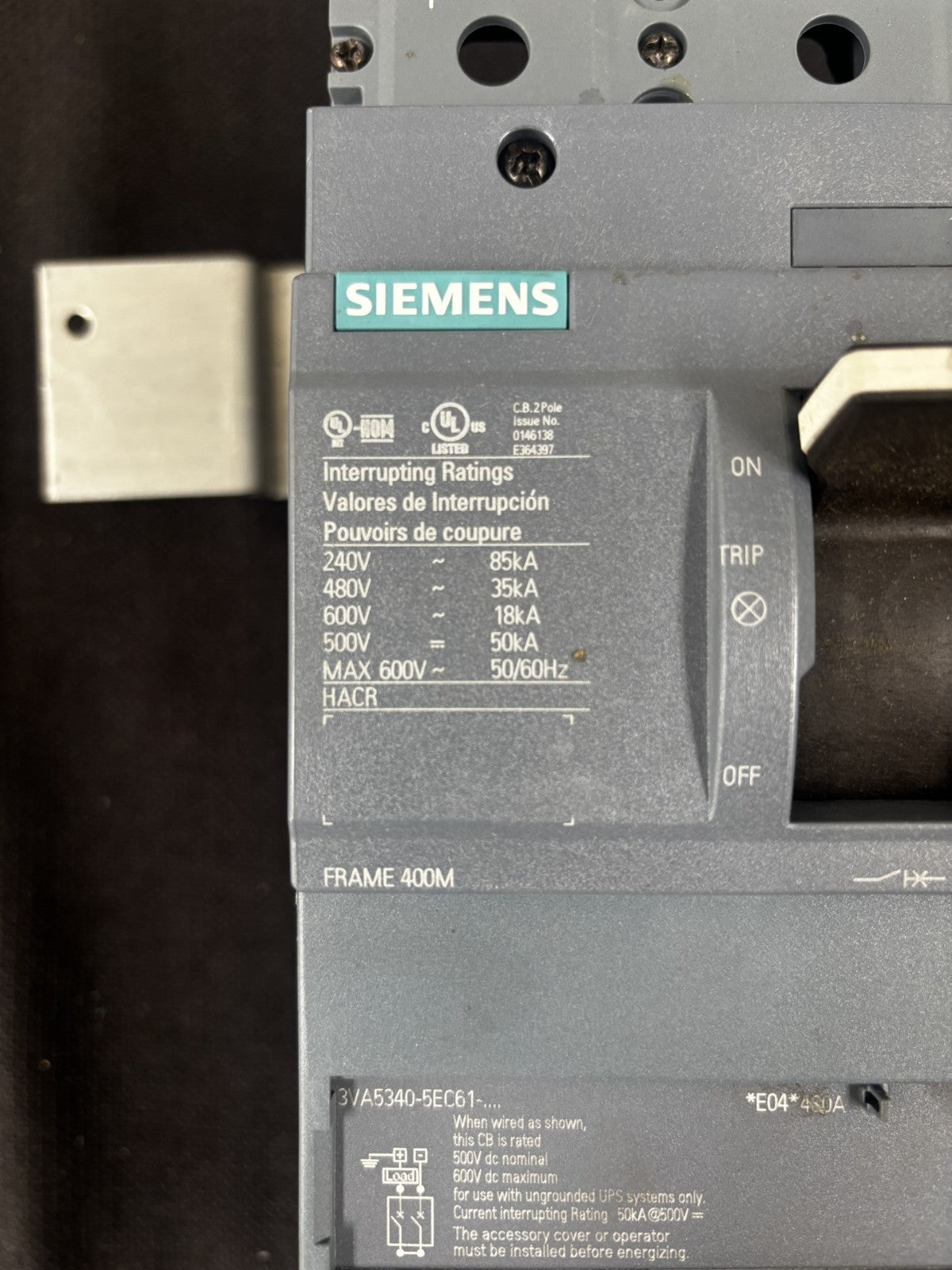

Interrupting Ratings:
- 85kA @ 240VAC
- 35kA @ 480VAC
- 18kA @ 600VAC
- 50kA @ 500VDC
- UL Listed
- HACR Rated
- IEC/EN 60947-2
- Made in Czech Republic
Includes
- Siemens 3VA5340-5EC61 Circuit Breaker
- Factory Mounting Brackets
- Only the items shown in the photos
Maximum Amperage: 400 A
Number of Phases: 1
Current Rating: 400 A
MPN: 3VA5340-5EC61
Brand: Siemens
Operation Method: On/Off
Current Type: AC/DC
Type: Main Breaker
Unit Type: Unit
Voltage: 600 VAC Max / 500 VDC
Model: 3VA5 Frame 400M TM230
Unit Quantity: 1
Application: Commercial, Industrial
