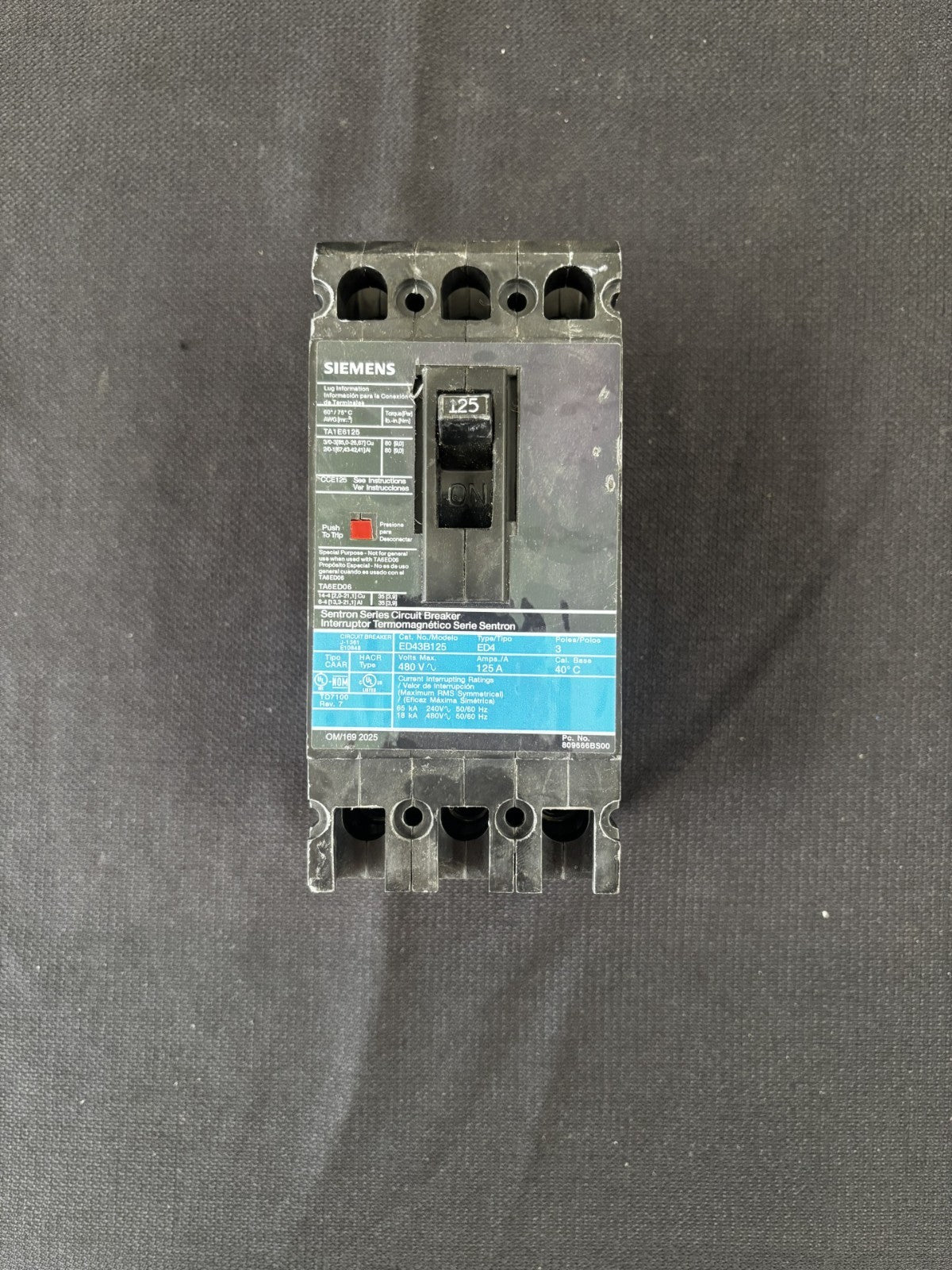

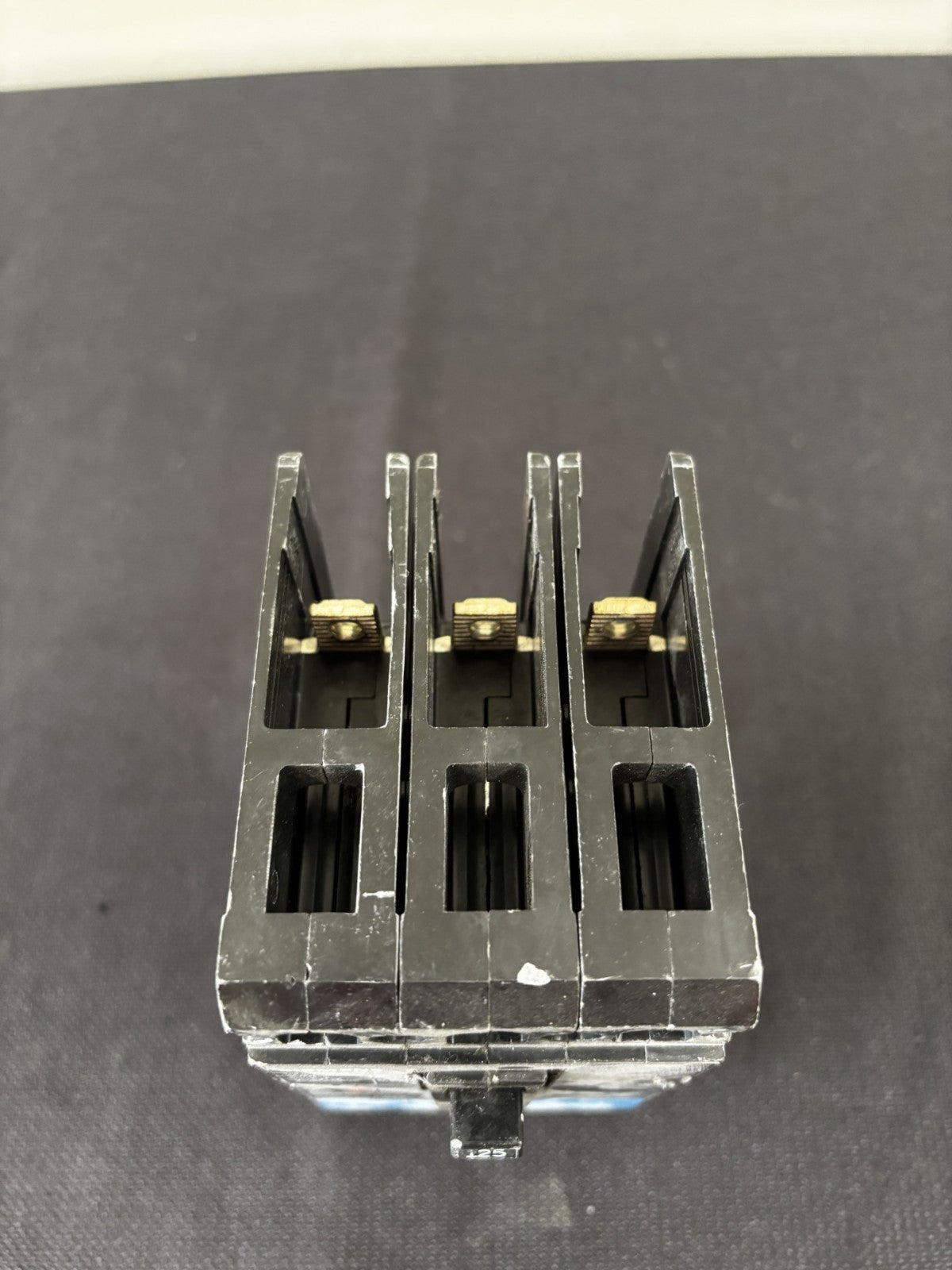

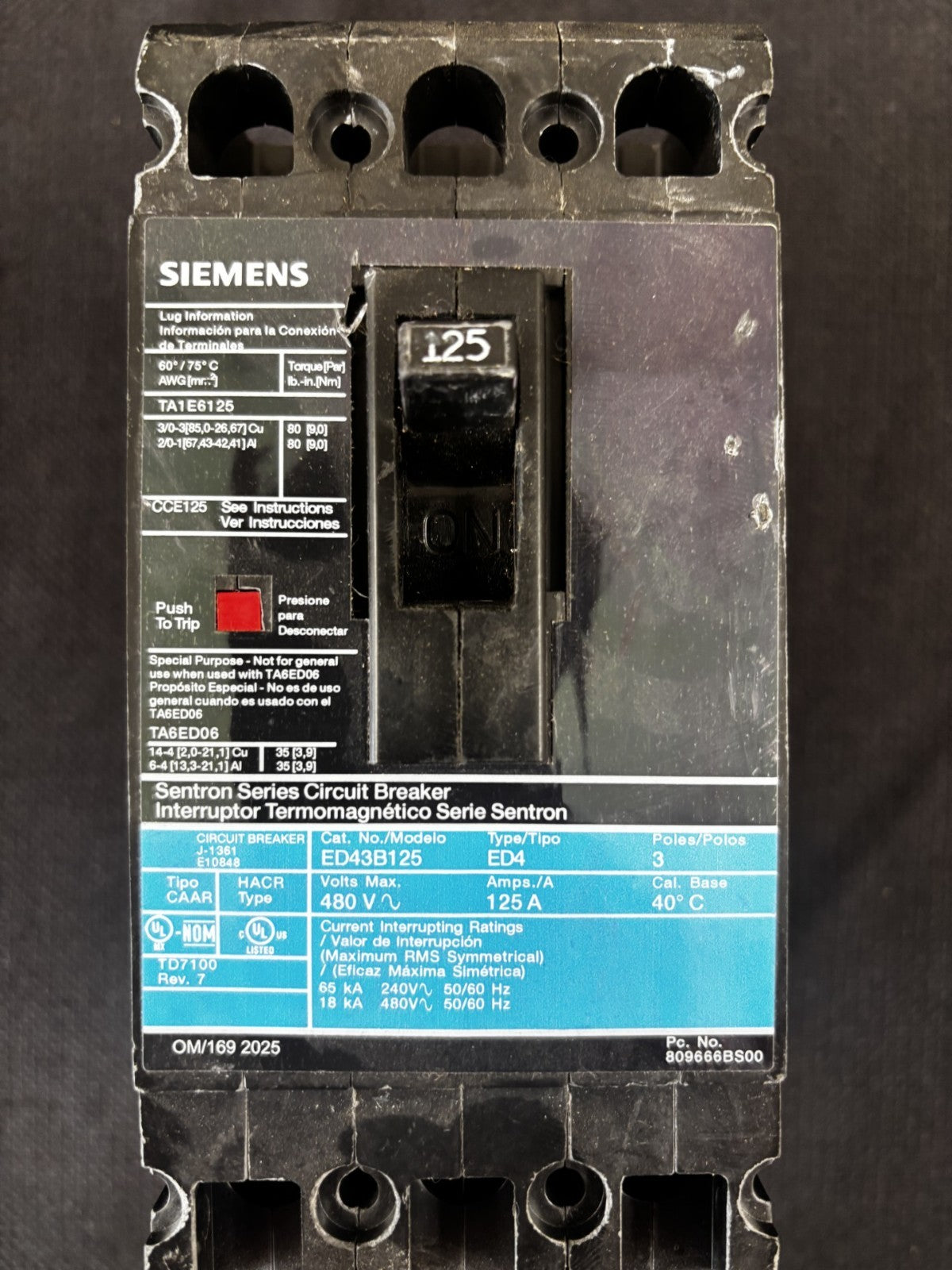

Siemens ED43B125 Sentron ED4 125A 3 Pole 480V Molded Case Circuit Breaker

Siemens Sentron Series ED43B125 thermal-magnetic molded case circuit breaker. This 3-pole breaker is rated for 125 amps and up to 480 VAC, making it suitable for commercial and industrial electrical distribution systems.

The breaker features HACR rating and standard thermal-magnetic protection. It has been visually inspected and is being sold as pictured.

Specifications

• Manufacturer: Siemens
• Series: Sentron ED4
• Model: ED43B125
• Type: Molded Case Circuit Breaker
• Trip Type: Thermal-Magnetic
• Current Rating: 125 Amps
• Number of Poles: 3
• Maximum Voltage: 480 VAC
• Frequency: 50/60 Hz
• Interrupting Rating:
  • 65 kA @ 240 VAC
  • 18 kA @ 480 VAC
• HACR Rated: Yes
• Calibration Temperature: 40°C
• Lug Kit: TA1E6125
• Mounting Style: Panel Mount
• Country/Region of Manufacture: Mexico

Included

• (1) Siemens ED43B125 125A 3-Pole Circuit Breaker

No additional accessories or hardware included.
