Siemens JXD22B400 Sentron 400A 2 Pole Circuit Breaker JXD2-A 240V 250VDC
Siemens JXD22B400 Sentron 400A 2 Pole Circuit Breaker JXD2-A 240V 250VDC

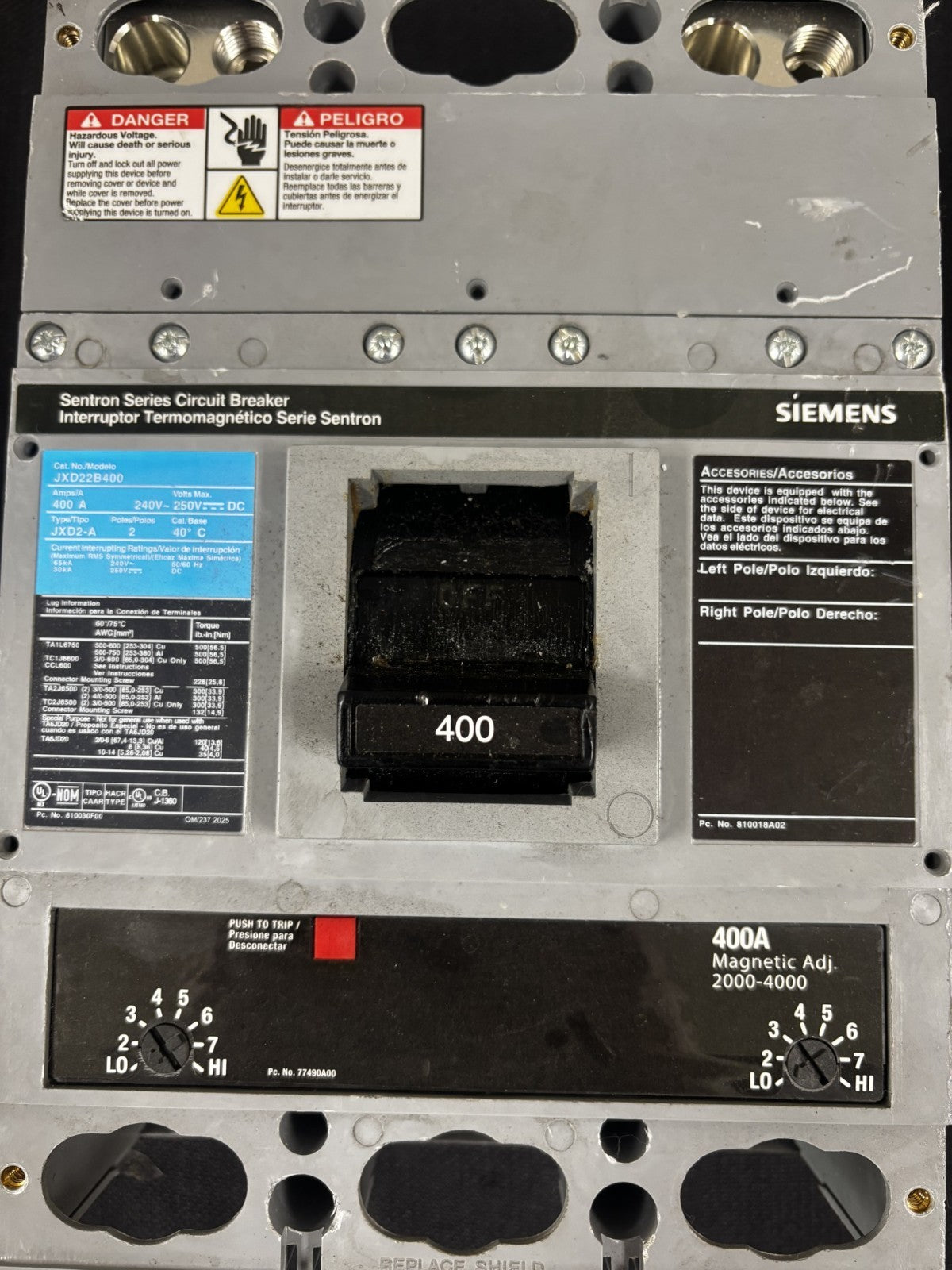

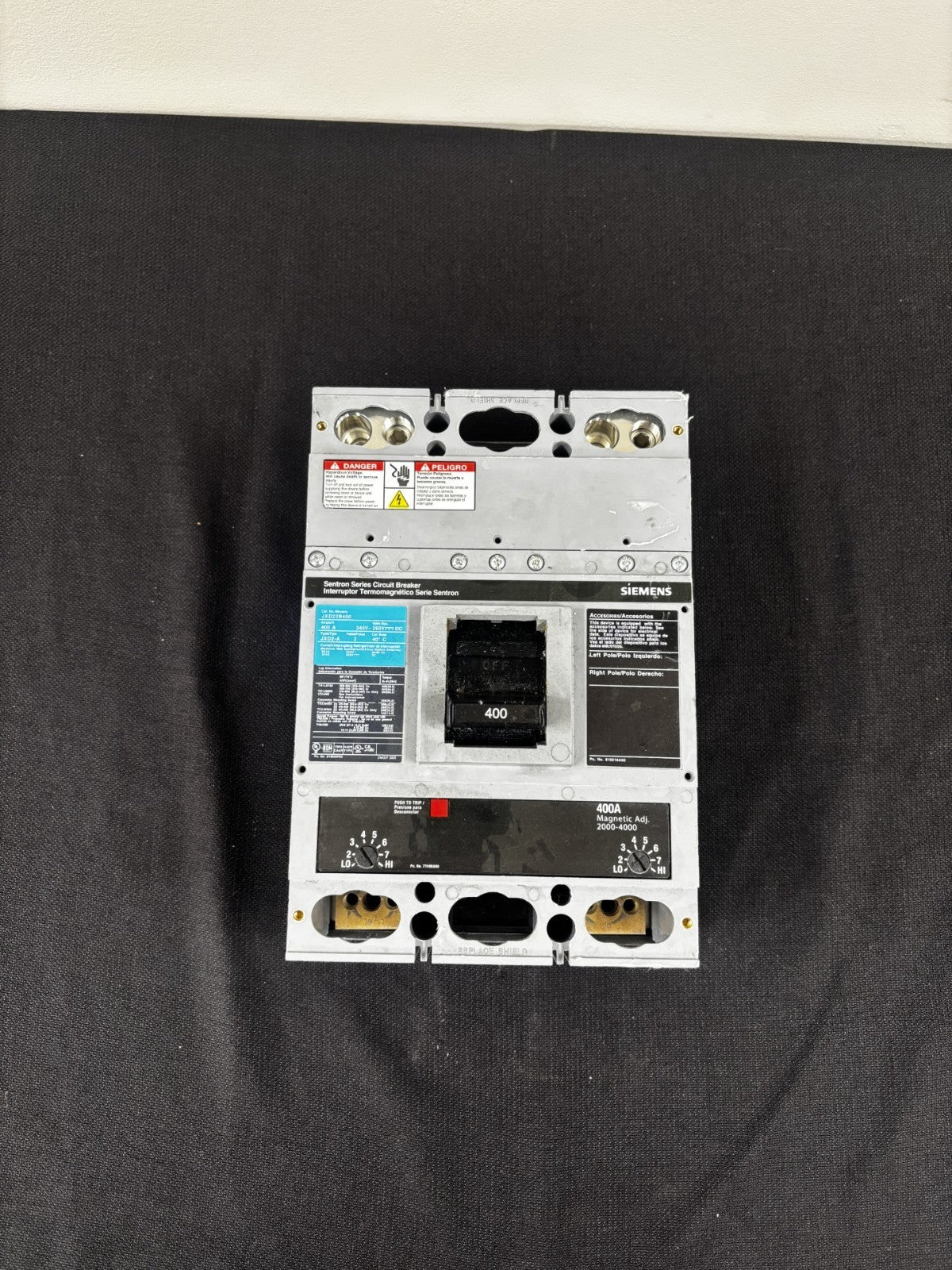

Siemens Sentron Series Molded Case Circuit Breaker
For sale is a Siemens Sentron Series thermal magnetic molded case circuit breaker, Cat. No. JXD22B400. This breaker is rated at 400 Amps, features 2 poles, and is suitable for applications up to 240 VAC / 250 VDC. The breaker includes adjustable instantaneous magnetic trip settings from 2000-4000A.
Ideal for industrial electrical distribution systems, switchgear, MCCs, OEM equipment, and replacement applications.

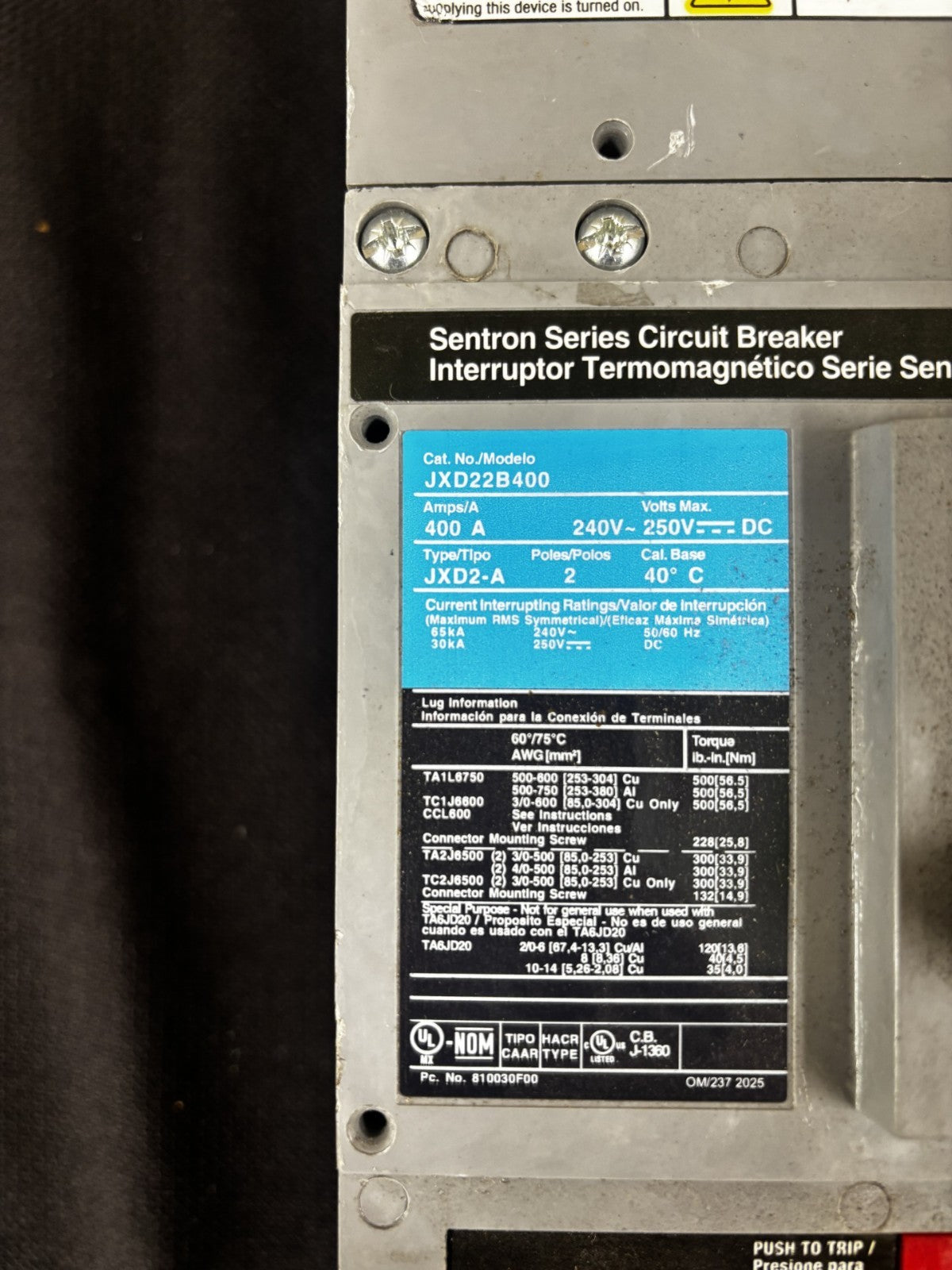

Specifications
- Manufacturer: Siemens
- Series: Sentron
- Catalog Number: JXD22B400
- Type: JXD2-A
- Amperage: 400A
- Number of Poles: 2
-
Voltage Rating:
- 240 VAC
- 250 VDC
- Frequency: 50/60 Hz
- Calibration Base: 40°C
-
Interrupting Capacity:
- 65kA @ 240 VAC
- 30kA @ 250 VDC
-

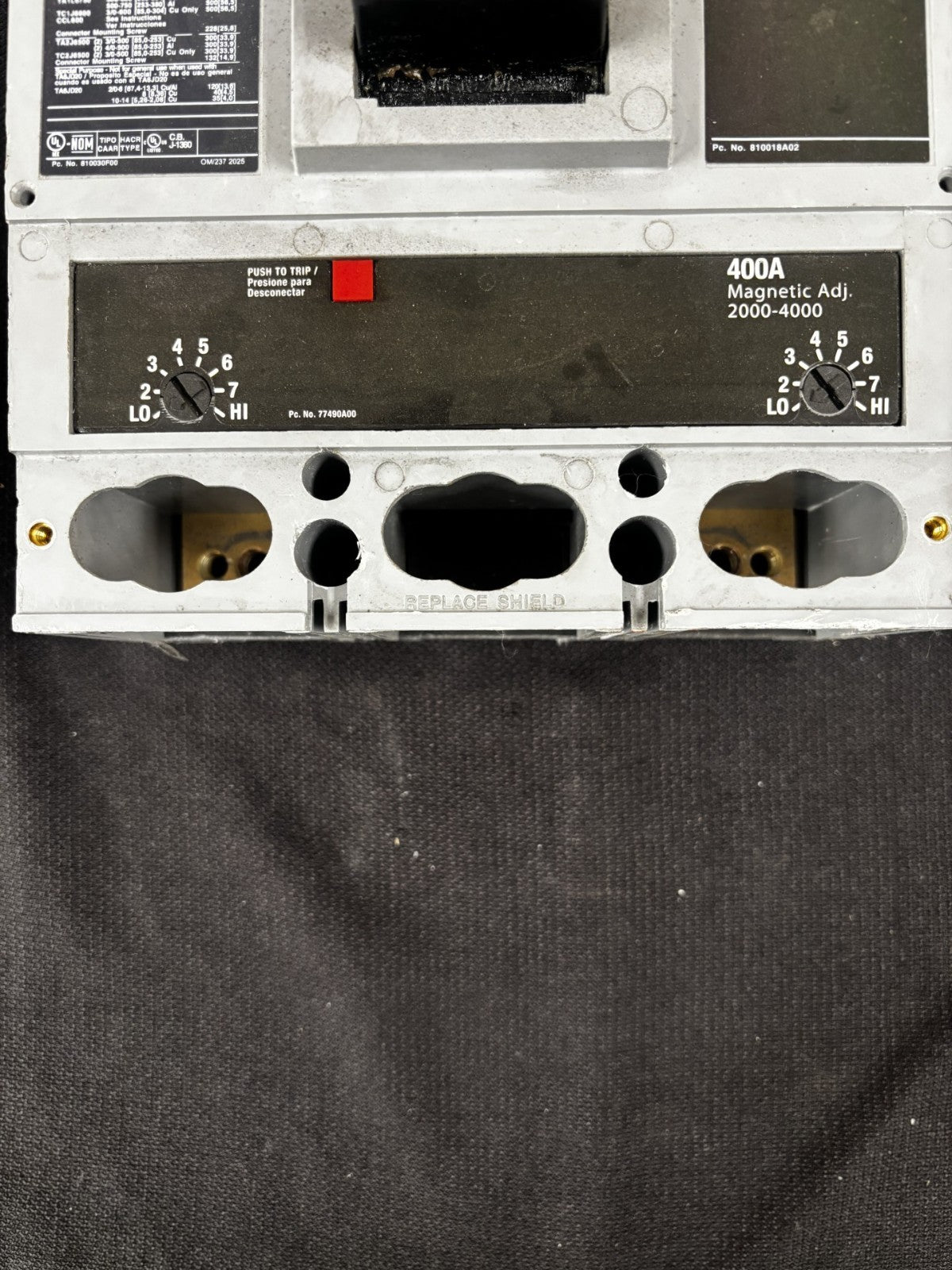

Adjustable Magnetic Trip:
- 2,000–4,000 Amps
- Thermal Magnetic Protection
- HACR Rated
- UL Listed
- Made in USA
Includes
- Siemens JXD22B400 Circuit Breaker Only
- Exactly as pictured
No box, manuals, mounting hardware, or accessories included.
Maximum Amperage: 400 A
Number of Phases: 2
Current Rating: 400A
MPN: JXD22B400
Brand: Siemens
Operation Method: On/Off
Current Type: AC/DC
Type: Main Breaker
Unit Type: Unit
Voltage: 240 VAC / 250 VDC
Model: JXD2-A
Unit Quantity: 1
Application: Commercial, Industrial
