Square D FA36025 25 Amp 3 Pole 600V Molded Case Circuit Breaker Type FA

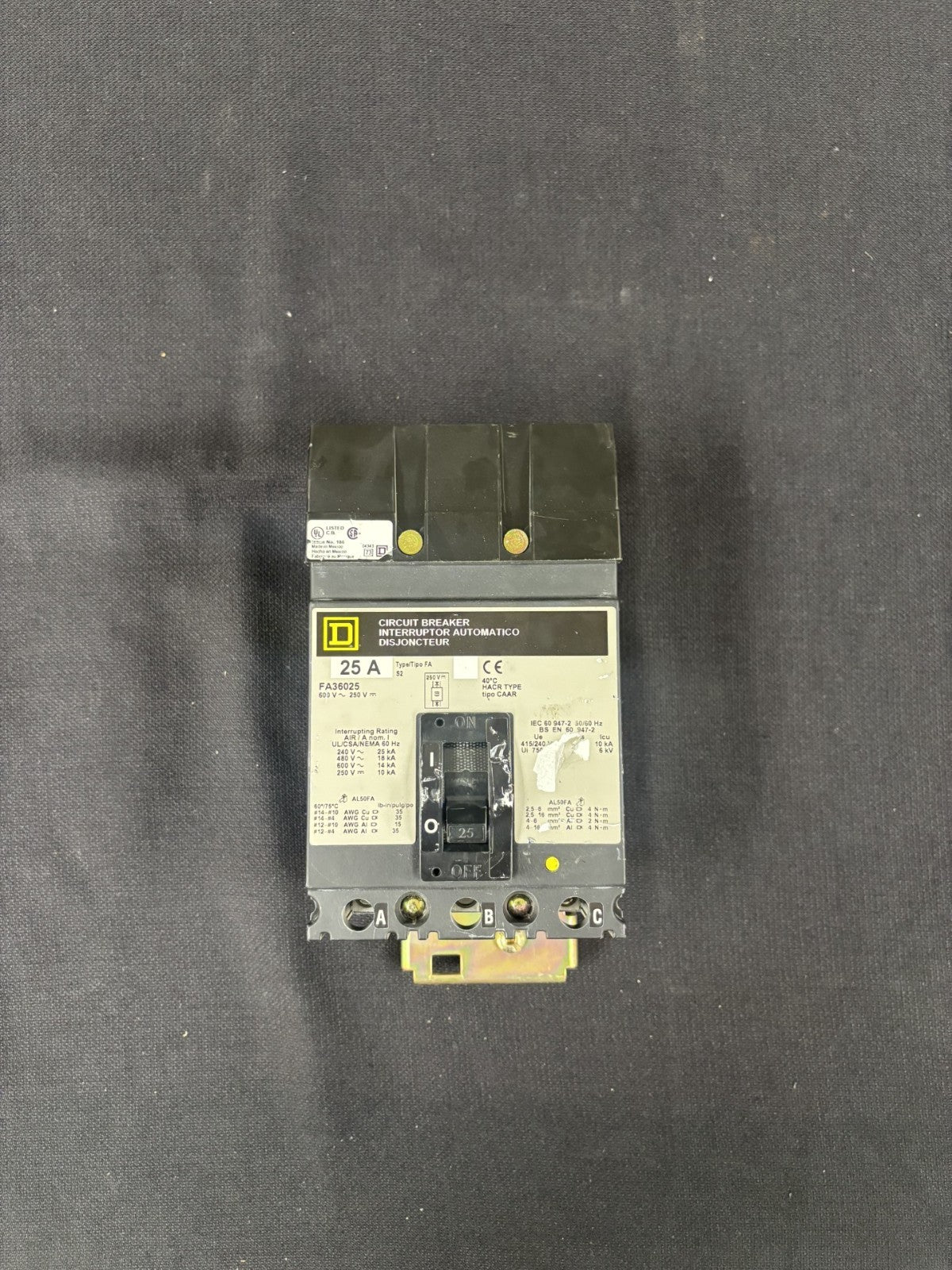

Square D FA36025 industrial molded-case circuit breaker. This 25-amp, three-pole breaker features an I-Line plug-in connection and thermal-magnetic circuit protection. It is intended for compatible Square D commercial and industrial electrical distribution equipment.

You will receive the exact circuit breaker shown in the photographs. No additional accessories, hardware, documentation, or components are included.

SPECIFICATIONS:

• Brand: Square D
• Manufacturer: Schneider Electric/Square D
• Model: FA36025
• MPN: FA36025
• Product Type: Molded-Case Circuit Breaker
• Breaker Type: FA
• Product Family: I-Line

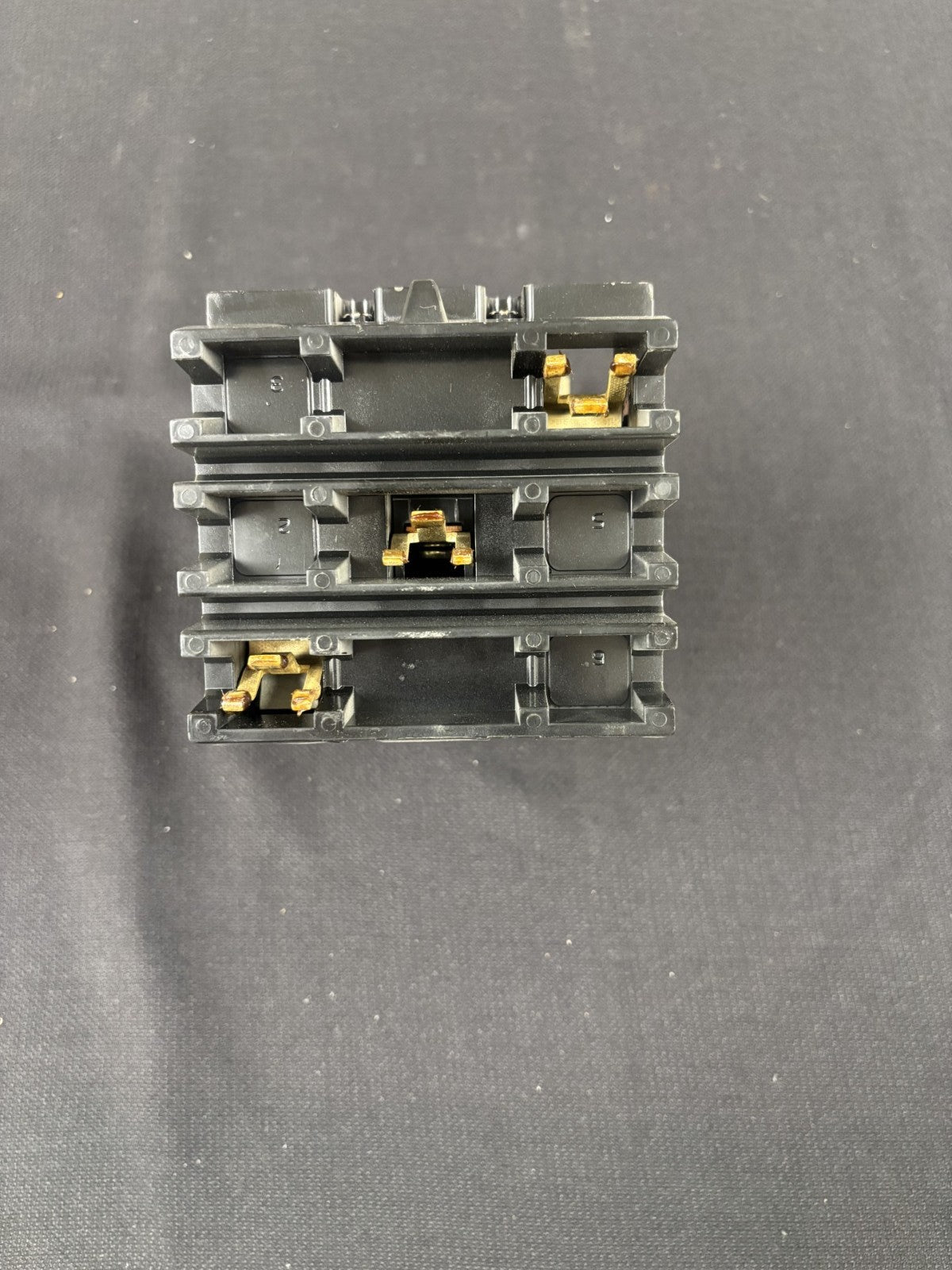

• Mounting Style: I-Line Plug-In
• Current Rating: 25 Amps
• Maximum Amperage: 25 Amps
• Number of Poles: 3
• Number of Phases: 3
• Current Type: AC/DC
• Maximum AC Voltage: 600VAC
• Maximum DC Voltage: 250VDC
• Frequency: 50/60 Hz
• Operating Temperature Rating: 40°C
• Trip Technology: Thermal-Magnetic
• Protection Functions: Long-Time and Instantaneous
• HACR Rated: Yes
• Standards: UL/CSA/NEMA and IEC 60947-2
• Country of Manufacture: Mexico

INTERRUPTING RATINGS:

• 25 kA at 240VAC
• 18 kA at 480VAC
• 14 kA at 600VAC
• 10 kA at 250VDC

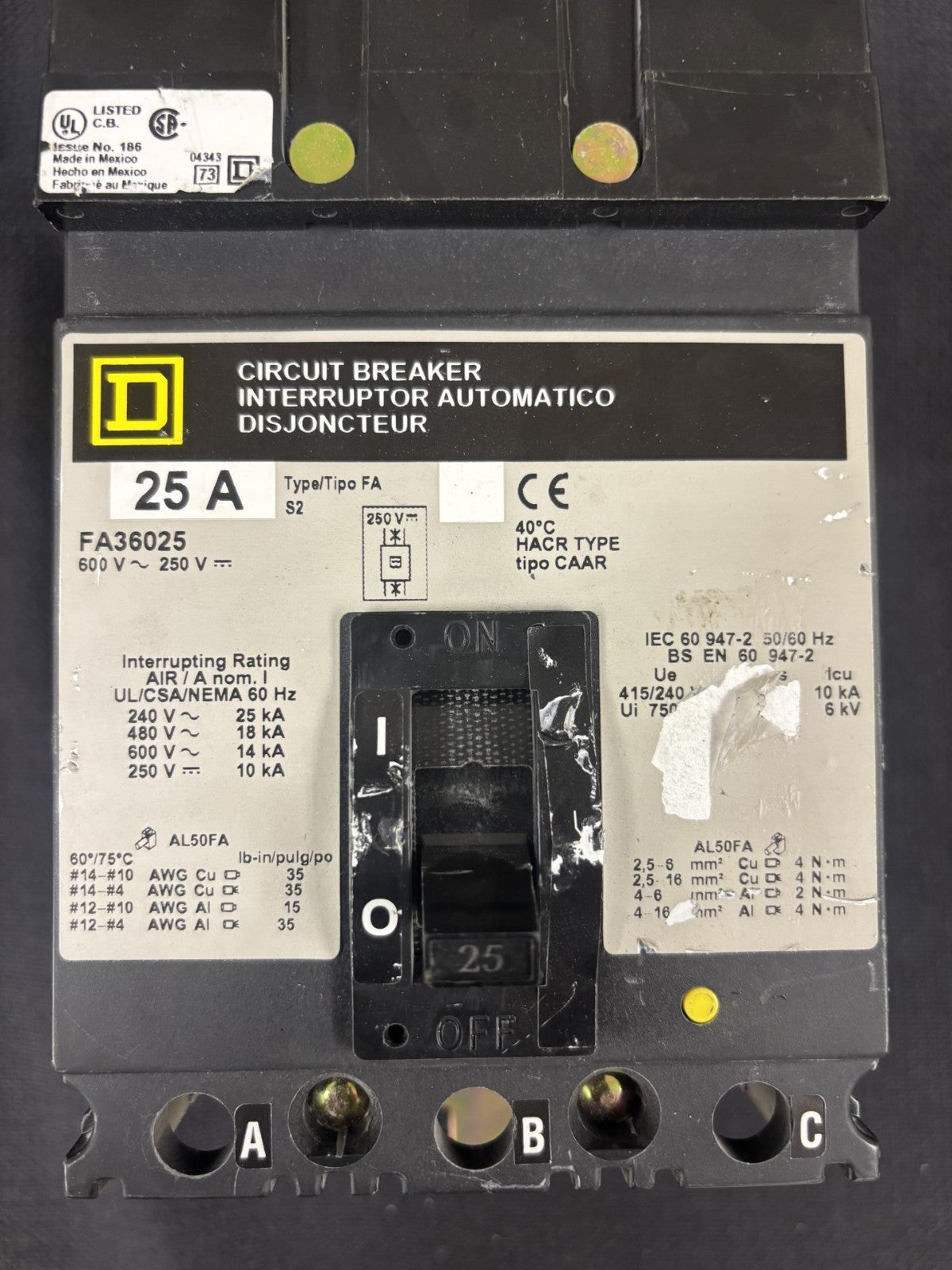

WIRE AND TERMINAL INFORMATION SHOWN ON LABEL:

Copper Conductors:

• #14–#10 AWG copper: 35 lb-in
• #14–#4 AWG copper: 35 lb-in

Aluminum Conductors:

• #12–#10 AWG aluminum: 15 lb-in
• #12–#4 AWG aluminum: 35 lb-in

Terminal Material Marking:

• AL50FA
• Copper or aluminum conductor compatibility as specified on the manufacturer’s label

APPLICATIONS:

• Industrial electrical equipment
• Commercial electrical distribution
• Compatible Square D I-Line panelboards
• Machinery and equipment circuit protection
• HVAC equipment where a compatible HACR-rated breaker is required

IMPORTANT INFORMATION:

This is a used electrical component that has not been electrically tested. The buyer is responsible for confirming the model number, voltage, amperage, interrupting rating, mounting configuration, terminal requirements, and compatibility before purchasing or installing it.

Installation and testing should be performed by a qualified electrician. Please use the photographs as part of the description because they show the exact item and its cosmetic condition.
