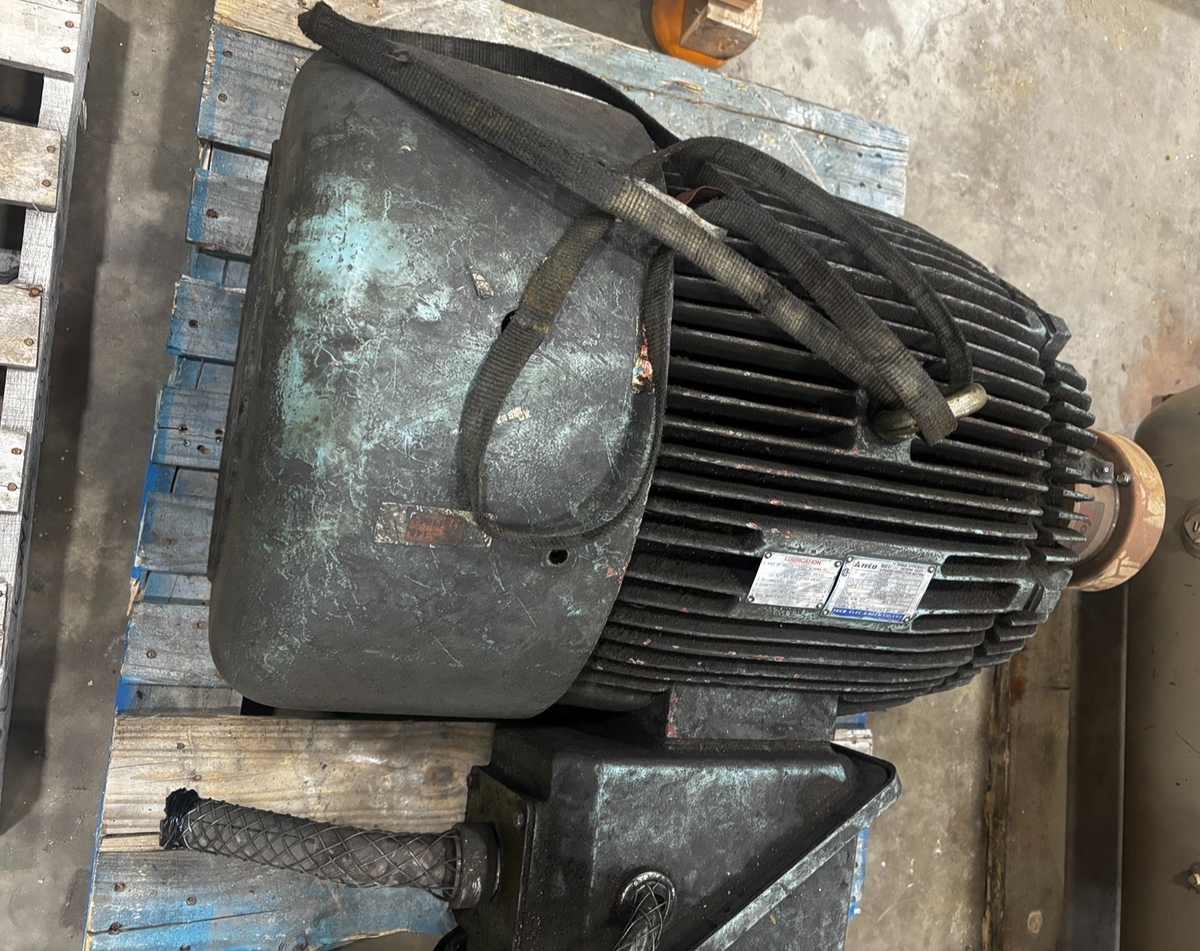

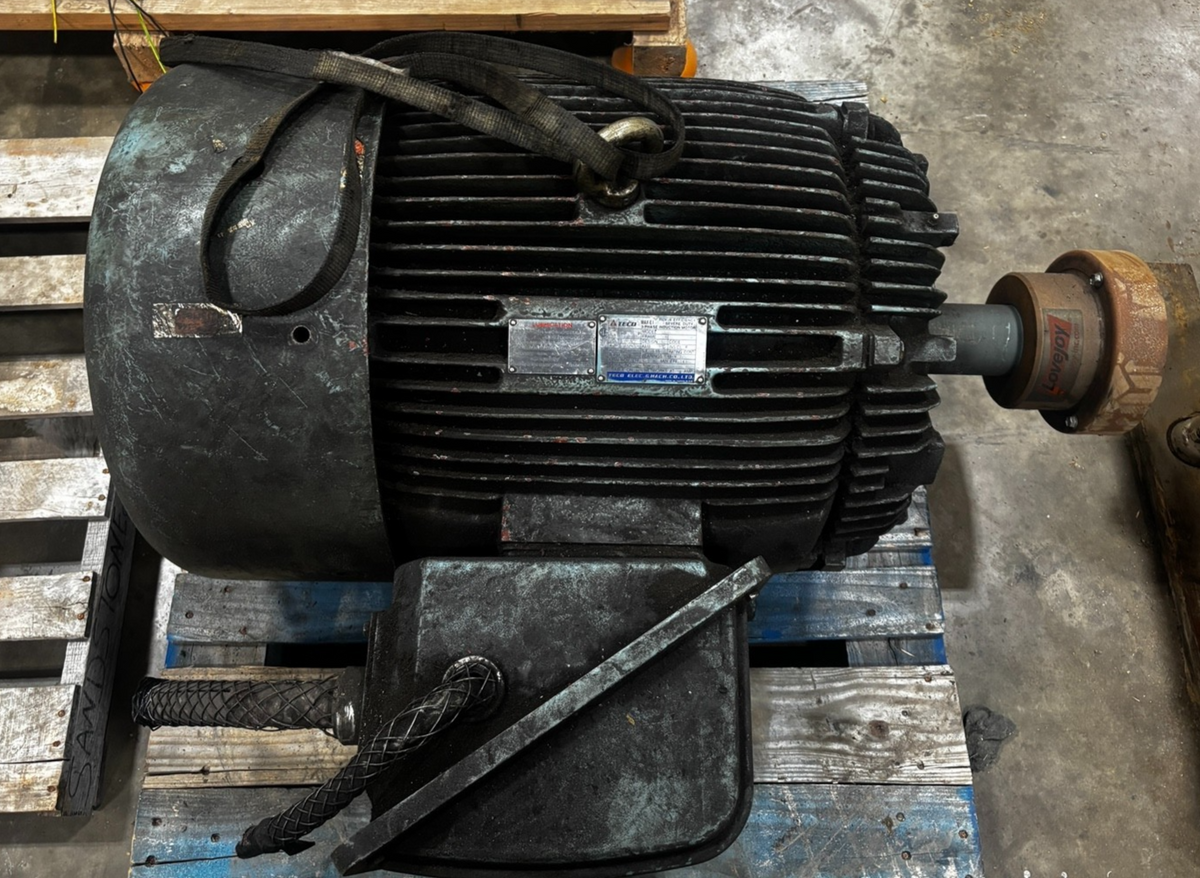

TECO 100 HP Electric Motor 230/460V 1180 RPM 3 Phase TEFC Frame 444T Severe Duty
TECO 100 HP Electric Motor 230/460V 1180 RPM 3 Phase TEFC Frame 444T Severe Duty
Heavy-duty TECO Premium Efficiency Severe Duty Induction Motor designed for demanding industrial applications including pumps, blowers, conveyors, crushers, compressors, mixers, and other heavy equipment.
This motor features a rugged TEFC enclosure, premium efficiency design, and a NEMA 444T frame for long service life in harsh environments.

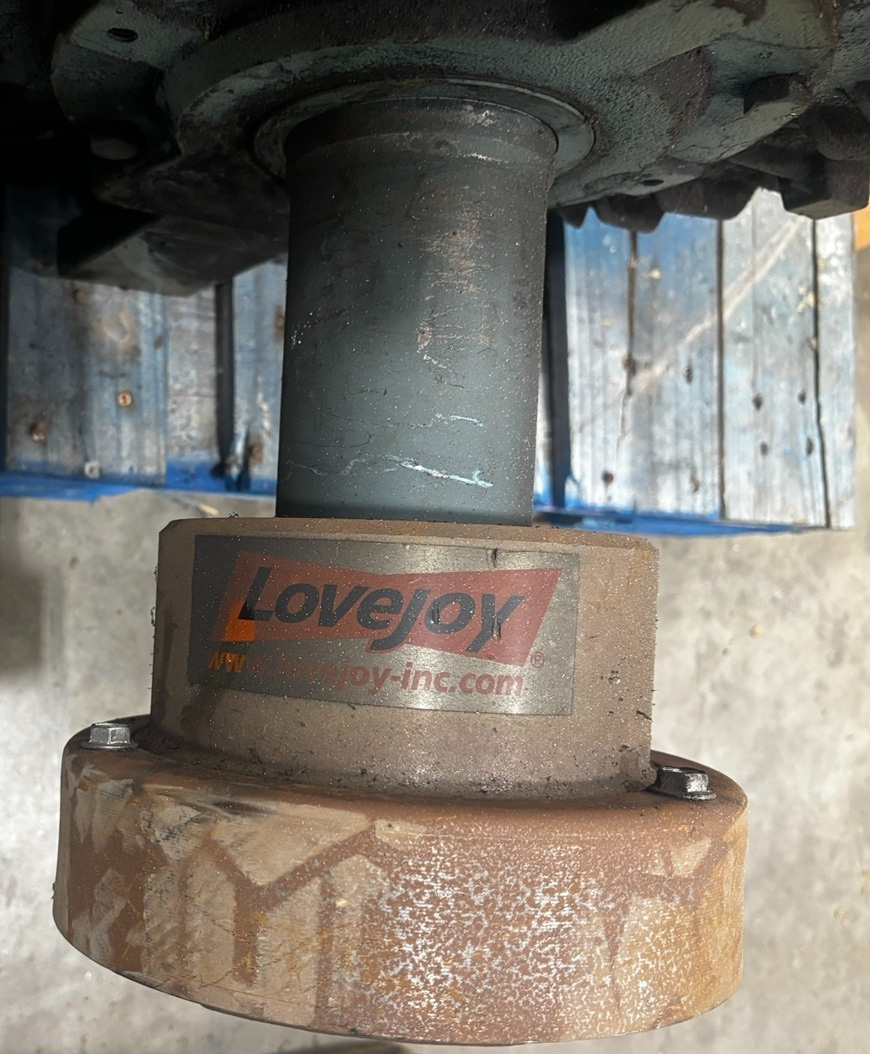

A Lovejoy coupling is installed on the shaft and is included.
Specifications

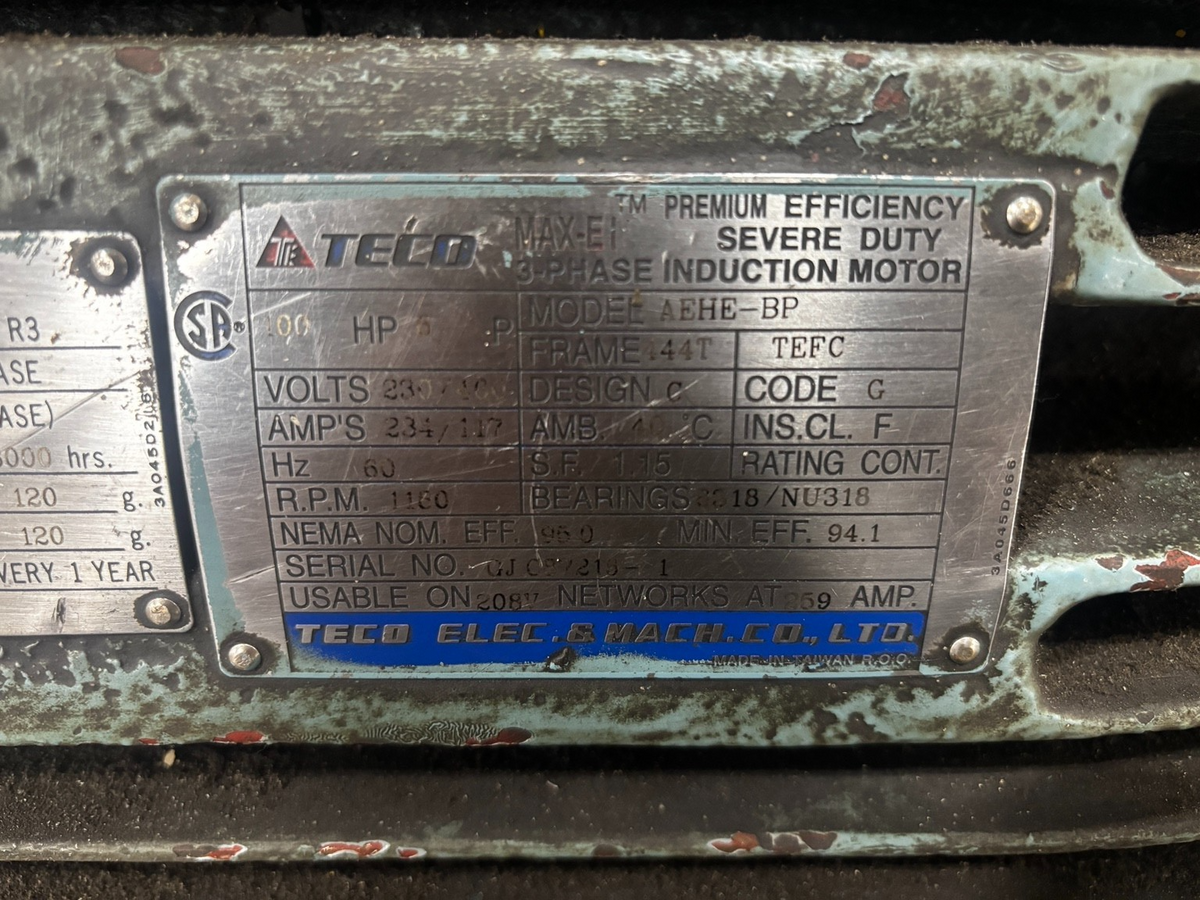

- Manufacturer: TECO Electric & Machinery Co.
- Model: AEHE-BP
- Horsepower: 100 HP
- Phase: 3 Phase
- Voltage: 230/460 VAC
- Frequency: 60 Hz
-
Full Load Amps:
- 234A @ 230V
- 117A @ 460V
- Speed: 1180 RPM
- Frame: 444T
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Design: C
- Code: G
- Insulation Class: F
- Service Factor: 1.15
- NEMA Nominal Efficiency: 95.0%
- Minimum Efficiency: 94.1%
-
Bearings:
- 318 NU318
- Premium Efficiency
- Severe Duty Construction
- Made by TECO Electric & Machinery Co.
Included:
- Lovejoy shaft coupling
- Terminal box
- Motor only (exactly as pictured)
Applications
- Industrial Pumps
- Cooling Towers
- Compressors
- Conveyors
- Fans & Blowers
- Crushers
- Agitators
- Manufacturing Equipment
Shipping
- Ships via LTL Freight
- Buyer may arrange their own freight carrier
- Forklift available for loading
- Local pickup welcome
Actual Rated Input Voltage: 230/460 VAC
Special Motor Construction: Severe Duty Motor
Base RPM: 1180 RPM
MPN: AEHE-BP
Insulation Class: F (Max 311°F)
Current Type: AC
Unit Type: Unit
Service Factor: 1.15
Unit Quantity: 1
NEMA Frame Suffix: T
Rated/Full-Load Torque: Approximately 446 lb-ft
Full Load Amps: 234/117 A
Rated Load (HP): 100 HP
NEMA Design Letter: Design C (High Starting/Locked-Rotor Torque)
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Shaft Type: Keyed
AC Motor Type: Induction/Asynchronous
Mounting Type: Foot-Mounted
Brand: TECO
Reversible/Non-Reversible: Reversible
Protection Against Liquids: Dripping Water
IP Rating: IP55
Nominal Rated Input Voltage: 230/460 V
Model: AEHE-BP
AC Phase: Three Phase
Country of Origin: Taiwan
Protection Against Solids: Dust Tight
