2022 Eaton ATC3C3C41200XRU 1200A 480V 3PH 4-Pole Automatic Transfer Switch ATS

Name: 2022 Eaton ATC3C3C41200XRU 1200A 480V 3PH 4-Pole Automatic Transfer Switch ATS
Brand: Eaton
SKU: Elec-26
Price: 15000.00 USD
Availability: InStock

$15,000.00

Eaton 1200 Amp Automatic Transfer Switch – ATC-300+ Controller – 480V – 3 Phase – 4 Pole

For sale is an industrial Eaton automatic transfer switch designed for commercial, institutional, generator standby and other critical-power applications.

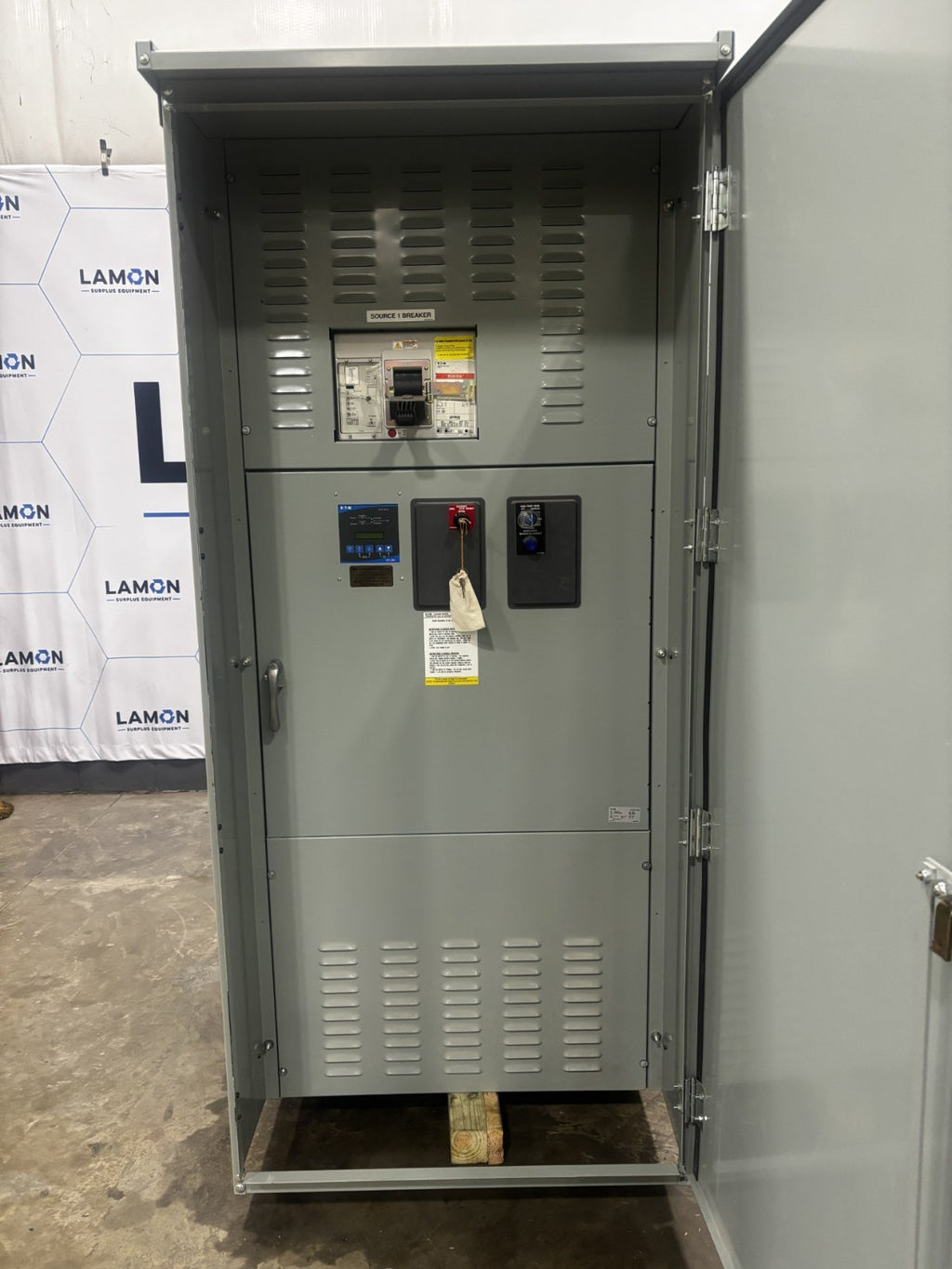

This is a substantial 1200-amp, 480-volt, three-phase, four-pole automatic transfer switch equipped with Eaton's ATC-300+ automatic transfer switch controller.

Identified Specifications

Manufacturer: Eaton
Equipment Type: Automatic Transfer Switch / ATS

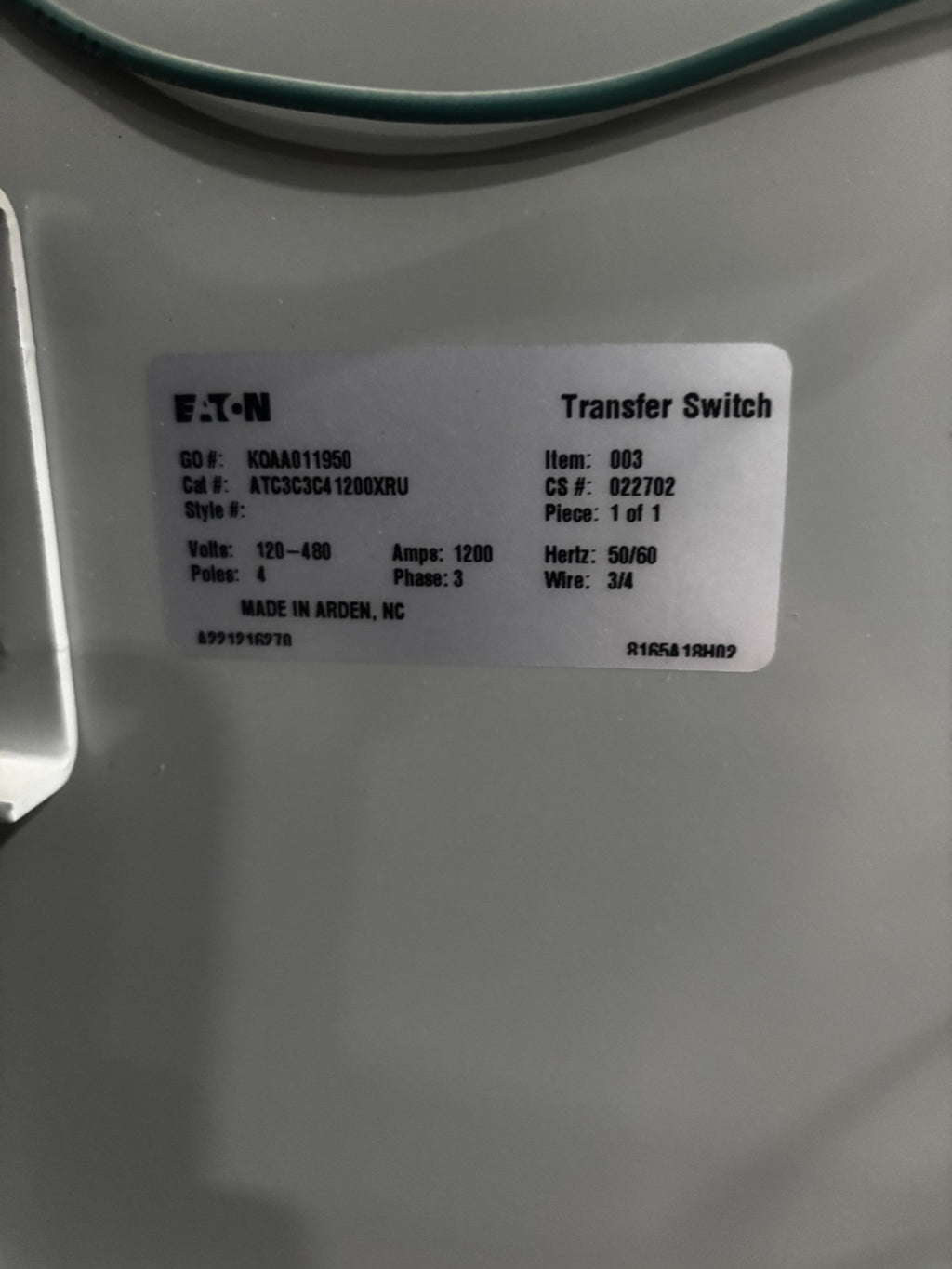

Catalog Number: ATC3C3C41200XRU

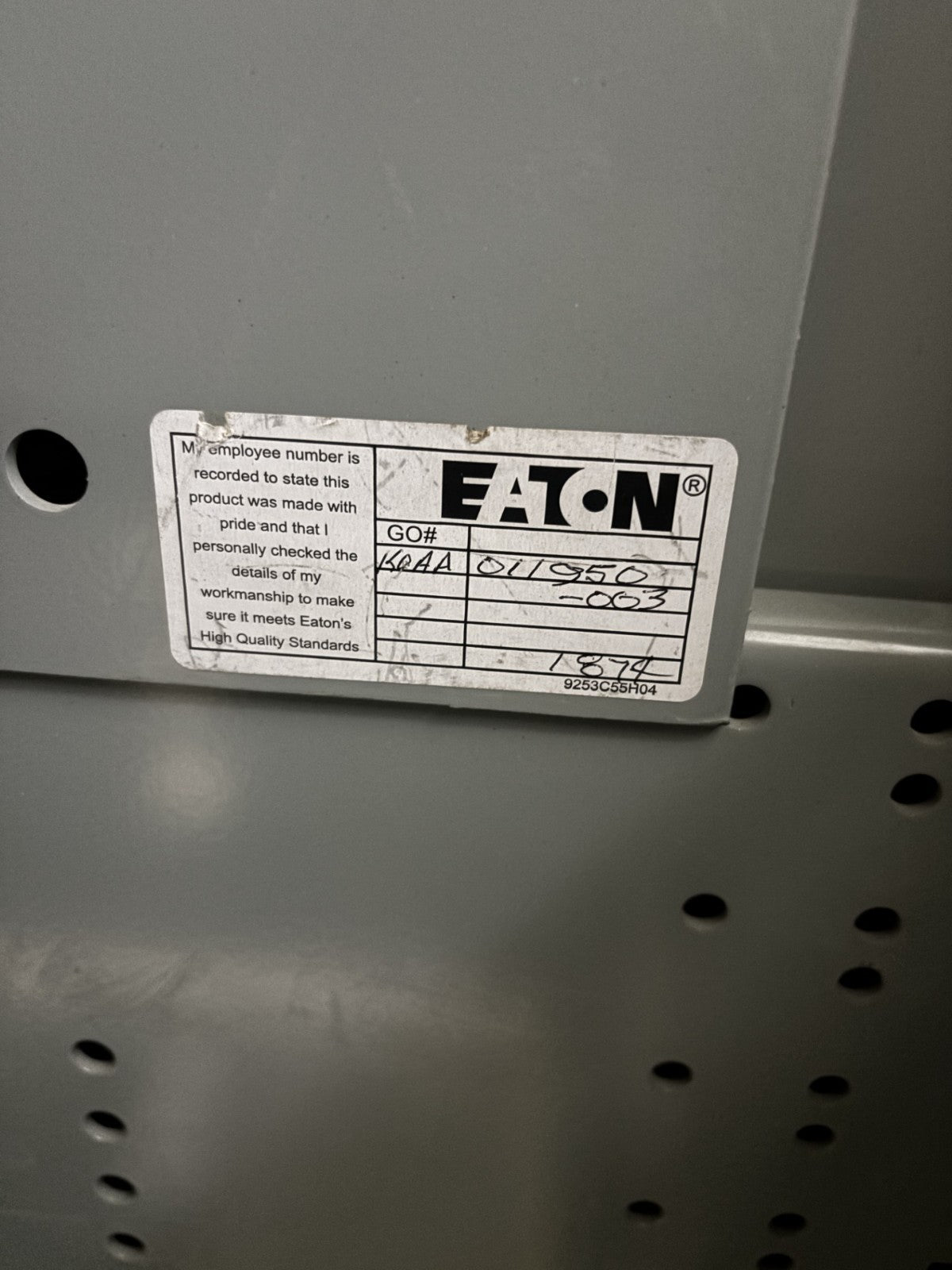

GO Number: KOAA011950
Rated Current: 1200 Amps
Voltage: 480 VAC
Frequency: 60 Hz
Phase: 3 Phase
Number of Poles: 4 Pole

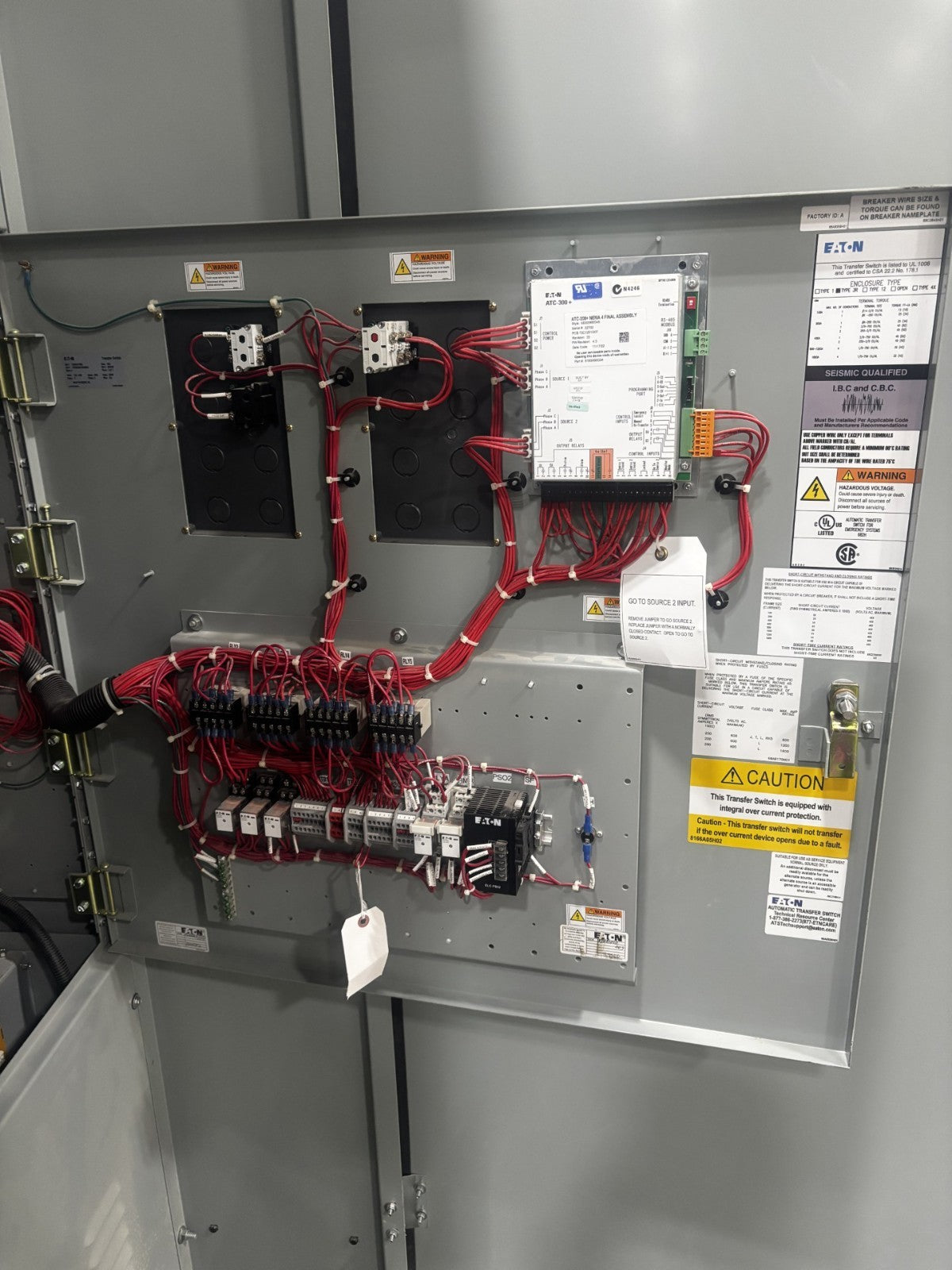

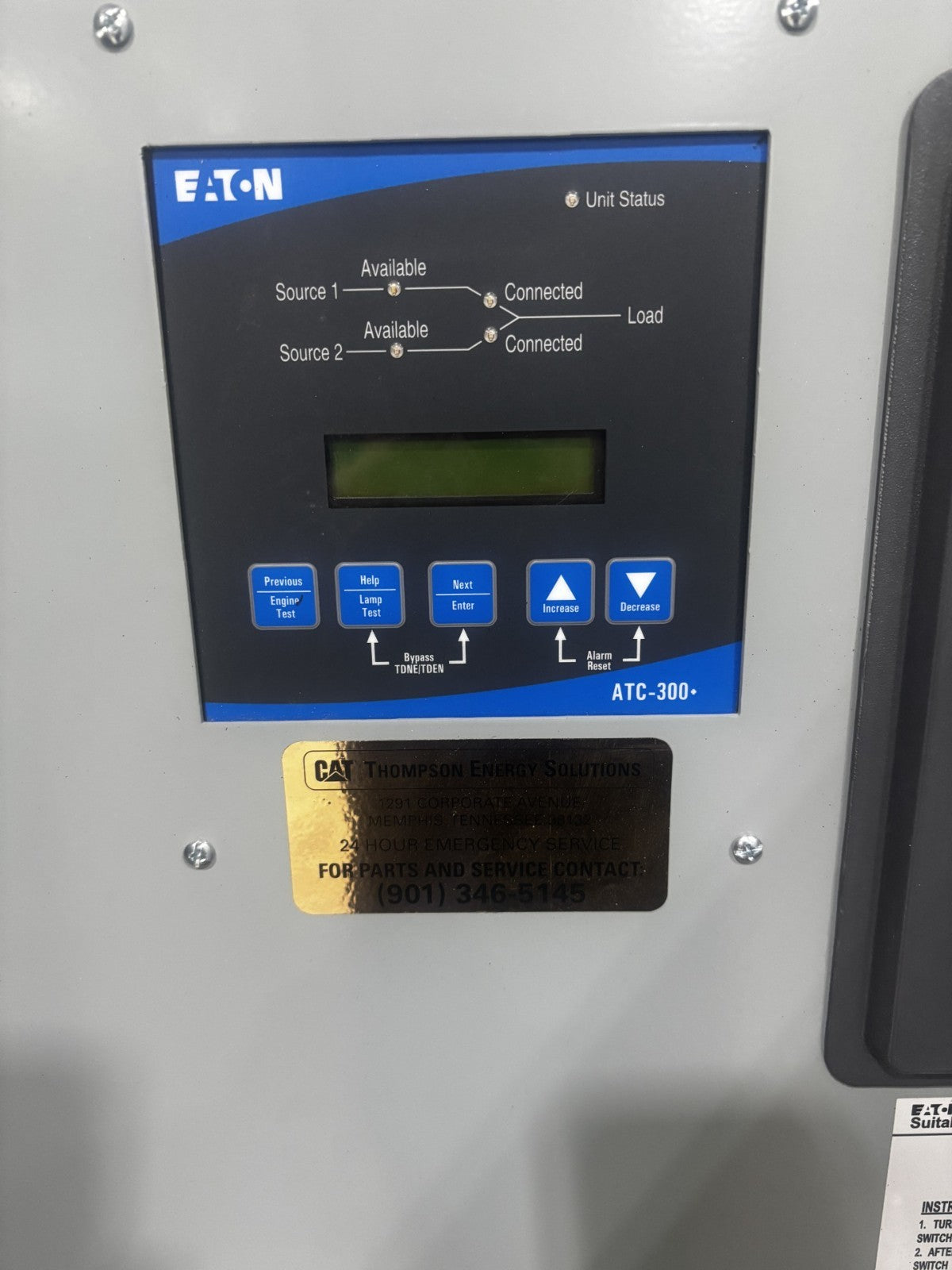

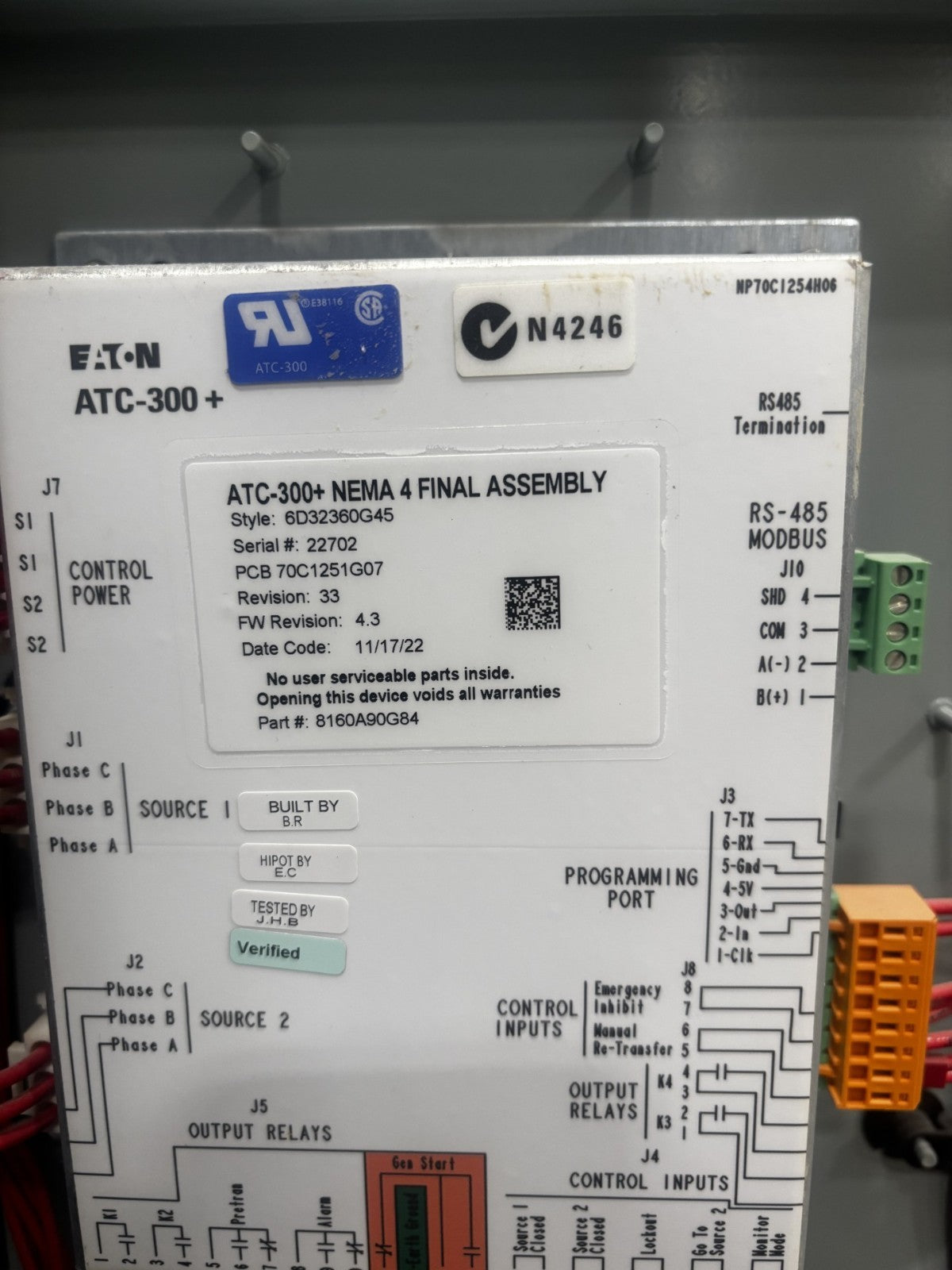

Controller: Eaton ATC-300+
Transition: Open-transition / 3-position transfer configuration

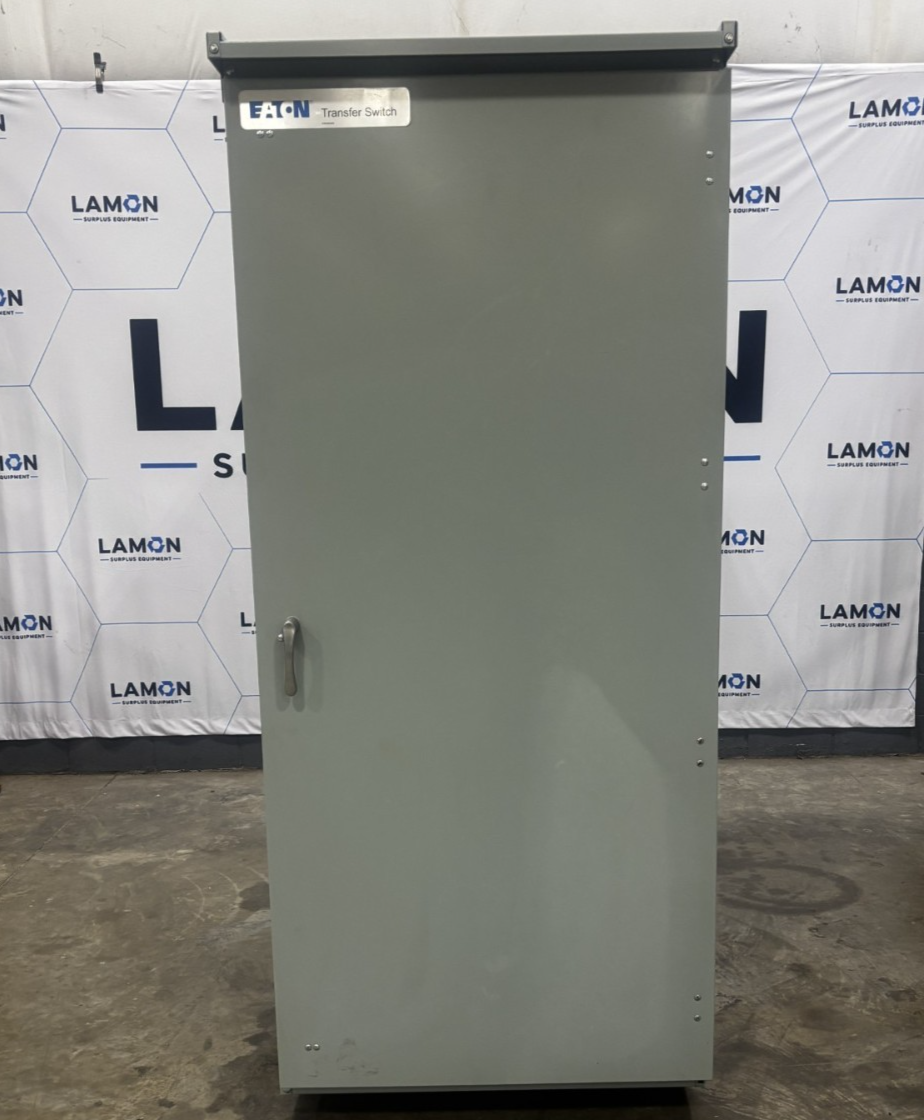

Enclosure: NEMA 3R
Mounting: Floor-standing
Application: Generator / utility automatic transfer

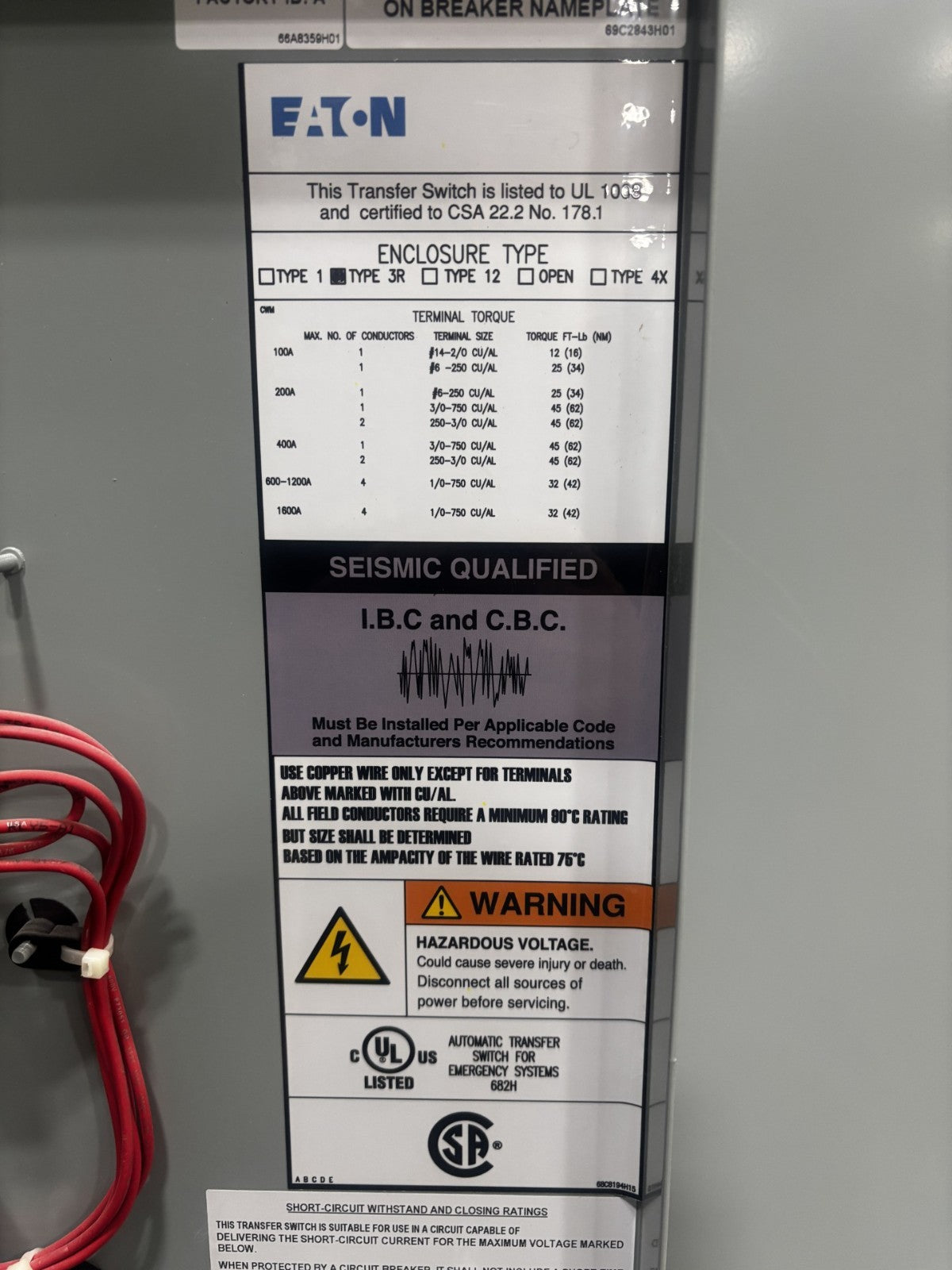

Certification: UL 1008 markings visible
Seismic Qualified: Marking/documentation present

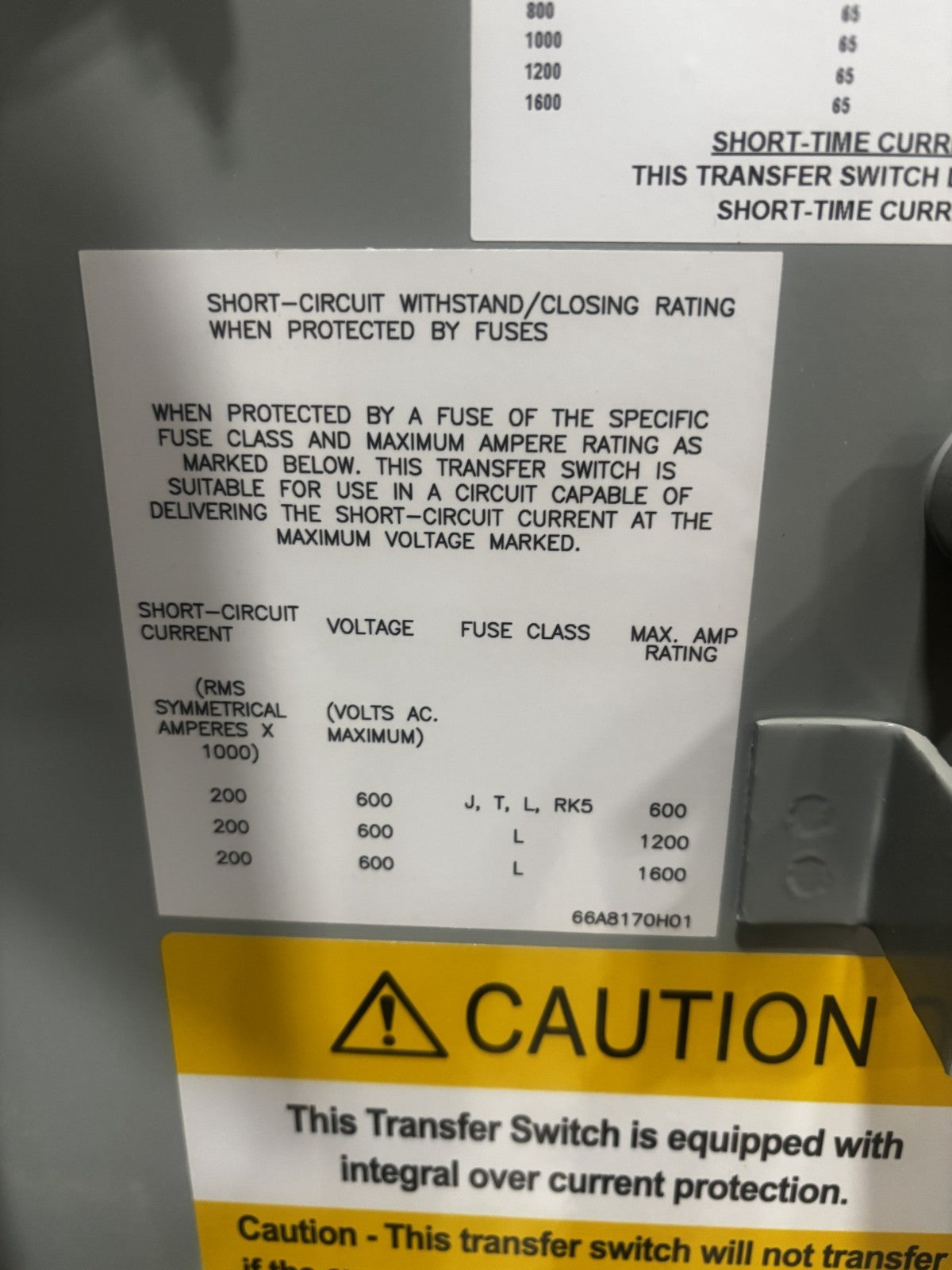

Integral Overcurrent Protection: Equipped

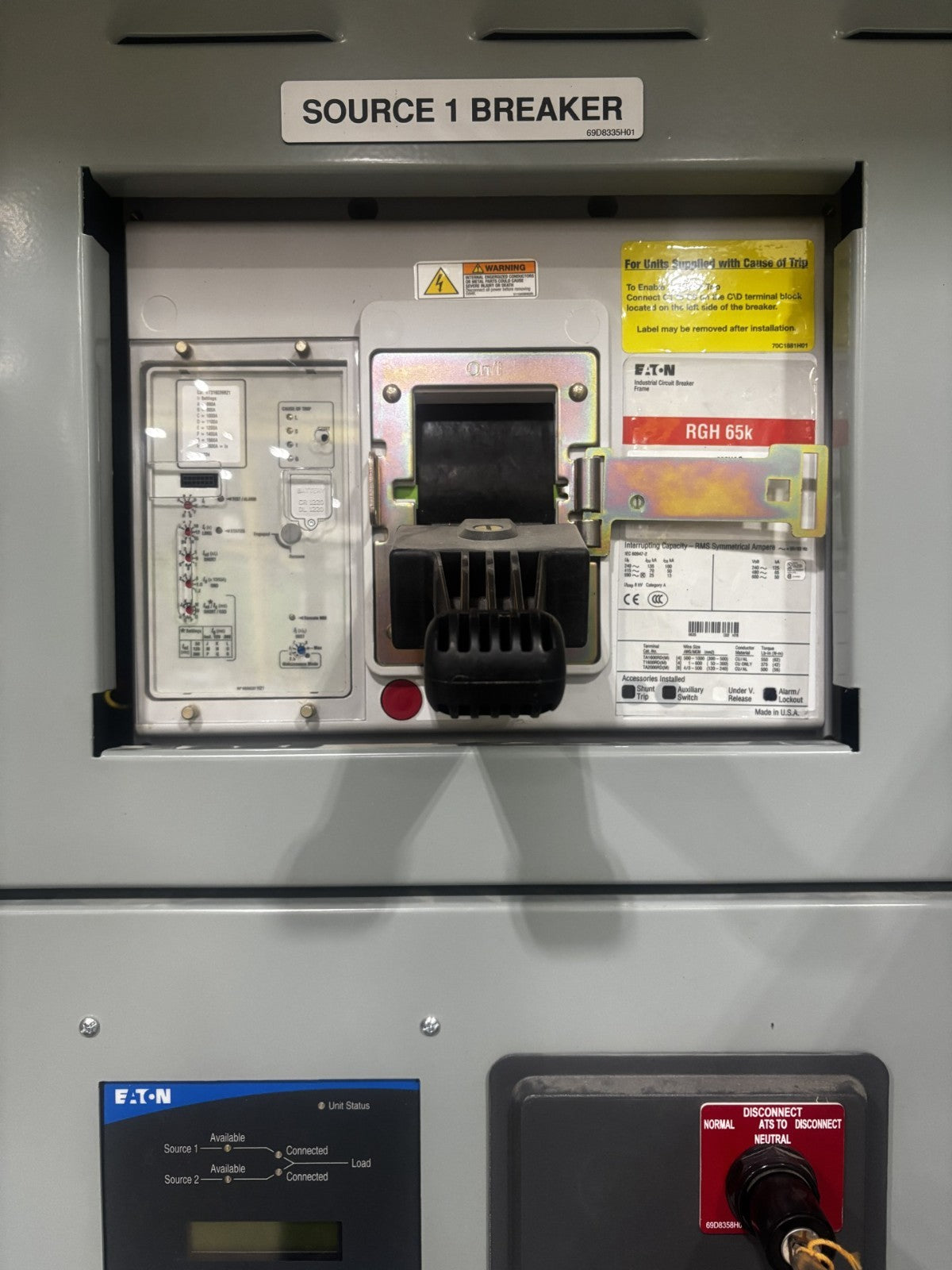

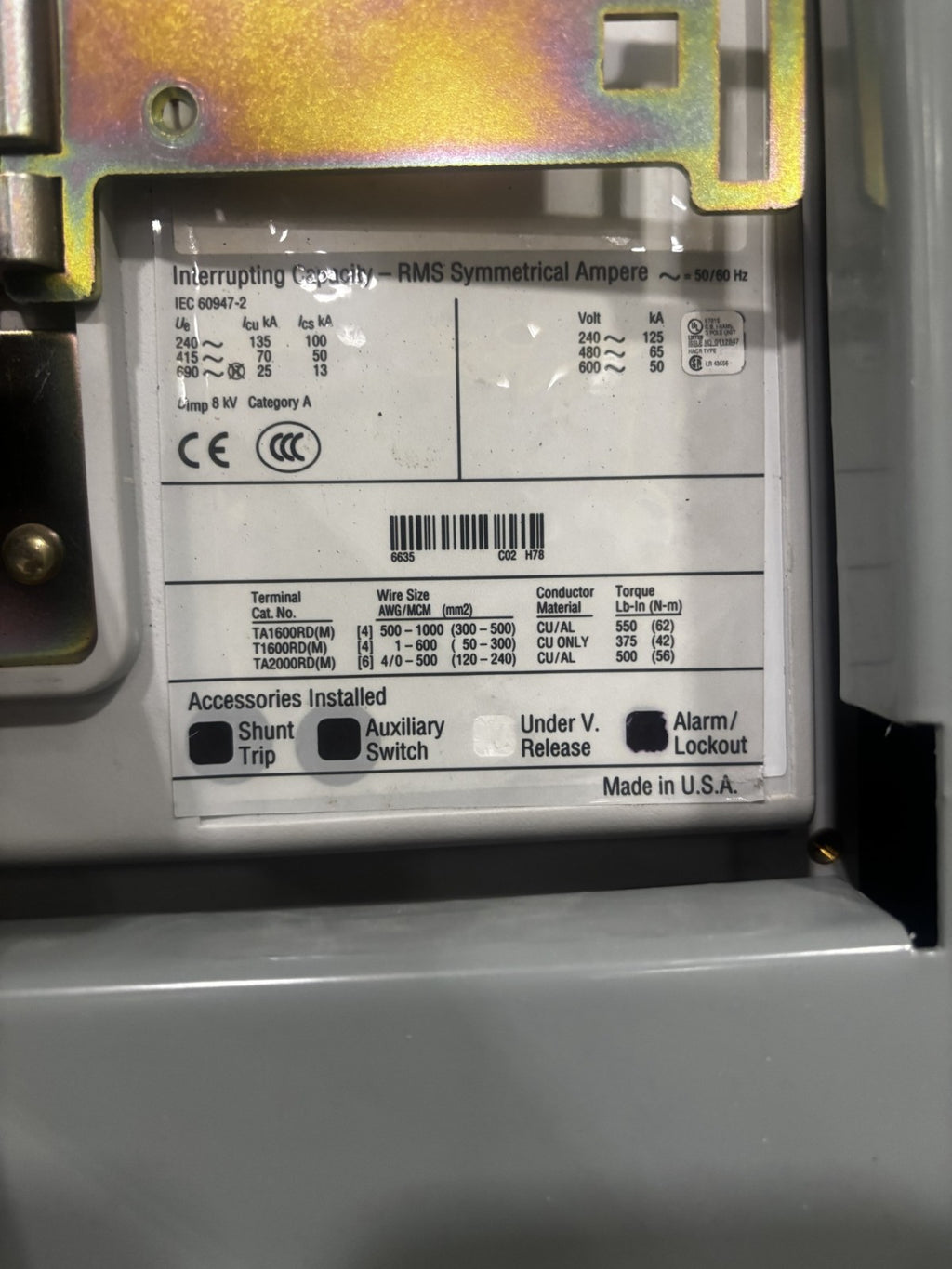

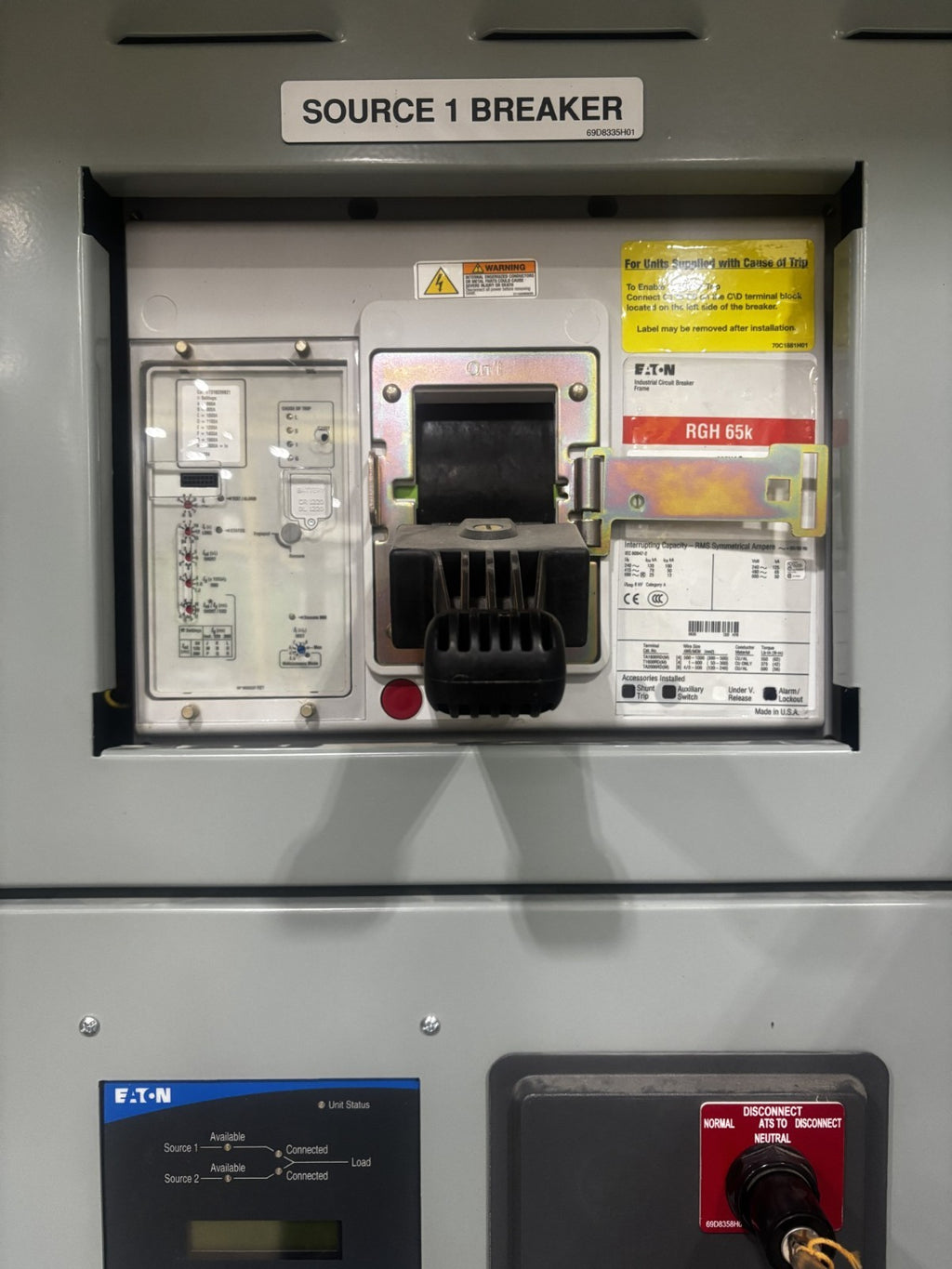

Source 1 Breaker: Included

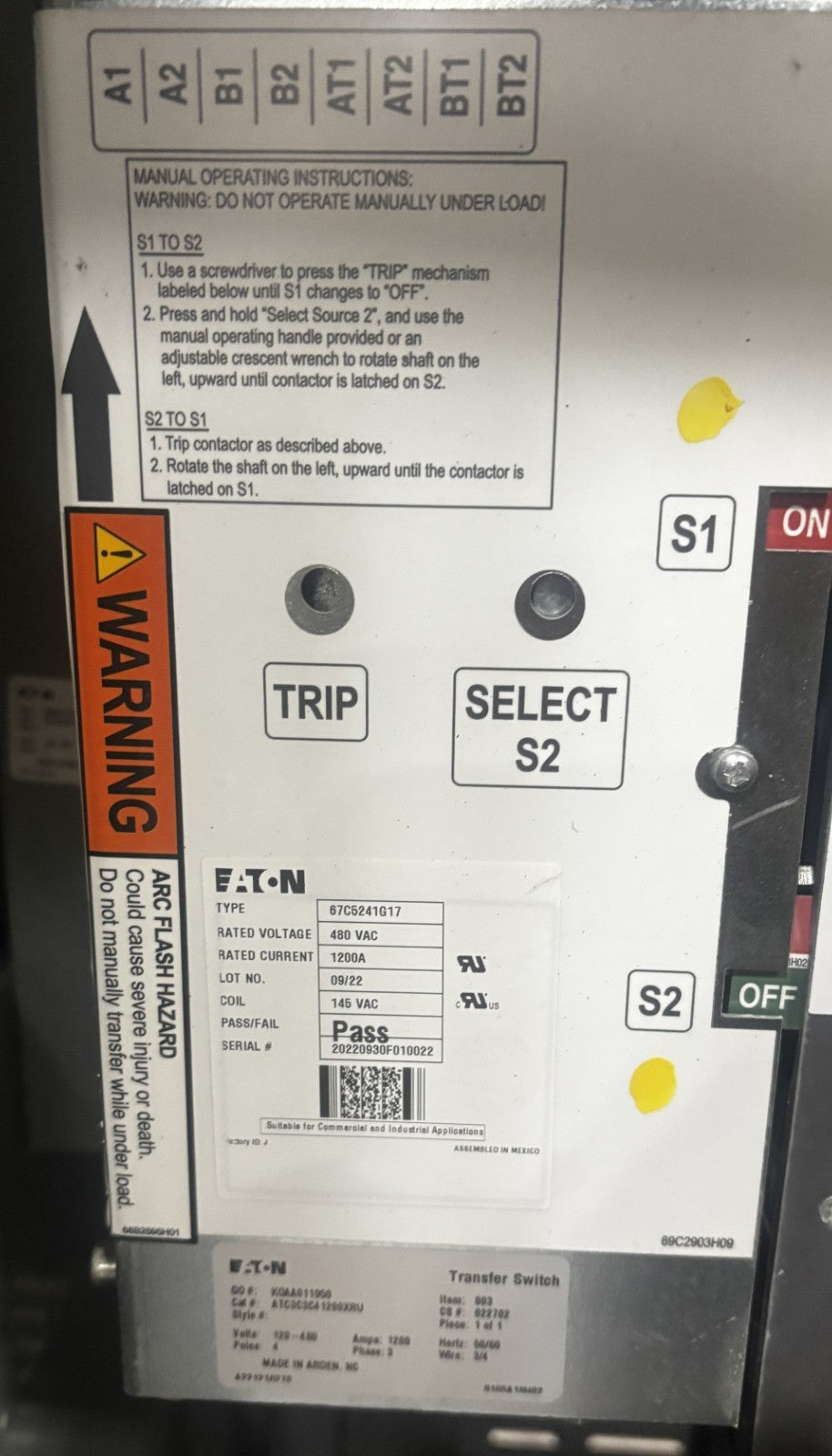

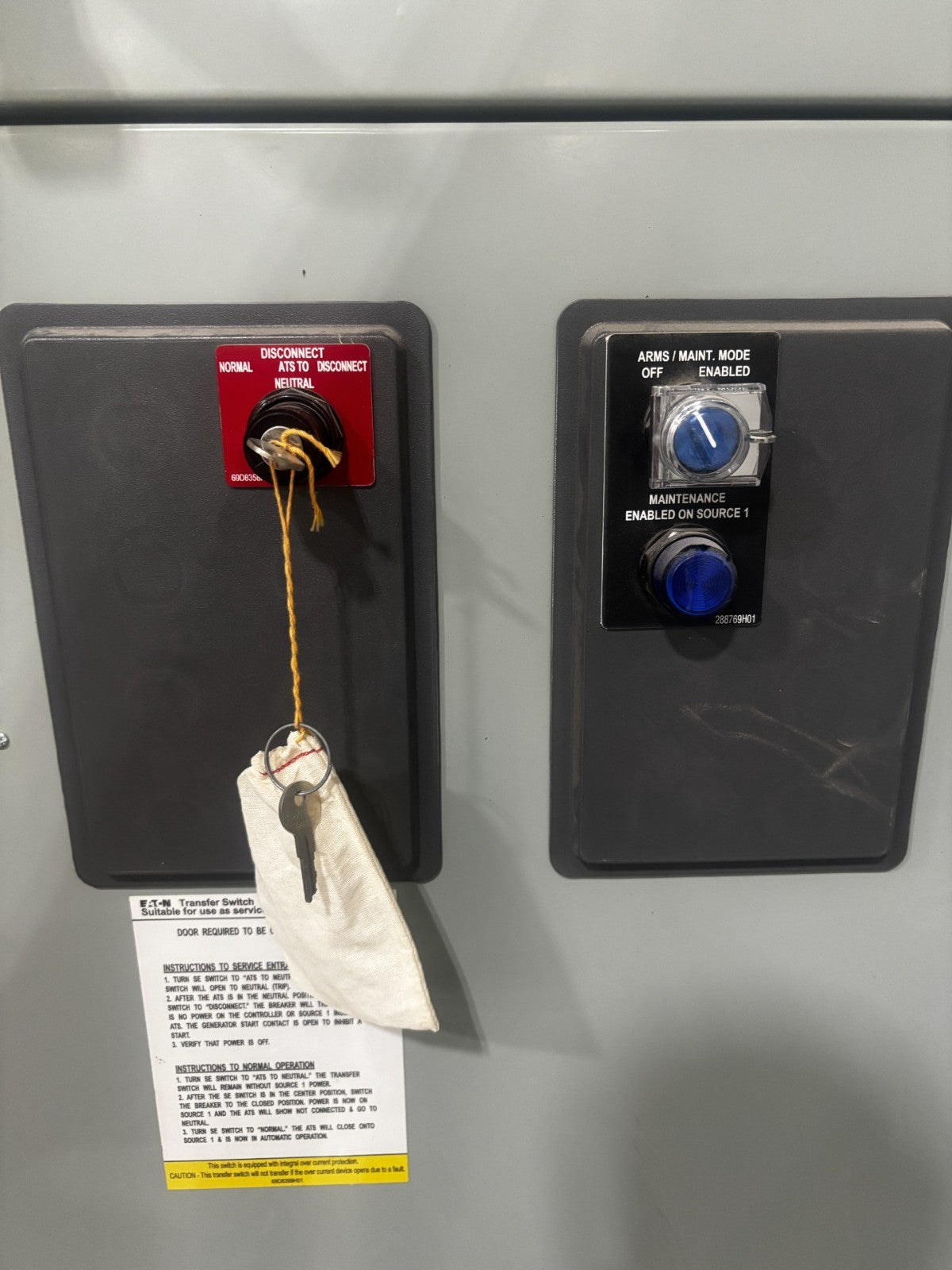

Manual operating provisions: Present
Load shed controls: Present
Modbus / communication option: Factory test paperwork lists MODBUS communication
Factory Test Date: December 14, 2022

Eaton lists its ATC-300+ transfer-switch family for critical standby power applications, with configurations extending through 1200A and higher and voltages through 600 VAC. Eaton

Factory Documentation Included

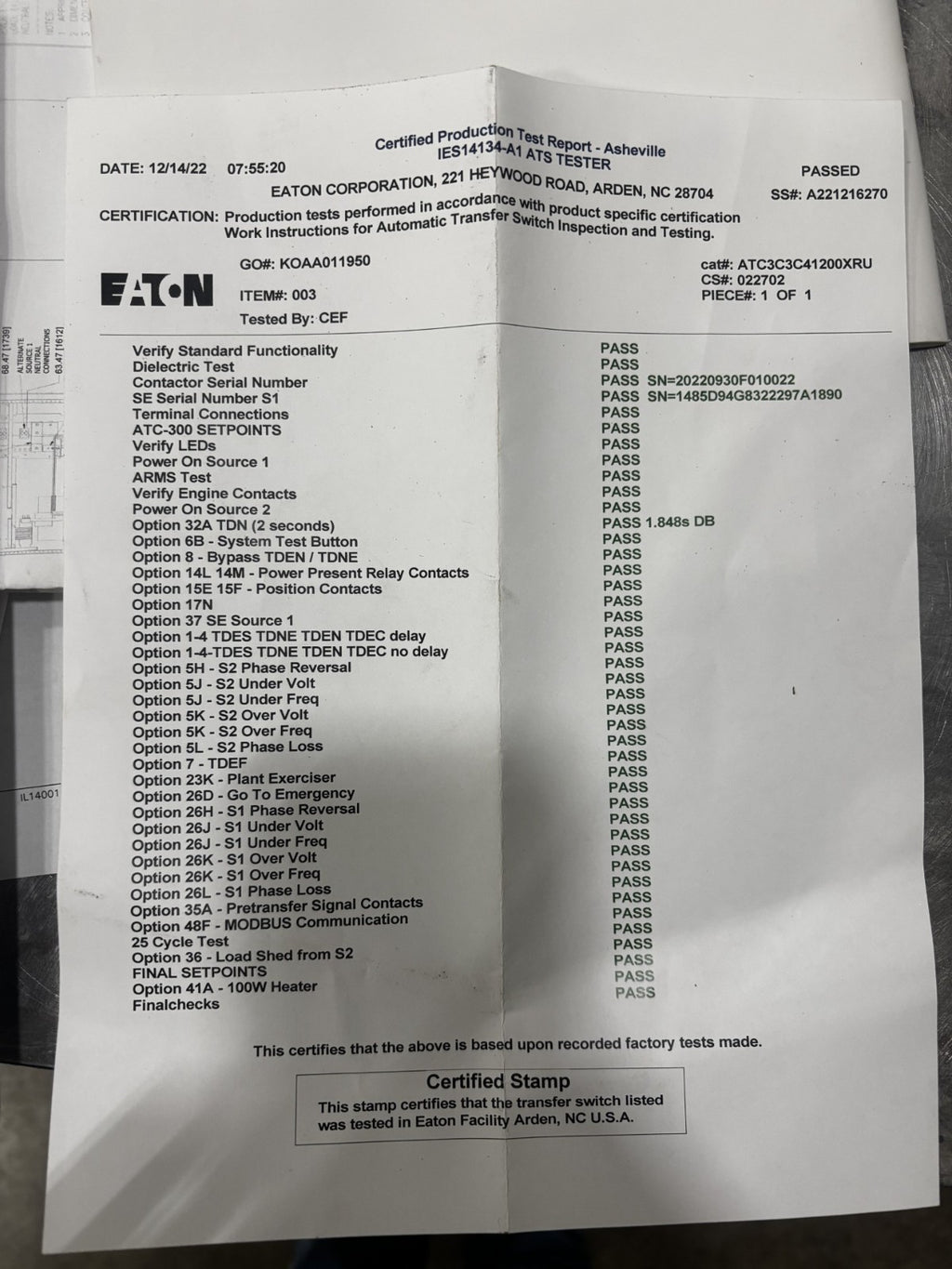

A major selling point on this unit is the accompanying Eaton Certified Production Test Report.

The report identifies:

Catalog #: ATC3C3C41200XRU
GO #: KOAA011950
Item #: 003
Test Date: 12/14/2022

The factory report indicates PASS for numerous functions, including standard functionality, dielectric testing, terminal connections, ATC-300 setpoints, source operation, engine contacts, phase reversal, under/over voltage, under/over frequency, phase loss, plant exerciser, emergency transfer functions, MODBUS communication, cycle testing, load shed and final checks.

Important: This paperwork documents Eaton's original factory testing. We are not representing it as a current field/load test unless you have subsequently tested the unit yourself.

Condition

This unit is used and in excellent physical condition.

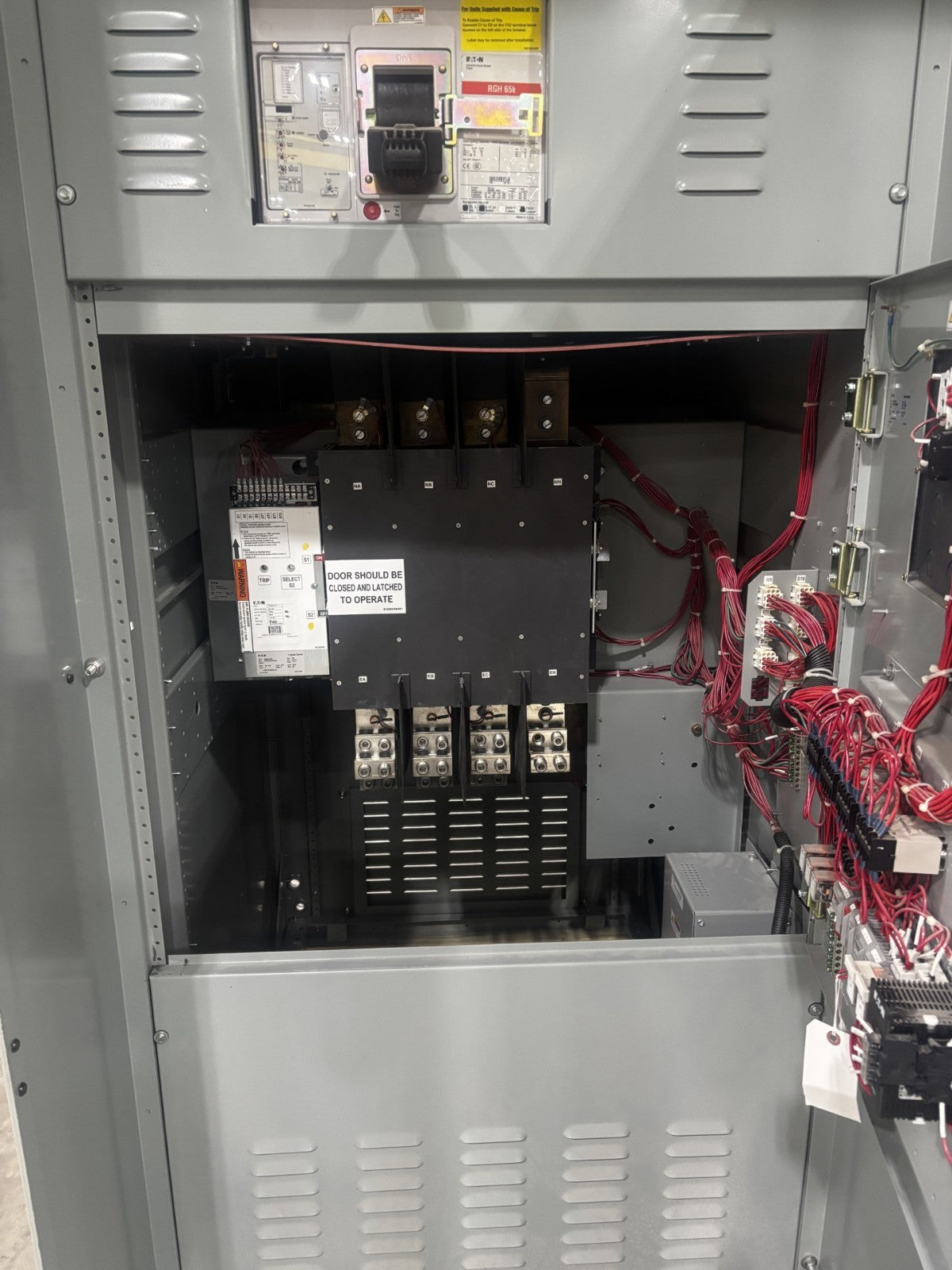

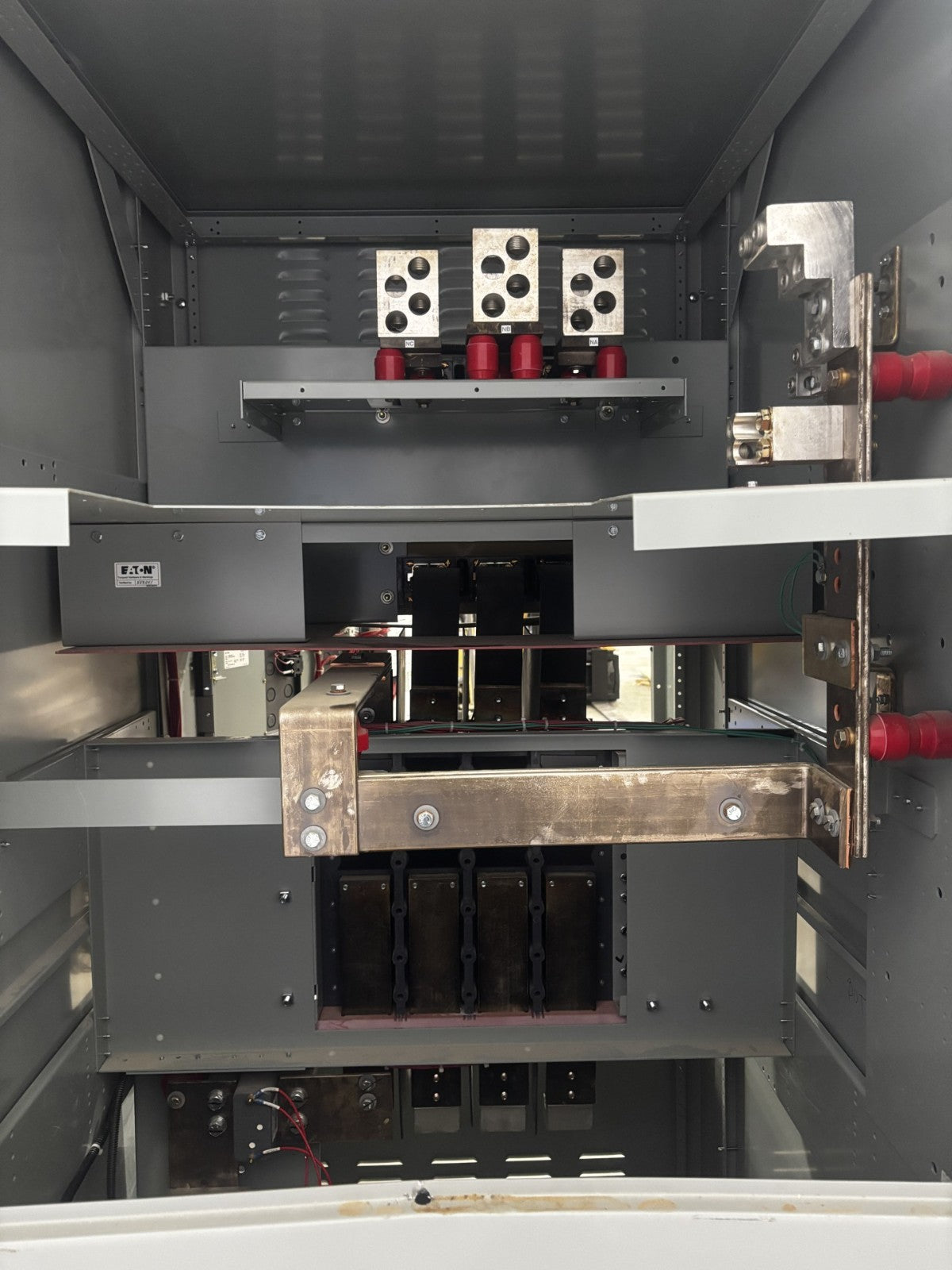

The enclosure is clean, and the interior appears exceptionally well maintained. Buswork, breaker assemblies, controller, terminals, wiring and switching components appear complete and clean based on inspection.

There may be minor scratches, marks, dust or other cosmetic evidence of prior installation, handling or storage.

Please review all photographs carefully. The actual unit pictured is the unit being sold.

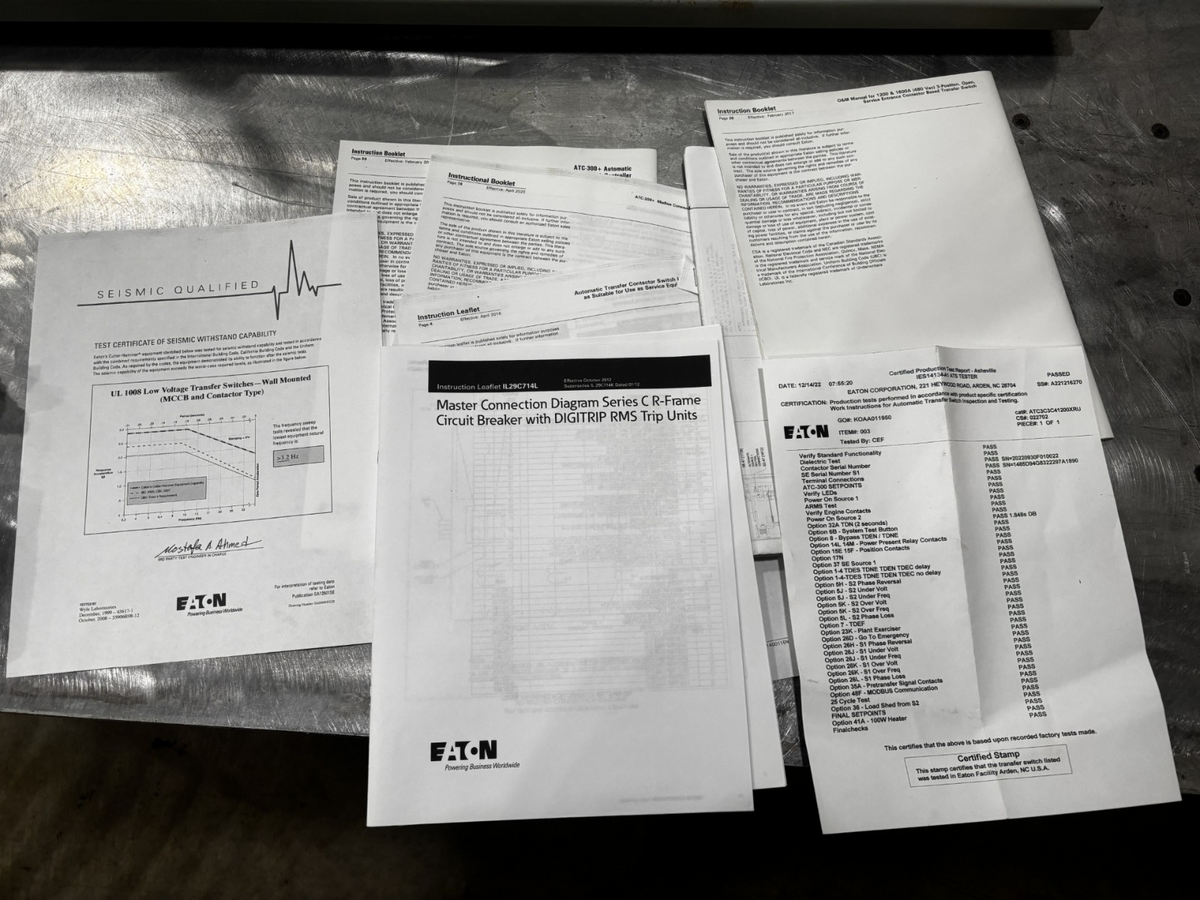

Factory documentation/manuals shown in the photographs are included.
